# Creating FDTD animations#

Animations are often created from FDTD simulations to provide a more intuitive understanding of the physical phenomena being modeled. These animations can visualize the evolution of the field distribution over time, showing wave propagation, interactions, and other dynamic effects that static images cannot adequately depict. This can help researchers and engineers better understand the results of their simulations, identify anomalies, and develop or refine their models. Additionally, these animations can serve as effective educational and communication tools, making complex concepts more accessible to non-experts.

This tutorial demonstrates how to create an animation in a waveguide taper simulation and display the animation directly in a Jupyter Notebook.

We also provide a conprehensive list of other tutorials such as how to define boundary conditions, how to defining spatially-varying sources and structures, how to model dispersive materials, and how to visualize simulation setups and results.

If you are new to the finite-difference time-domain (FDTD) method, we highly recommend going through our FDTD101 tutorials.

:

import numpy as np
import matplotlib.pyplot as plt
import matplotlib.animation as animation
from IPython.display import HTML

import tidy3d as td
import tidy3d.web as web



## Simulation Setup#

For this demo, we simply simulate a linear waveguide taper. The simulation setup is directly borrowed from the waveguide size converter case study notebook.

:

lda0 = 1.55  # central wavelength
freq0 = td.C_0 / lda0  # central frequency
ldas = np.linspace(1.5, 1.6, 101)  # wavelength range
freqs = td.C_0 / ldas  # frequency range
fwidth = 0.5 * (np.max(freqs) - np.min(freqs))  # width of the frequency distribution


:

n_si = 3.48  # silicon refractive index
si = td.Medium(permittivity=n_si**2)

n_sio2 = 1.44  # silicon oxide refractive index
sio2 = td.Medium(permittivity=n_sio2**2)


:

w_in = 5  # input waveguide width
w_out = 0.45  # output waveguide width
t_wg = 0.11  # waveguide thickness
L_t = 10
inf_eff = 1e3  # effective infinity of the model

# define the substrate structure
sub = td.Structure(
geometry=td.Box.from_bounds(
rmin=(-inf_eff, -inf_eff, -inf_eff), rmax=(inf_eff, inf_eff, 0)
),
medium=sio2,
)

# vertices of the taper
vertices = [
[-inf_eff, w_in / 2],
[0, w_in / 2],
[L_t, w_out / 2],
[inf_eff, w_out / 2],
[inf_eff, -w_out / 2],
[L_t, -w_out / 2],
[0, -w_in / 2],
[-inf_eff, -w_in / 2],
]

# construct the taper structure using a PolySlab
linear_taper = td.Structure(
geometry=td.PolySlab(vertices=vertices, axis=2, slab_bounds=(0, t_wg)),
medium=si,
)



To create an animation, we need to capture the frames at different time instances of the simulation. This can be done by using a FieldTimeMonitor. Usually a FDTD simulation contains a large number of time steps and grid points. Recording the field at every time step and grid point will result in a large dataset. For the purpose of making animations, this is usually unnecessary. In this particular case, we will record one frame every 100 time steps, which is realized by setting interval=100 in the FieldTimeMonitor. Similarly, we set interval_space=(3,3,1) such that the field is recorded every 3 grid points. To further reduce dataset size, we will only be recording the z-component of the magnetic field.

:

run_time = 5e-13  # run time of the simulation

# define a mode source
mode_source = td.ModeSource(
center=(-lda0 / 2, 0, t_wg / 2),
size=(0, 1.2 * w_in, 6 * t_wg),
source_time=td.GaussianPulse(freq0=freq0, fwidth=fwidth),
direction="+",
mode_spec=td.ModeSpec(num_modes=1, target_neff=n_si),
mode_index=0,
)

# define a field time monitor to record animation frames
monitor = td.FieldTimeMonitor(
center=(0, 0, t_wg/2),
size=(td.inf, td.inf, 0),
fields=['Hz'],
start=0,
stop=run_time,
interval=100,
interval_space=(3,3,1),
name='movie_monitor'
)

# define simulation domain size
Lx = L_t + 2 * lda0
Ly = w_in + 2 * lda0
Lz = t_wg + 1.5 * lda0
sim_size = (Lx, Ly, Lz)

# define simulation
sim = td.Simulation(
center=(L_t / 2, 0, t_wg),
size=sim_size,
grid_spec=td.GridSpec.auto(min_steps_per_wvl=15, wavelength=lda0),
structures=[linear_taper, sub],
sources=[mode_source],
monitors=[monitor],
run_time=run_time,
boundary_spec=td.BoundarySpec.all_sides(
boundary=td.PML()
),  # pml is used in all boundaries
symmetry=(0, -1, 0),
)  # a pec symmetry plane at y=0 can be used to reduce the grid points of the simulation

[10:05:08] WARNING: Default value for the field monitor           monitor.py:261
'colocate' setting has changed to 'True' in Tidy3D
2.4.0. All field components will be colocated to the
grid boundaries. Set to 'False' to get the raw fields


Visualize the simulation.

:

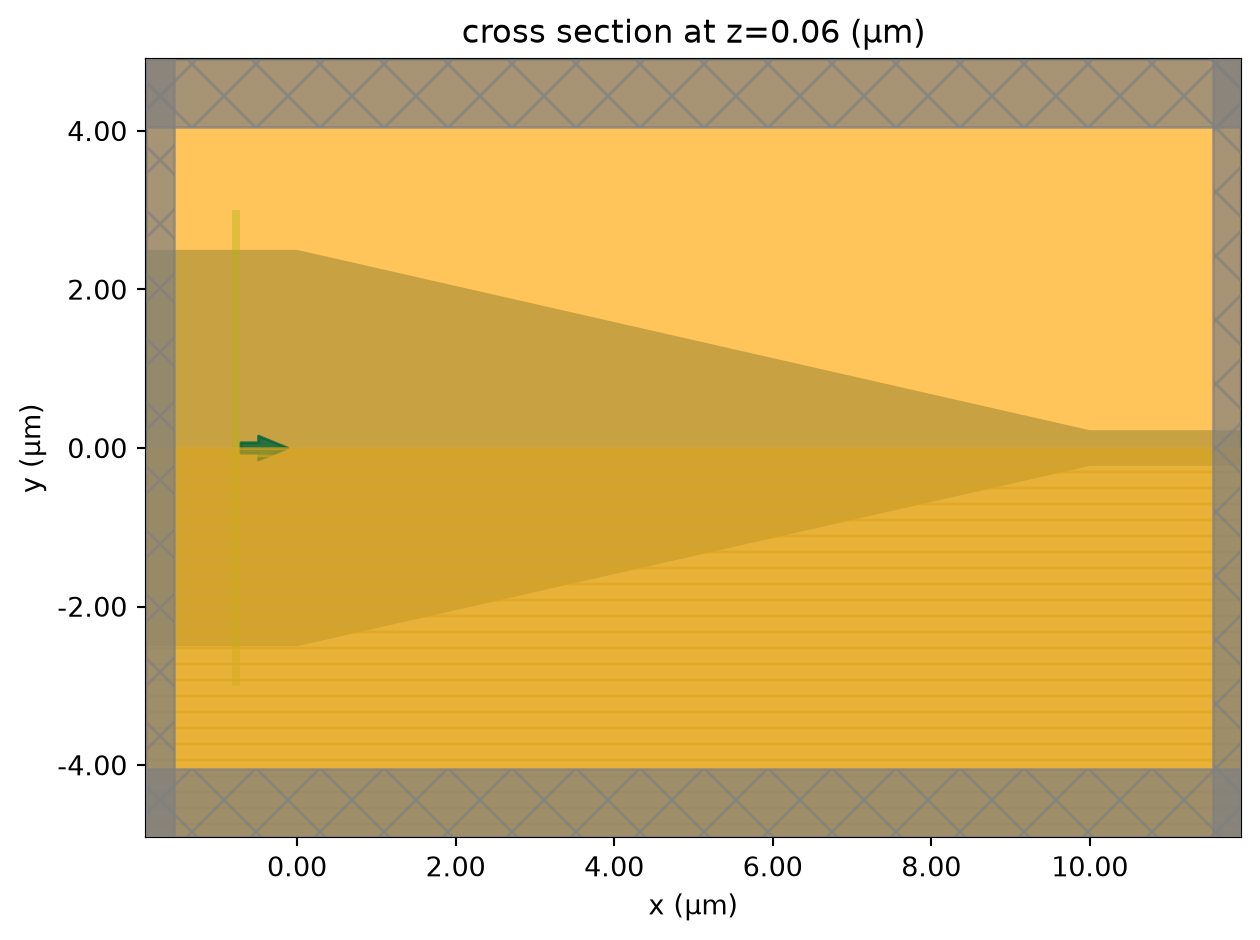

sim.plot(z=t_wg/2)
plt.show() Submit the simulation.

:

sim_data = web.run(simulation=sim, task_name="taper", path="data/simulation_data.hdf5")

           Created task 'taper' with task_id                       webapi.py:188
'fdve-8aa4d764-5d7d-4d1e-bc01-3ecde39a647bv1'.

           View task using web UI at                               webapi.py:190
8aa4d764-5d7d-4d1e-bc01-3ecde39a647bv1'.

[10:05:14] status = queued                                         webapi.py:361

[10:05:23] status = preprocess                                     webapi.py:355

[10:05:27] Maximum FlexCredit cost: 0.025. Use                     webapi.py:341
'web.real_cost(task_id)' to get the billed FlexCredit
cost after a simulation run.

           starting up solver                                      webapi.py:377

           running solver                                          webapi.py:386

           To cancel the simulation, use 'web.abort(task_id)' or   webapi.py:387
web UI. Terminating the Python script will not stop the
job running on the cloud.

[10:05:40] early shutoff detected, exiting.                        webapi.py:404

           status = postprocess                                    webapi.py:419

[10:05:44] status = success                                        webapi.py:426

[10:05:46] loading SimulationData from data/simulation_data.hdf5   webapi.py:590


## Creating Animation#

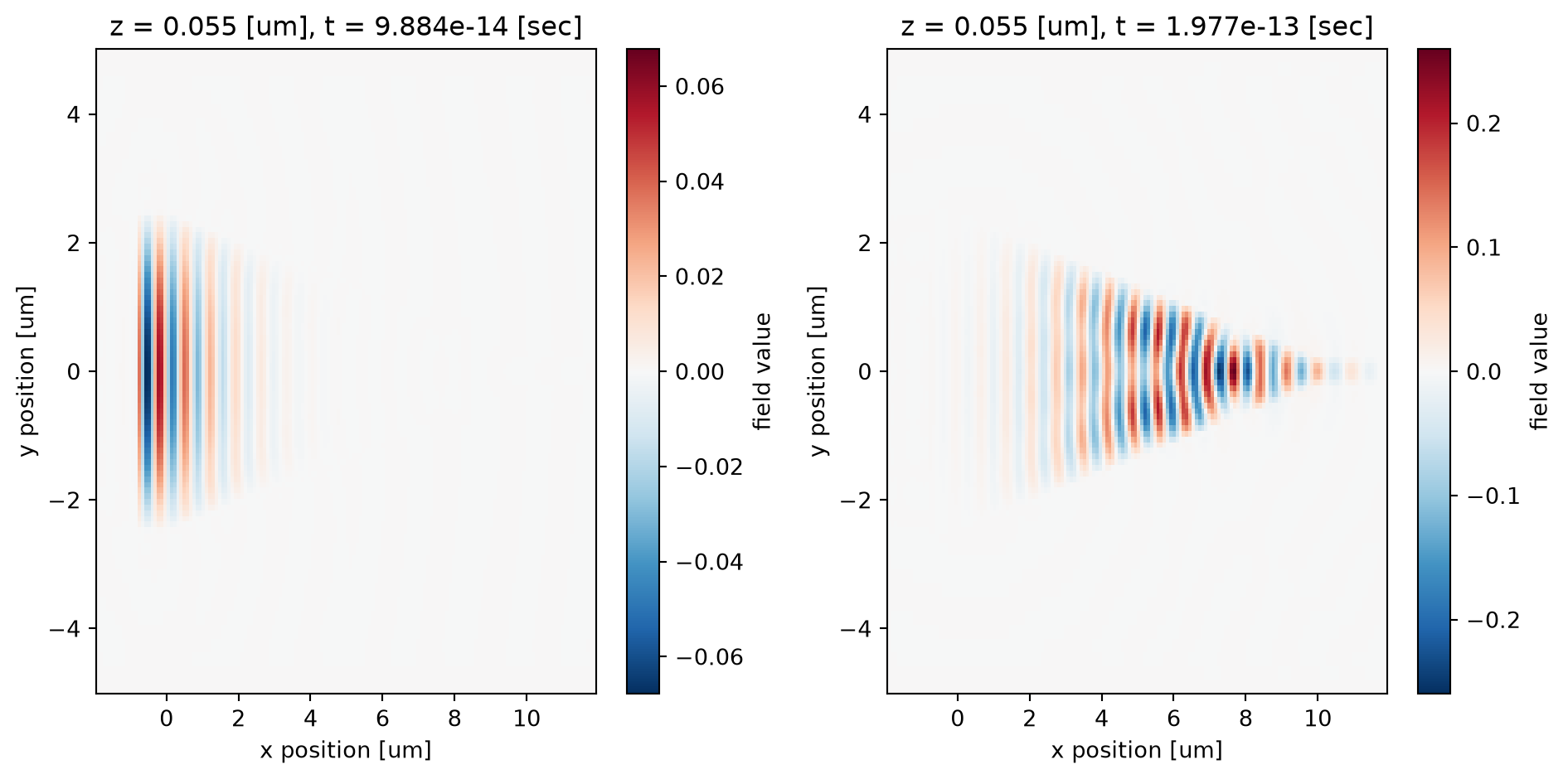

Before creating the animation, we can inspect the field distribution at a few time instances.

:

fig, ax = plt.subplots(1,2, figsize=(10,5), tight_layout=True)

sim_data['movie_monitor'].Hz.sel(t=1e-13, method='nearest').plot(x='x', y='y', ax=ax)

sim_data['movie_monitor'].Hz.sel(t=2e-13, method='nearest').plot(x='x', y='y', ax=ax)

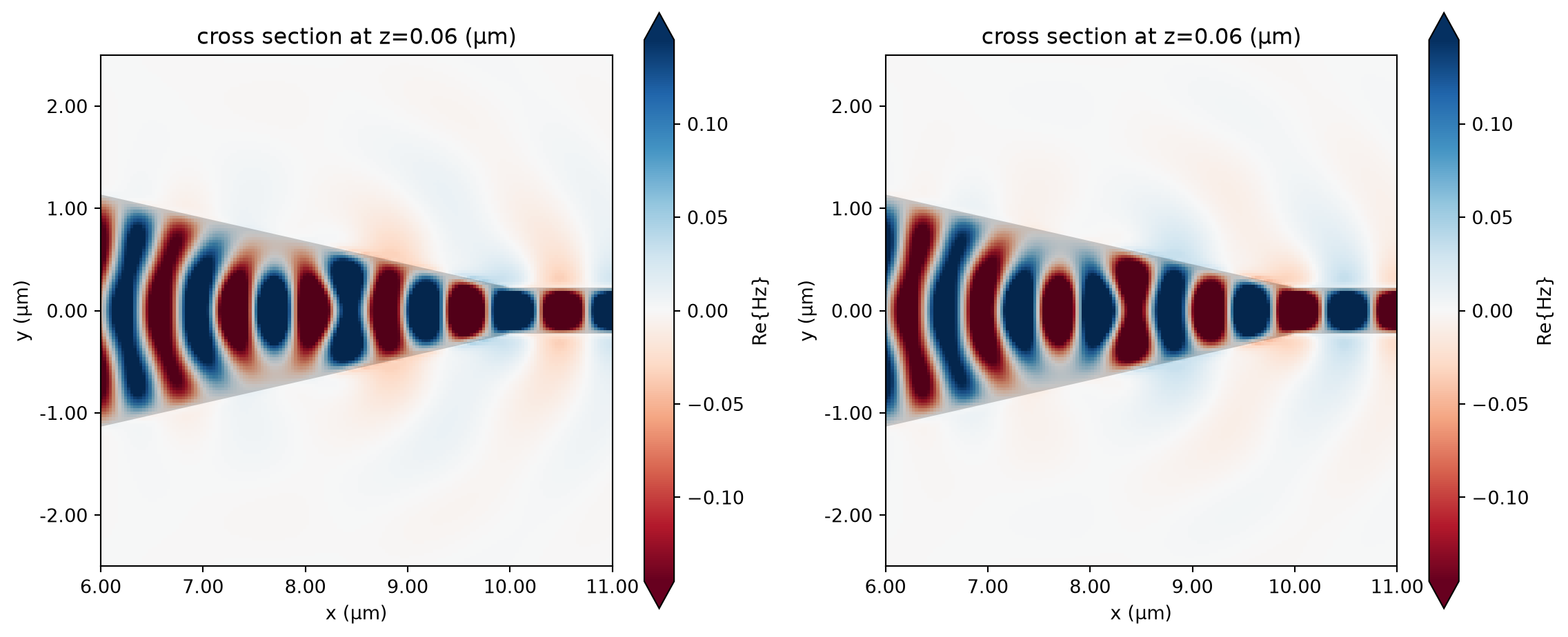

plt.show() To create an animation, we need to define a function that plots each frame. Then we use matplotlib’s FuncAnimation to create the animation. For this particular animation, we use 50 frames. For detail on FuncAnimation, please reference the documentation.

After the animation is created, we can display it directly in the notebook environment by using HTML. Here we see the incident pulse from the wider waveguide is squeezed into the narrower waveguide through the taper. Some field is reflected back or leaked out of the waveguide, leading to some insertion loss, which can be minimized by using a longer taper.

:

t_end = sim_data['movie_monitor'].Hz.coords['t'][-1]  # end time of the animation
frames = 50  # number of frames

fig, ax = plt.subplots()

def animate(i):
t = t_end*i/frames # time at each frame
sim_data['movie_monitor'].Hz.sel(t=t, method='nearest').plot(x='x', y='y', ax=ax, vmin=-0.1, vmax=0.1, add_colorbar=False, cmap='seismic')

# create animation
ani = animation.FuncAnimation(fig, animate, frames=frames);
plt.close()

# display the animation
HTML(ani.to_jshtml())


:
