Using the waveguide plugin to analyze waveguide modes#

This notebook demosntrates the use of the waveguide plugin to quickly set-up waveguide simulations from usual geometries.

[1]:
import tidy3d as td
import tidy3d.web as web
from tidy3d.plugins import waveguide
from tidy3d.plugins.mode.web import run as run_mode_solver

import numpy as np
from matplotlib import pyplot
[2]:
# Media used in the examples
si = td.material_library["cSi"]["Li1993_293K"]
sio2 = td.material_library["SiO2"]["Horiba"]

Strip and Rib Geometries#

The class RectangularDielectric allows the creation of a variety of dielectric waveguide geometries common in integrated photonics.

First we take a look at a strip silicon waveguide and plot the fundamental quasi-TE and quasi-TM modes, along with their effective indices:

[3]:
strip = waveguide.RectangularDielectric(
    wavelength=1.55,
    core_width=0.5,
    core_thickness=0.22,
    core_medium=si,
    clad_medium=sio2,
    mode_spec=td.ModeSpec(num_modes=2, group_index_step=True),
)

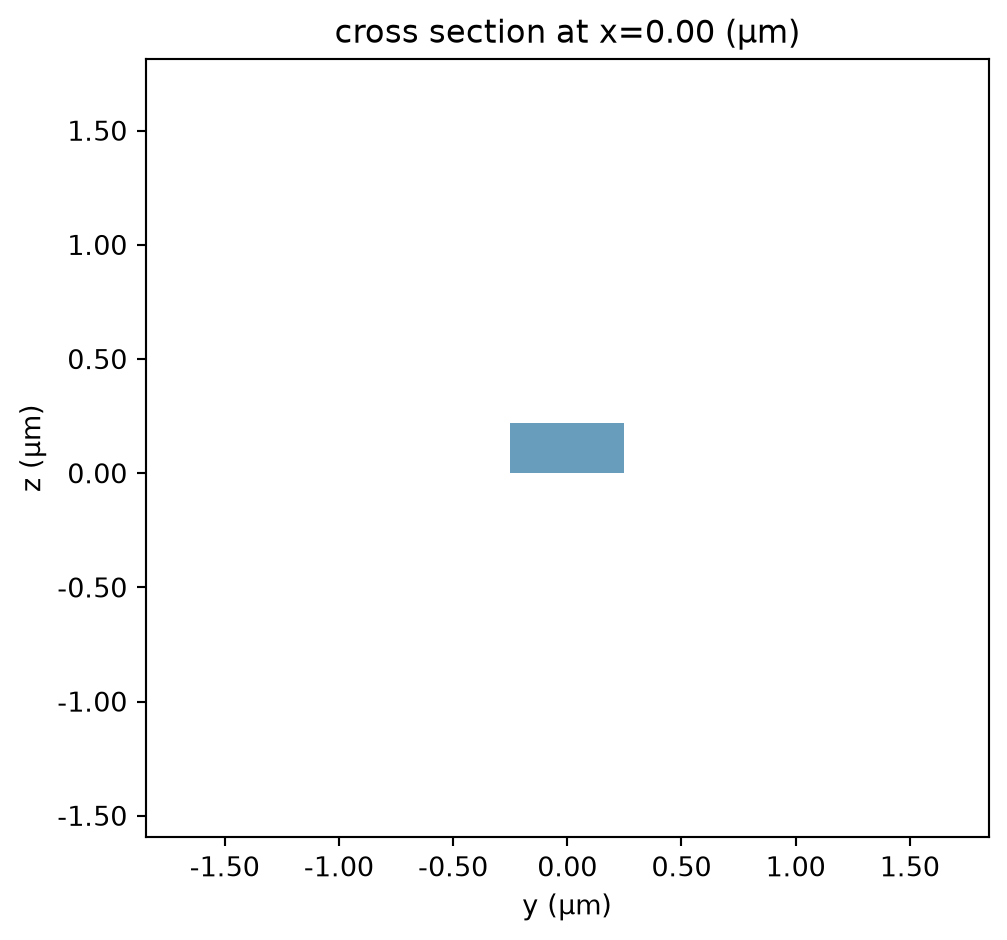

# Take a look at the waveguide cross-section
_ = strip.plot_structures(x=0)
../_images/notebooks_WaveguidePluginDemonstration_5_0.png
[4]:
strip.plot_field("Ex", mode_index=0)
../_images/notebooks_WaveguidePluginDemonstration_6_0.png
[5]:
# Mode data
print(f"Effective indices: {strip.n_eff.values}")
print(f"Effective mode areas (µm²): {strip.mode_area.values}")
print(f"Group index: {strip.n_group.values}")

fig, ax = pyplot.subplots(1, 2, figsize=(10, 4), tight_layout=True)

# quasi-TE mode
strip.plot_field("Ey", mode_index=0, ax=ax[0])

# quasi-TM mode
strip.plot_field("Ez", mode_index=1, ax=ax[1])
Effective indices: [[2.512198  1.8813808]]
Effective mode areas (µm²): [[0.18970019 0.32351863]]
Group index: [[4.1976504 4.161723 ]]
../_images/notebooks_WaveguidePluginDemonstration_7_1.png

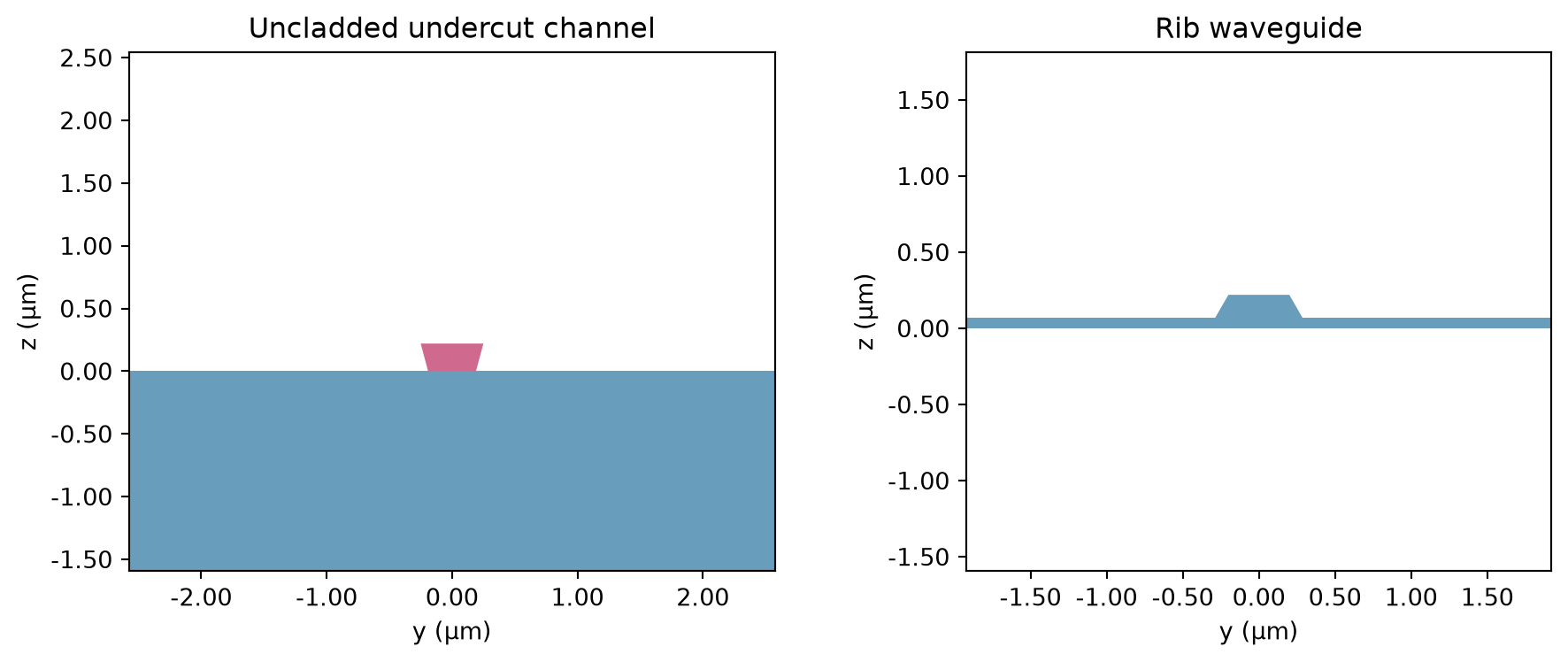

It is possible to define waveguides with different substrate and cladding, angled sidewalls, and rib geometry:

[6]:
fig, ax = pyplot.subplots(1, 2, figsize=(10, 4), tight_layout=True)

undercut = strip = waveguide.RectangularDielectric(
    wavelength=1.55,
    core_width=0.5,
    core_thickness=0.22,
    sidewall_angle=-np.pi / 12,
    core_medium=si,
    clad_medium=td.Medium(permittivity=1.0),
    box_medium=sio2,
)

undercut.plot_structures(x=0, ax=ax[0])
_ = ax[0].set_title("Uncladded undercut channel")

rib = strip = waveguide.RectangularDielectric(
    wavelength=1.55,
    core_width=0.4,
    core_thickness=0.22,
    slab_thickness=0.07,
    sidewall_angle=np.pi / 6,
    core_medium=si,
    clad_medium=sio2,
)

rib.plot_structures(x=0, ax=ax[1])
_ = ax[1].set_title("Rib waveguide")
../_images/notebooks_WaveguidePluginDemonstration_9_0.png

FDTD Simulation#

The waveguide structures can be used in Tidy3D simulations as conventinal structures. The origin, lenght, and orientation of the waveguides can be selected at creation to fit the most common simulation configurations.

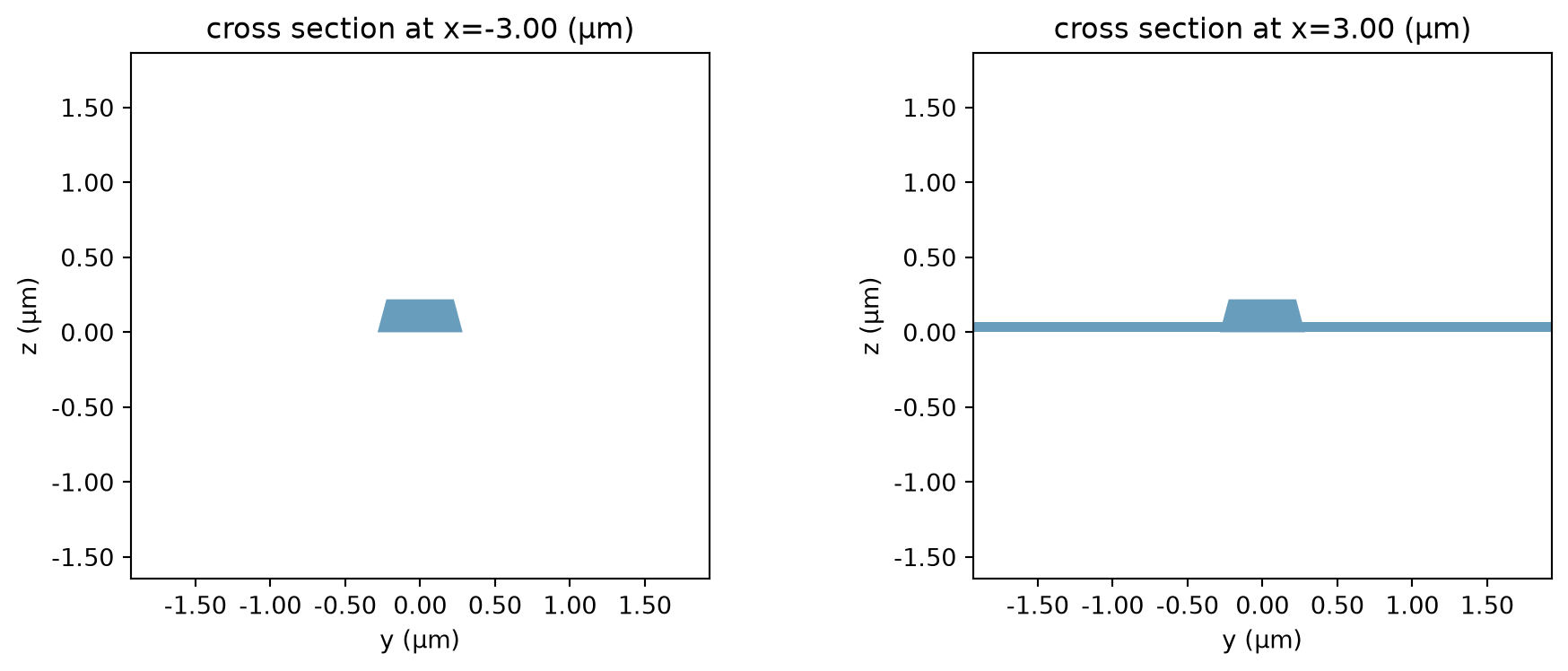

In the following example, we simulate the effect of directly coupling strip and rib geometries without any tapering and compare the result with the modal overlap calclulation between the two modes.

[7]:
length = 6.0

strip, rib = [
    waveguide.RectangularDielectric(
        wavelength=np.linspace(1.5, 1.6, 11),
        core_width=0.45,
        core_thickness=0.22,
        core_medium=si,
        clad_medium=sio2,
        slab_thickness=0.07 if slab else 0,
        length=length,
        origin=(0.5 * length if slab else -0.5 * length, 0, 0),
        sidewall_angle=np.pi / 12,
    ) for slab in (False, True)
]

fig, ax = pyplot.subplots(1, 2, figsize=(10, 4), tight_layout=True)
strip.plot_structures(x=-0.5 * length, ax=ax[0])
rib.plot_structures(x=0.5 * length, ax=ax[1])

pyplot.show()
../_images/notebooks_WaveguidePluginDemonstration_11_0.png
[8]:
# Calculate the mode overlap between waveguides
overlap = strip.mode_solver.data.outer_dot(rib.mode_solver.data, False)

# Show the overlap at the central frequency
f = strip.mode_solver.freqs[strip.wavelength.size // 2]

fig, ax = pyplot.subplots(1, 1, figsize=(3, 3), tight_layout=True)

ax.matshow(np.abs(overlap.sel(f=f).values), cmap="gray")
ax.grid(False)

for mi0 in overlap.coords["mode_index_0"]:
    for mi1 in overlap.coords["mode_index_1"]:
        ovl_dB = 20 * np.log10(np.abs(overlap.sel(f=f, mode_index_0=mi0, mode_index_1=mi1).item()))
        ax.text(mi0, mi1, f"{ovl_dB:.2g} dB", ha="center", va="center", color="tab:red")

ax.set_ylabel("Rib mode index")
ax.set_xlabel("Strip mode index")
ax.xaxis.set_label_position('top')
../_images/notebooks_WaveguidePluginDemonstration_12_0.png
[9]:
freqs = strip.mode_solver.freqs
source_time = td.GaussianPulse(freq0=0.5 * (freqs[0] + freqs[-1]), fwidth=abs(freqs[0] - freqs[-1]))

src_gap = 0.5
mode_src = td.ModeSource(
    center=(-0.5 * length - src_gap, 0, 0),
    size=(0, td.inf, td.inf),
    source_time=source_time,
    num_freqs=5,
    direction="+",
    mode_spec=strip.mode_spec,
    mode_index=0,
)

strip_mnt = strip.mode_solver.to_monitor(freqs=freqs, name="strip")

rib_mnt = rib.mode_solver.to_monitor(freqs=freqs, name="rib")

field_mnt = td.FieldMonitor(
    center=(0, 0, 0.5 * strip.core_thickness),
    size=(td.inf, td.inf, 0),
    freqs=freqs,
    name="field",
)

sim_size = (length + 2 * src_gap, strip.width, strip.height)
sim_center = (0, 0, strip.mode_solver.plane.center[2])

sim = td.Simulation(
    size=sim_size,
    center=sim_center,
    grid_spec=td.GridSpec.auto(min_steps_per_wvl=20),
    structures=strip.structures + rib.structures,
    sources=[mode_src],
    monitors=[strip_mnt, rib_mnt, field_mnt],
    run_time=1e-12,
    boundary_spec=td.BoundarySpec.all_sides(boundary=td.PML()),
)

fig, ax = pyplot.subplots(2, 2, figsize=(11, 10), tight_layout=True)
sim.plot(z=0.5 * strip.core_thickness, ax=ax[0, 0])
sim.plot(z=0.5 * rib.slab_thickness, ax=ax[0, 1])
sim.plot(x=-0.5 * length, ax=ax[1, 0])
sim.plot(x=0.5 * length, ax=ax[1, 1])
pyplot.show()
[18:33:39] WARNING: Default value for the field monitor           monitor.py:261
           'colocate' setting has changed to 'True' in Tidy3D
           2.4.0. All field components will be colocated to the
           grid boundaries. Set to 'False' to get the raw fields
           on the Yee grid instead.
../_images/notebooks_WaveguidePluginDemonstration_13_1.png
[10]:
# Run the simulation and download the resulting data
data = web.run(sim, task_name="untapered", verbose=True)
[18:33:40] Created task 'untapered' with task_id                   webapi.py:188
           'fdve-9485cdbf-fdbe-47dd-95db-c770e1518b9fv1'.
[18:33:41] status = queued                                         webapi.py:361
[18:33:50] status = preprocess                                     webapi.py:355
[18:33:56] Maximum FlexCredit cost: 0.054. Use                     webapi.py:341
           'web.real_cost(task_id)' to get the billed FlexCredit
           cost after a simulation run.
           starting up solver                                      webapi.py:377
           running solver                                          webapi.py:386
           To cancel the simulation, use 'web.abort(task_id)' or   webapi.py:387
           'web.delete(task_id)' or abort/delete the task in the
           web UI. Terminating the Python script will not stop the
           job running on the cloud.
[18:34:12] early shutoff detected, exiting.                        webapi.py:404
           status = postprocess                                    webapi.py:419
[18:34:36] status = success                                        webapi.py:426
[18:34:39] loading SimulationData from simulation_data.hdf5        webapi.py:590
[11]:

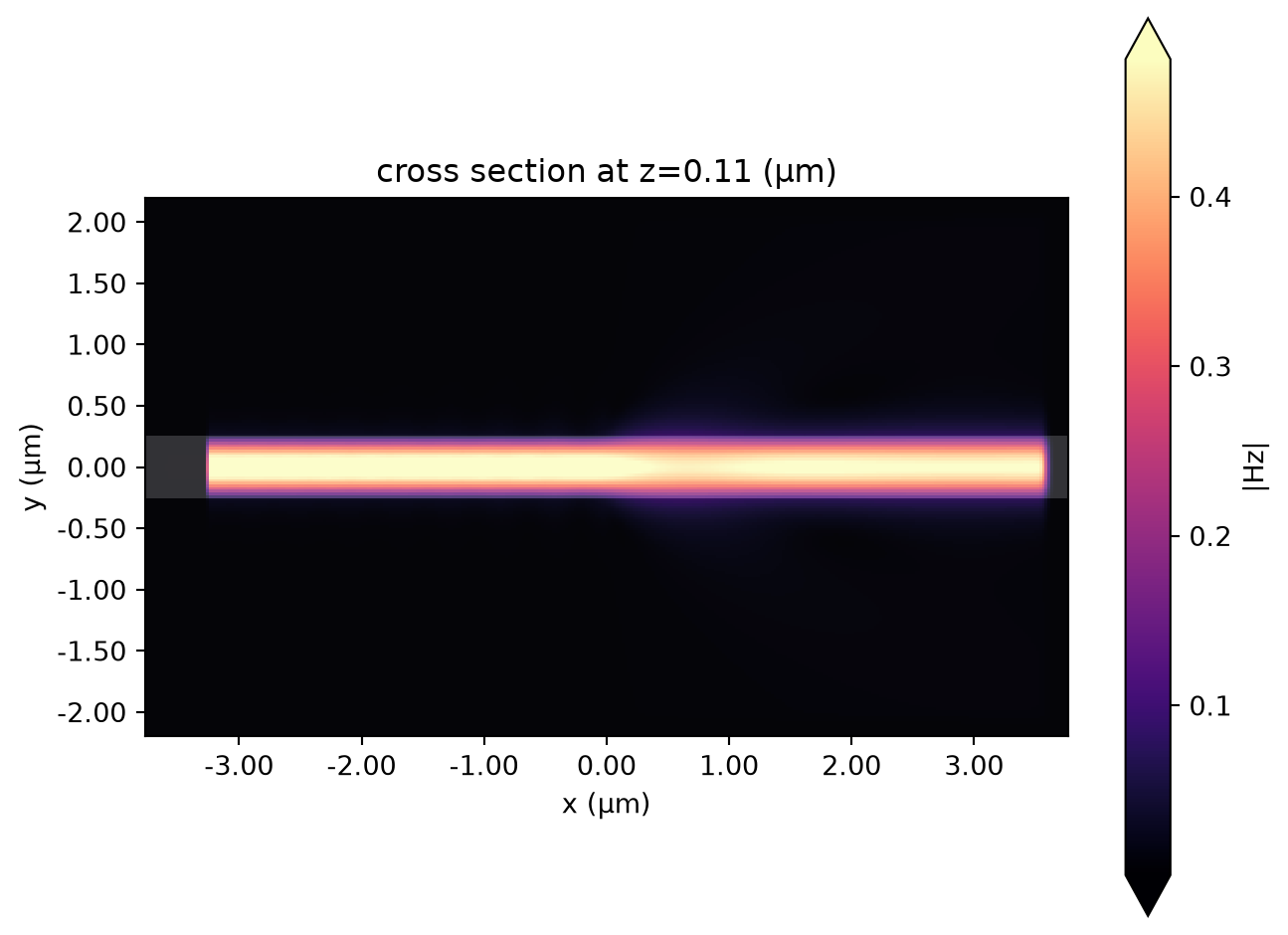

_ = data.plot_field("field", "Hz", val="abs", f=f)
../_images/notebooks_WaveguidePluginDemonstration_15_0.png

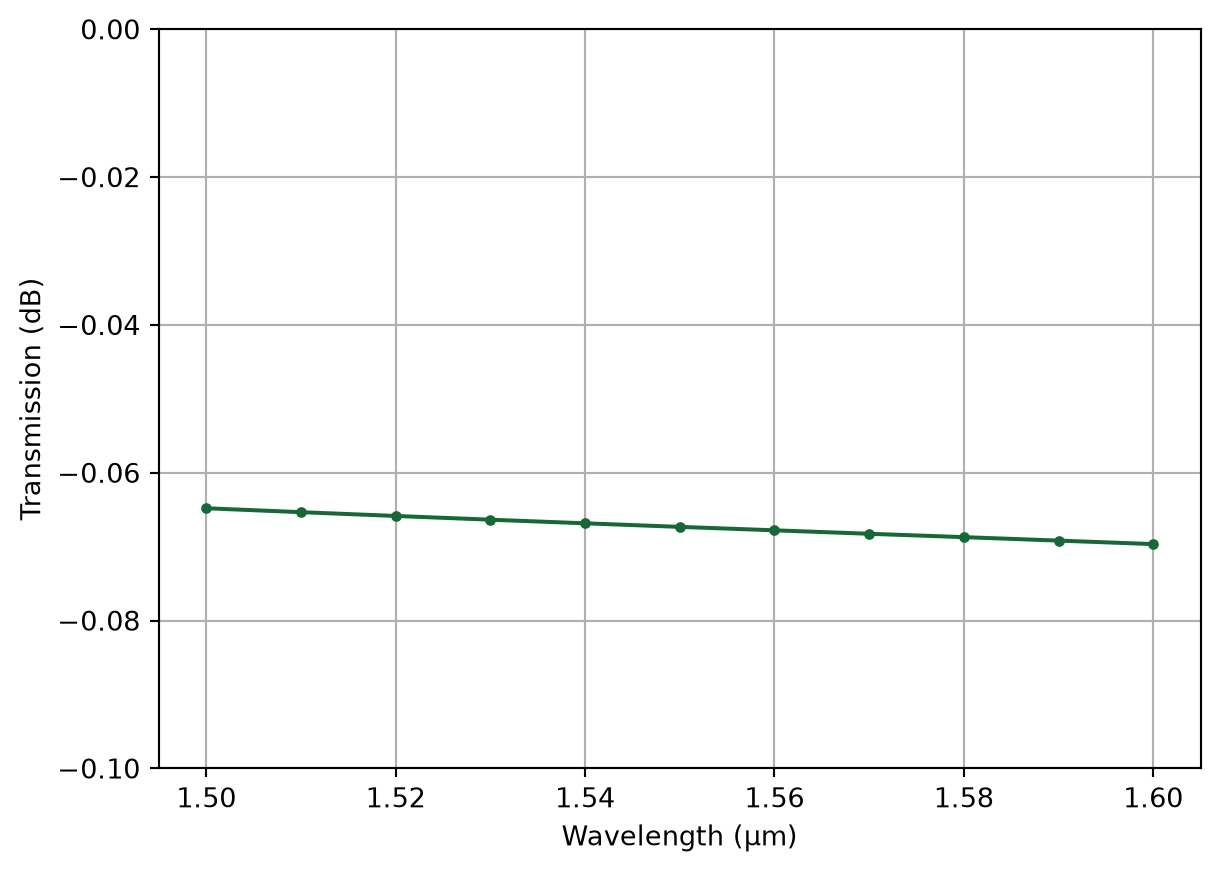

Looking at the power transmisison, we see almost the same result as obtained from the overlap calculation:

[12]:
rib_transmission = data["rib"].amps.sel(direction="+", mode_index=0)
fig, ax = pyplot.subplots(1, 1)
ax.plot(rib.wavelength, 20 * np.log10(np.abs(rib_transmission.values)), '.-')
ax.set(
    xlabel="Wavelength (μm)",
    ylabel="Transmission (dB)",
    ylim=(-0.1, 0),
)
ax.grid()
../_images/notebooks_WaveguidePluginDemonstration_17_0.png

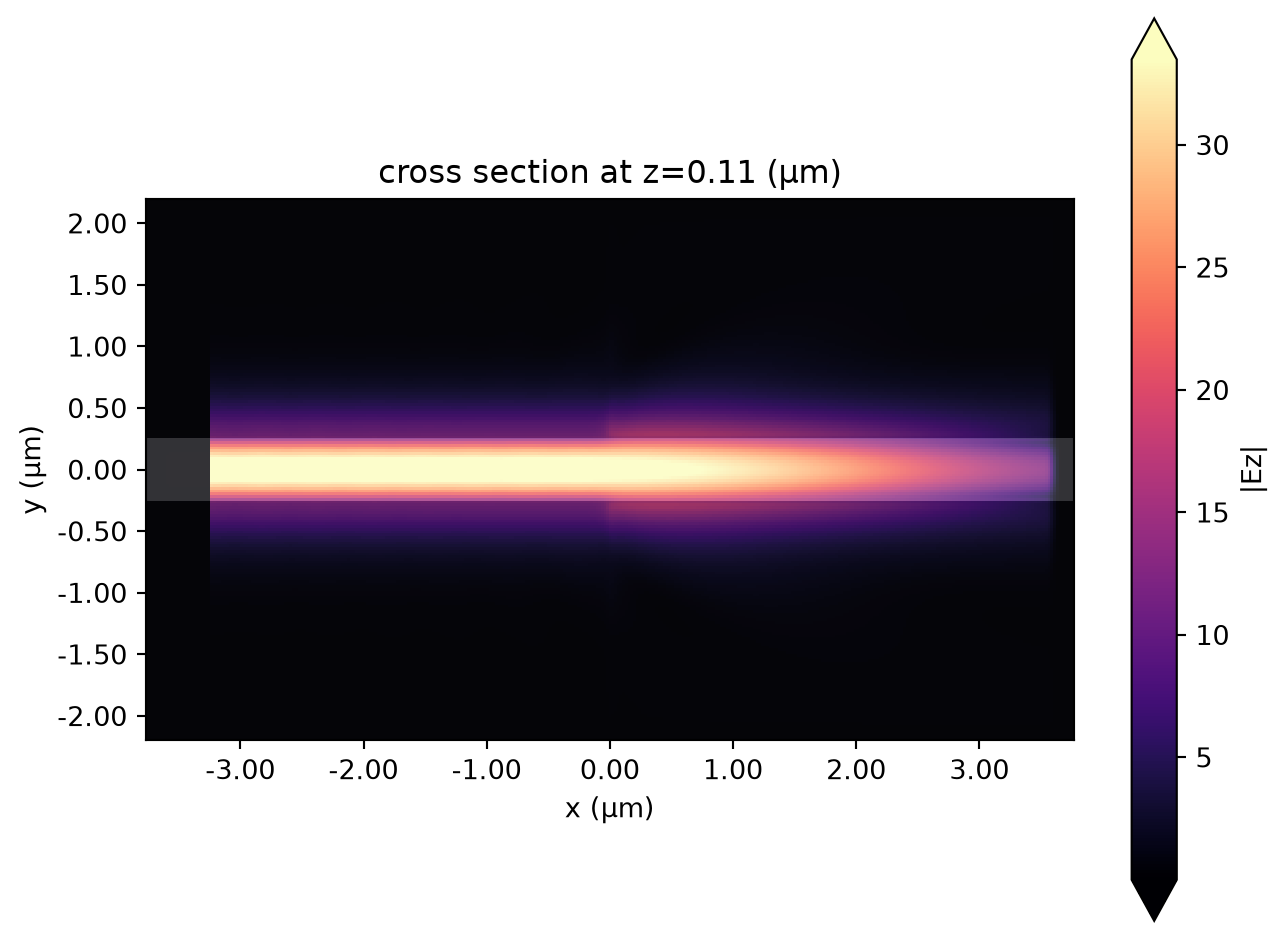

We can look at the first quasi-TM mode as well:

[13]:
# mode_src_tm = mode_src.copy(update={"mode_index": 1})
mode_src_tm = td.ModeSource(
    center=(-0.5 * length - src_gap, 0, 0),
    size=(0, td.inf, td.inf),
    source_time=source_time,
    num_freqs=5,
    direction="+",
    mode_spec=strip.mode_spec,
    mode_index=1,
)

sim_tm = sim.copy(update={"sources": [mode_src_tm]})
data_tm = td.web.run(sim_tm, task_name="untapered_tm", verbose=True)
_ = data_tm.plot_field("field", "Ez", val="abs", f=f)
[18:34:41] Created task 'untapered_tm' with task_id                webapi.py:188
           'fdve-60ff0c2b-a371-47e7-a3ef-43343d74b0c9v1'.
[18:34:42] status = queued                                         webapi.py:361
[18:34:56] status = preprocess                                     webapi.py:355
[18:35:02] Maximum FlexCredit cost: 0.054. Use                     webapi.py:341
           'web.real_cost(task_id)' to get the billed FlexCredit
           cost after a simulation run.
           starting up solver                                      webapi.py:377
           running solver                                          webapi.py:386
           To cancel the simulation, use 'web.abort(task_id)' or   webapi.py:387
           'web.delete(task_id)' or abort/delete the task in the
           web UI. Terminating the Python script will not stop the
           job running on the cloud.
[18:35:18] early shutoff detected, exiting.                        webapi.py:404
           status = postprocess                                    webapi.py:419
[18:35:47] status = success                                        webapi.py:426
[18:35:54] loading SimulationData from simulation_data.hdf5        webapi.py:590
../_images/notebooks_WaveguidePluginDemonstration_19_25.png

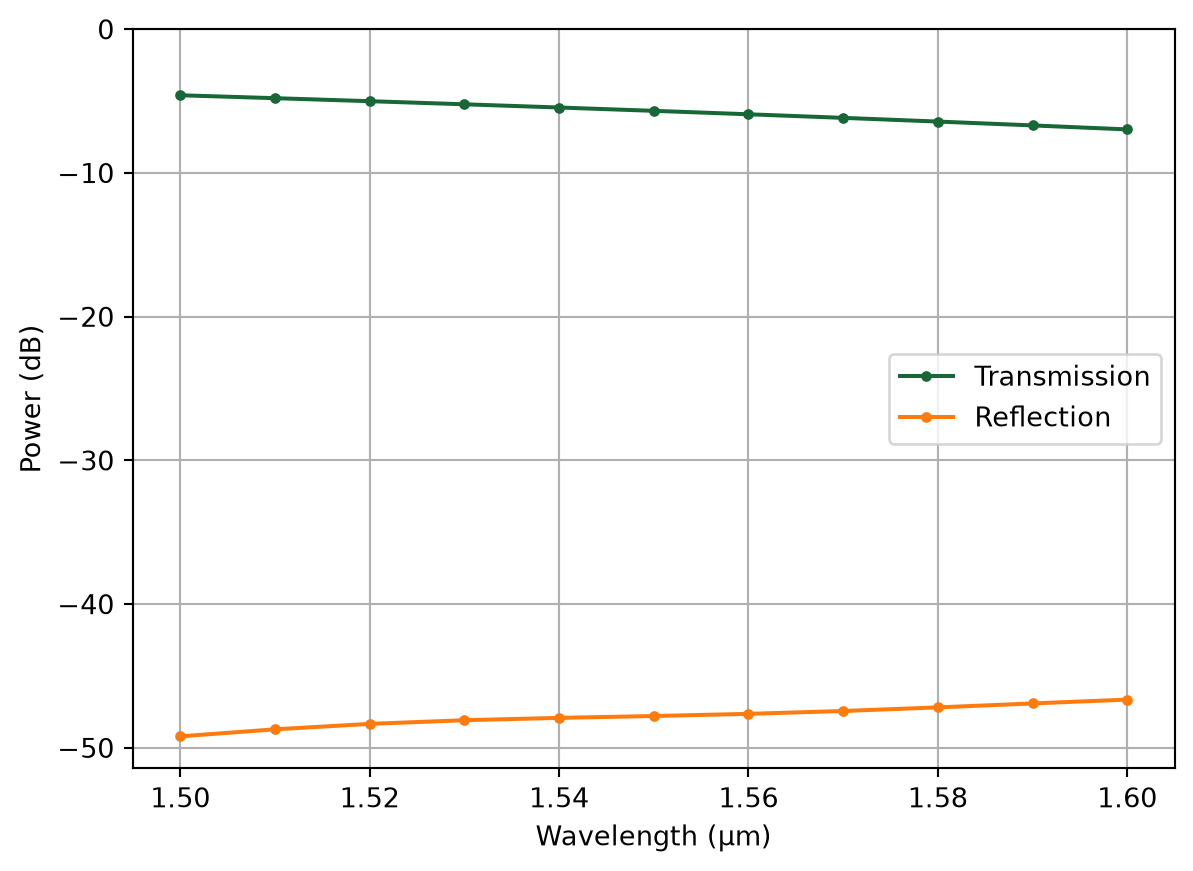

[14]:
rib_transmission = data_tm["rib"].amps.sel(direction="+", mode_index=1)
strip_reflection = data_tm["strip"].amps.sel(direction="-", mode_index=1)

fig, ax = pyplot.subplots(1, 1)
ax.plot(rib.wavelength, 20 * np.log10(np.abs(rib_transmission.values)), '.-', label="Transmission")
ax.plot(rib.wavelength, 20 * np.log10(np.abs(strip_reflection.values)), '.-', label="Reflection")
ax.set(
    xlabel="Wavelength (μm)",
    ylabel="Power (dB)",
    ylim=(None, 0),
)
ax.legend()
ax.grid()
../_images/notebooks_WaveguidePluginDemonstration_20_0.png

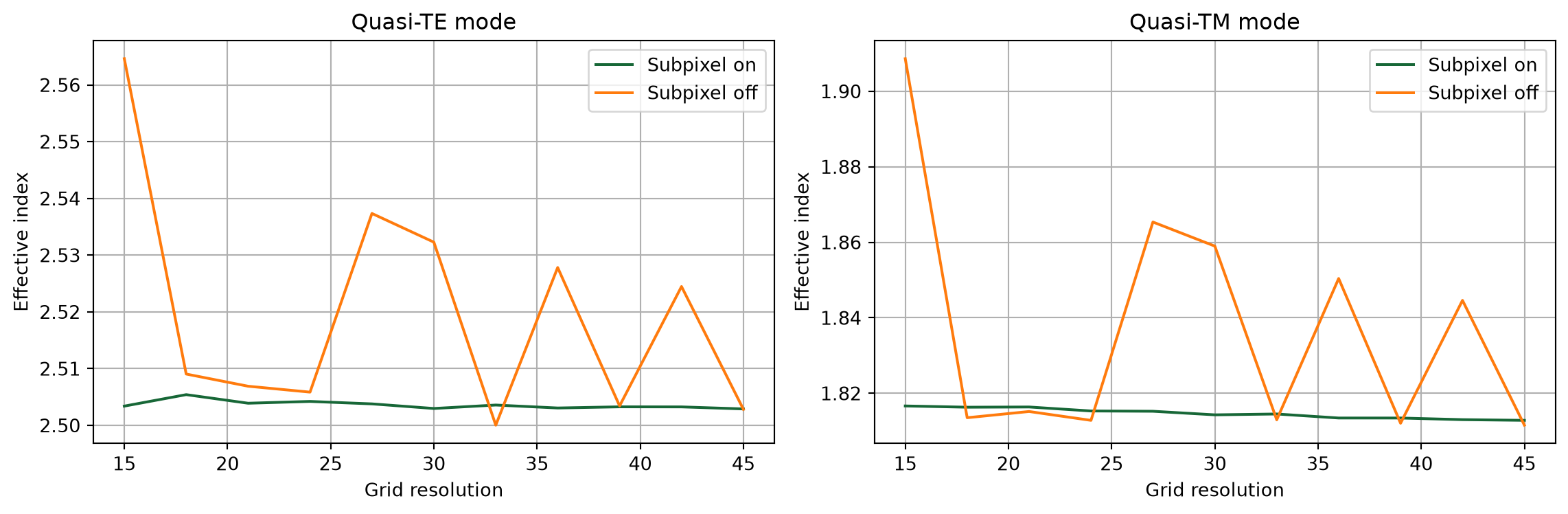

A Note about Accuracy#

By default, the waveguide class uses grid_resolution = 15. This value is enough for quick mode solving with effective indices relatively accurate (usually within 10% of the best estimate). If higher accuracy is desired, grid_resolution can be increased to higher values, for example, to improve the calculation of derived values (group index, coupling length, mode losses, etc.), but for the absolute best results, the server-side mode solver should be prefered.

The function run_mode_solver starts the given mode solver on the server. To access the mode solver from the waveguide plugin, we simply access its mode_solver property, as demonstrated below.

Note that using the server-side mode solver does cost a small amount of FlexCredits.

[15]:
wg_base = waveguide.RectangularDielectric(
    wavelength=1.55,
    core_width=0.5,
    core_thickness=0.22,
    core_medium=si,
    clad_medium=sio2,
    sidewall_angle=np.pi/18,
)

grid_resolution = np.arange(15, 46, 3)
n_eff = ([], [])

for res in grid_resolution:
    print("Solving for resolution =", res, flush=True)
    wg = wg_base.copy(update={"grid_resolution": res})
    n_eff[0].append(wg.n_eff.values)
    wg = wg_base.copy(update={"grid_resolution": res})
    n_eff[1].append(run_mode_solver(wg.mode_solver, verbose=False).n_eff.values)

n_eff = [np.squeeze(n) for n in n_eff]
Solving for resolution = 15
Solving for resolution = 18
Solving for resolution = 21
Solving for resolution = 24
Solving for resolution = 27
Solving for resolution = 30
Solving for resolution = 33
Solving for resolution = 36
Solving for resolution = 39
Solving for resolution = 42
Solving for resolution = 45
[16]:
_, ax = pyplot.subplots(1, 2, tight_layout=True, figsize=(12, 4))

for i in range(2):
    ax[i].plot(grid_resolution, n_eff[0][:, i], label="Local")
    ax[i].plot(grid_resolution, n_eff[1][:, i], label="Server")
    ax[i].legend()
    ax[i].set(xlabel="Grid resolution", ylabel="Effective index")
    ax[i].grid()

ax[0].set_title("Quasi-TE mode")
ax[1].set_title("Quasi-TM mode")
pyplot.show()
../_images/notebooks_WaveguidePluginDemonstration_23_0.png

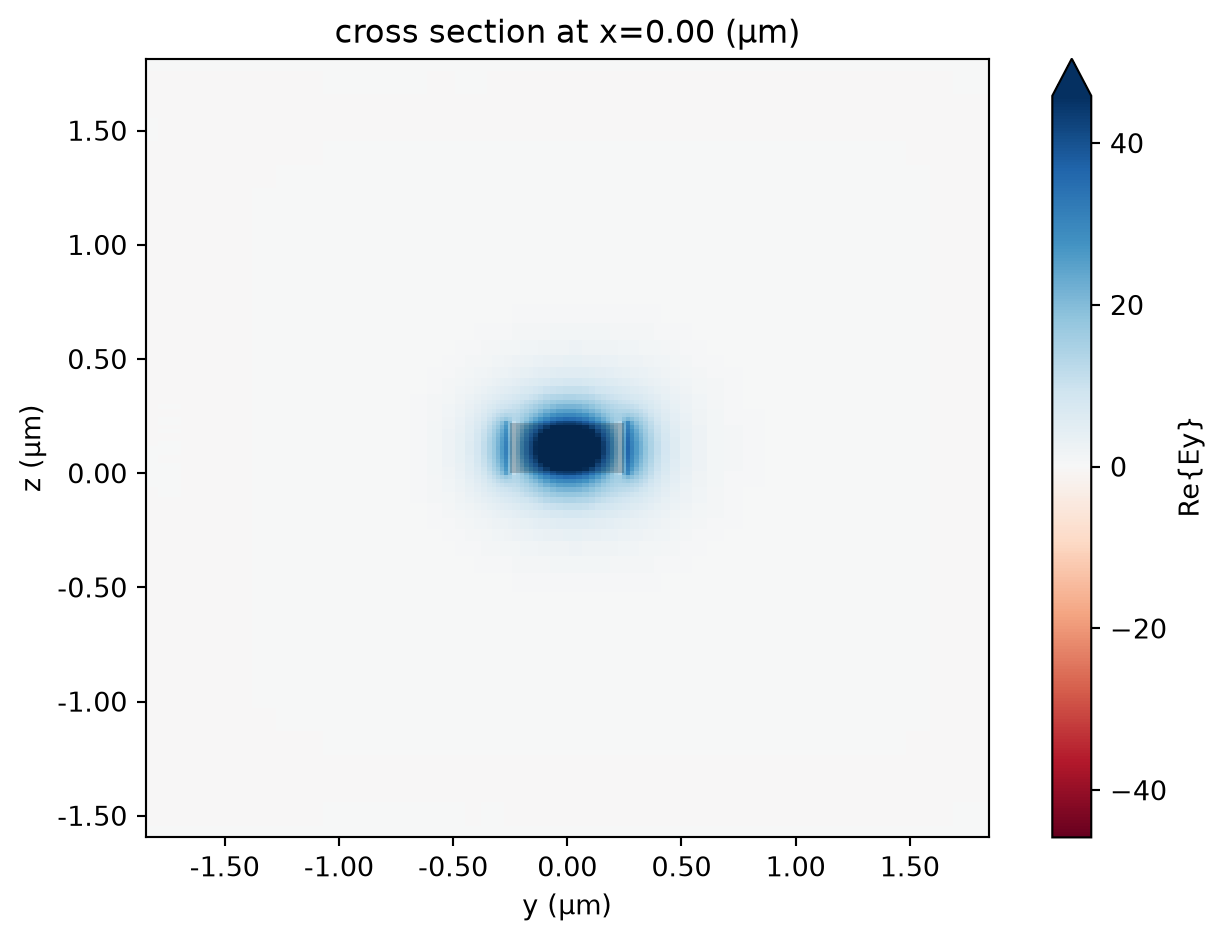

Waveguide Bends#

Waveguide bends can be modeled by setting the appropriate attributes in the mode specification.

[17]:
bend = waveguide.RectangularDielectric(
    wavelength=1.55,
    core_width=0.5,
    core_thickness=0.22,
    core_medium=si,
    clad_medium=sio2,
    mode_spec=td.ModeSpec(
        num_modes=1,
        bend_radius=5,
        bend_axis=1,
        num_pml=(12, 12),
    ),
)

fig, ax = pyplot.subplots(1, 1, tight_layout=True)
bend.plot_field("Ey", mode_index=0, ax=ax)

print(f"Complex effective index: {bend.n_complex.item():g}")
Complex effective index: 2.5151+4.61406e-05j
../_images/notebooks_WaveguidePluginDemonstration_25_1.png

Let’s create a helper function to convert the imaginary part of the complex effective index into loss in dB/cm:

[18]:
def loss_dB_per_cm(n_complex):
    alpha = 2 * np.pi * n_complex.imag * n_complex.f / td.C_0  # µm⁻¹
    return 1e4 * 20 * np.log10(np.e) * alpha  # dB/cm

print(f"Curvature loss: {loss_dB_per_cm(bend.n_complex).item():.1f} dB/cm")
Curvature loss: 16.2 dB/cm

We can put it all together to plot loss as a function of bend radius. To get better accuracy, we’ll use the remote mode solver for this calculation.

[19]:
radii = 5 * 10 ** np.linspace(0, 1, 10)
bend_data = []
for radius in radii:
    print(f"Solving for radius = {radius:.2f}", flush=True)
    bend = waveguide.RectangularDielectric(
        wavelength=1.55,
        core_width=0.5,
        core_thickness=0.22,
        core_medium=si,
        clad_medium=sio2,
        mode_spec=td.ModeSpec(
            num_modes=2,
            bend_radius=radius,
            bend_axis=1,
            num_pml=(12, 12),
        ),
    )
    bend_data.append(run_mode_solver(bend.mode_solver, verbose=False))
Solving for radius = 5.00
Solving for radius = 6.46
Solving for radius = 8.34
Solving for radius = 10.77
Solving for radius = 13.91
Solving for radius = 17.97
Solving for radius = 23.21
Solving for radius = 29.97
Solving for radius = 38.71
Solving for radius = 50.00
[20]:
fig, ax = pyplot.subplots(1, 2, figsize=(11, 4), tight_layout=True)

ax[0].plot(radii, [data.n_eff.isel(mode_index=0).item() for data in bend_data], ".-")
ax[0].set_xlabel("Bend radius (μm)")
ax[0].set_ylabel("Effective index")
ax[0].grid()

ax[1].plot(radii, [loss_dB_per_cm(data.n_complex).isel(mode_index=0).item() for data in bend_data], ".-")
ax[1].set_xlabel("Bend radius (μm)")
ax[1].set_ylabel("Curvature loss (dB/cm)")
ax[1].grid()
../_images/notebooks_WaveguidePluginDemonstration_30_0.png

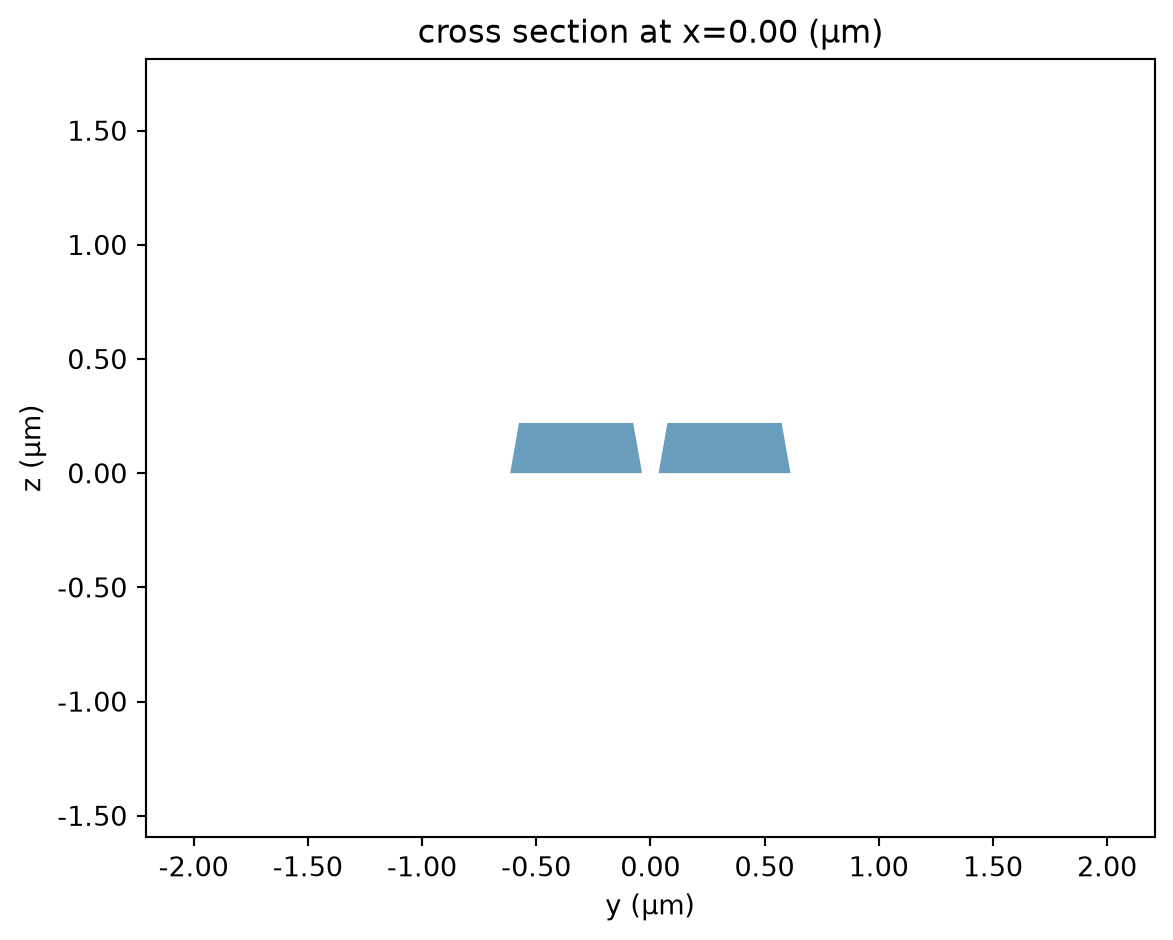

Coupled Waveguides#

The RectangularDielectric class supports modeling coupled waveiguides by passing an array of core widths (and a corresponding array of gaps between adjacent cores).

[21]:
coupled = waveguide.RectangularDielectric(
    wavelength=1.55,
    core_width=(0.5, 0.5),
    core_thickness=0.22,
    core_medium=si,
    clad_medium=sio2,
    gap = 0.15,
    sidewall_angle=np.pi / 18,
    mode_spec=td.ModeSpec(num_modes=4),
)

_ = coupled.plot_structures(x=0)
../_images/notebooks_WaveguidePluginDemonstration_32_0.png

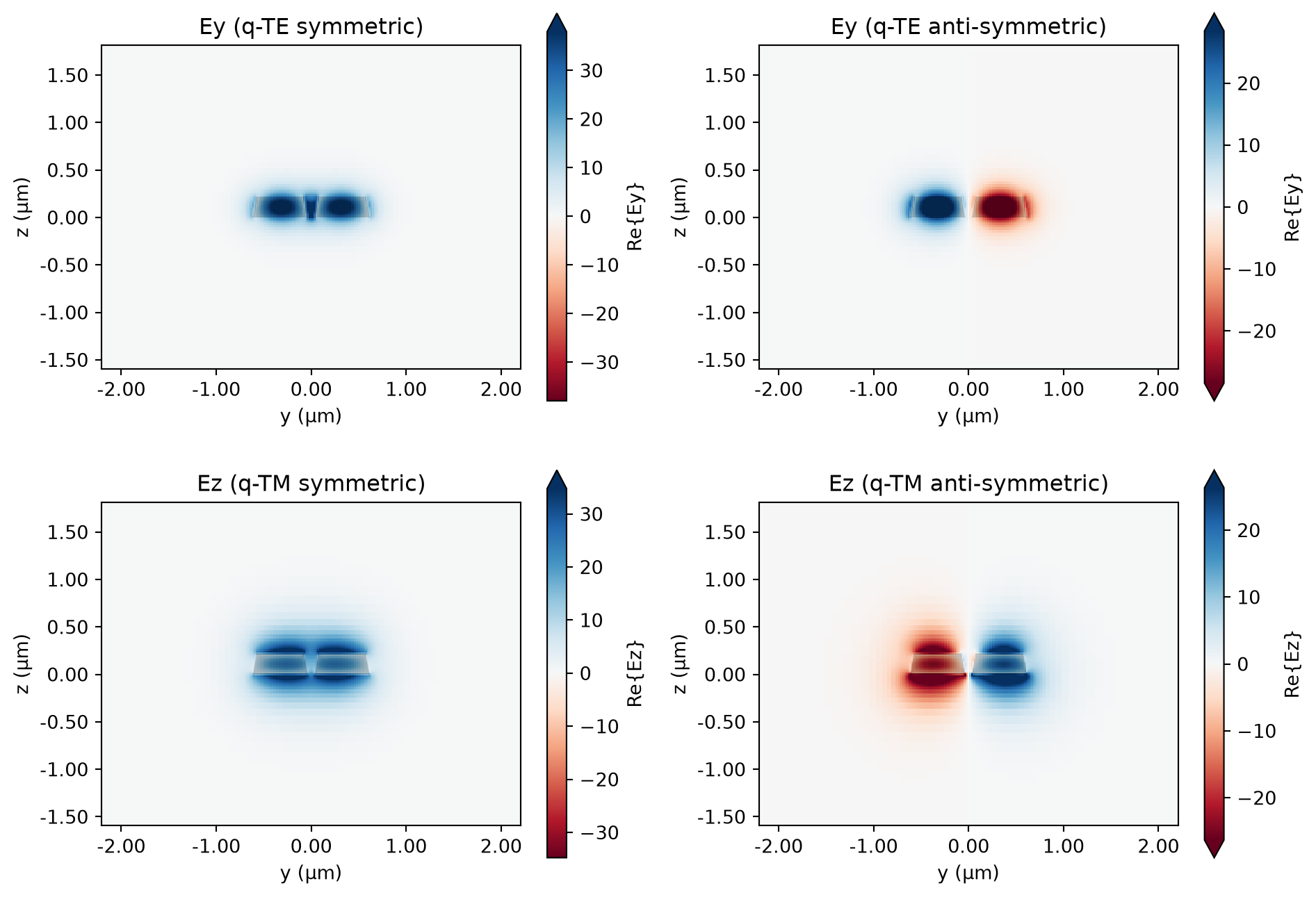

[22]:
# Mode data
print(f"Effective indices: {coupled.n_eff.values}")
print(f"Effective mode areas (µm²): {coupled.mode_area.values}")

fig, ax = pyplot.subplots(2, 2, figsize=(10, 7), tight_layout=True)

coupled.plot_field("Ey", mode_index=0, ax=ax[0, 0])
ax[0, 0].set_title("Ey (q-TE symmetric)")

coupled.plot_field("Ey", mode_index=1, ax=ax[0, 1])
ax[0, 1].set_title("Ey (q-TE anti-symmetric)")

coupled.plot_field("Ez", mode_index=2, ax=ax[1, 0])
ax[1, 0].set_title("Ez (q-TM symmetric)")

coupled.plot_field("Ez", mode_index=3, ax=ax[1, 1])
ax[1, 1].set_title("Ez (q-TM anti-symmetric)")

pyplot.show()
Effective indices: [[2.5879045 2.5534868 1.9815717 1.8500592]]
Effective mode areas (µm²): [[0.37130737 0.35534555 0.636943   0.61225584]]
../_images/notebooks_WaveguidePluginDemonstration_33_1.png

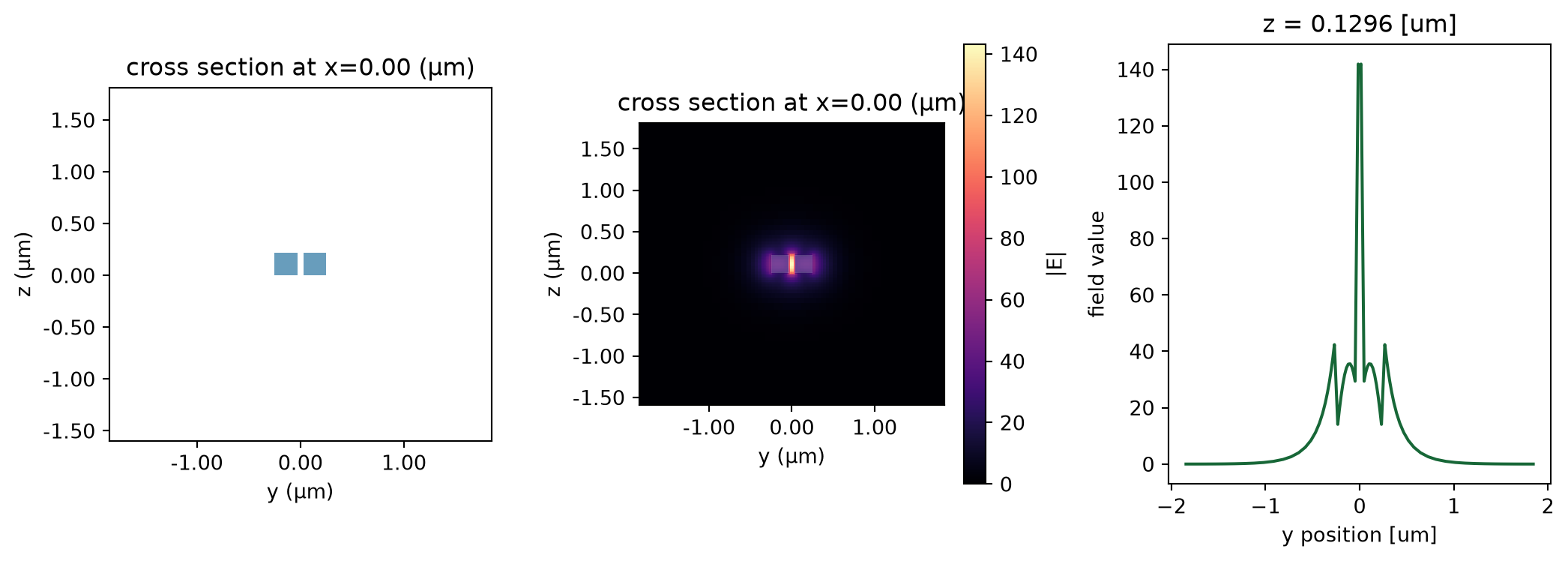

In a similar fashion, vertical slot waveguides can also be simulated easily:

[23]:
slot = waveguide.RectangularDielectric(
    wavelength=1.55,
    core_width=(0.22, 0.22),
    core_thickness=0.22,
    core_medium=si,
    clad_medium=sio2,
    gap = 0.06,
    mode_spec=td.ModeSpec(num_modes=1),
)

fig, ax = pyplot.subplots(1, 3, figsize=(11, 4), tight_layout=True)

slot.plot_structures(x=0, ax=ax[0])

# We use 'robust=False' because we're interested in the large values at the slot
slot.plot_field("E", val="abs", ax=ax[1], robust=False)

# Plot a cross-section of the field component normal to the gap
ey = slot.mode_solver.data.Ey
_ = ey.squeeze(drop=True).sel(z=0.55 * slot.core_thickness, method='nearest').real.plot(ax=ax[2])
../_images/notebooks_WaveguidePluginDemonstration_35_0.png

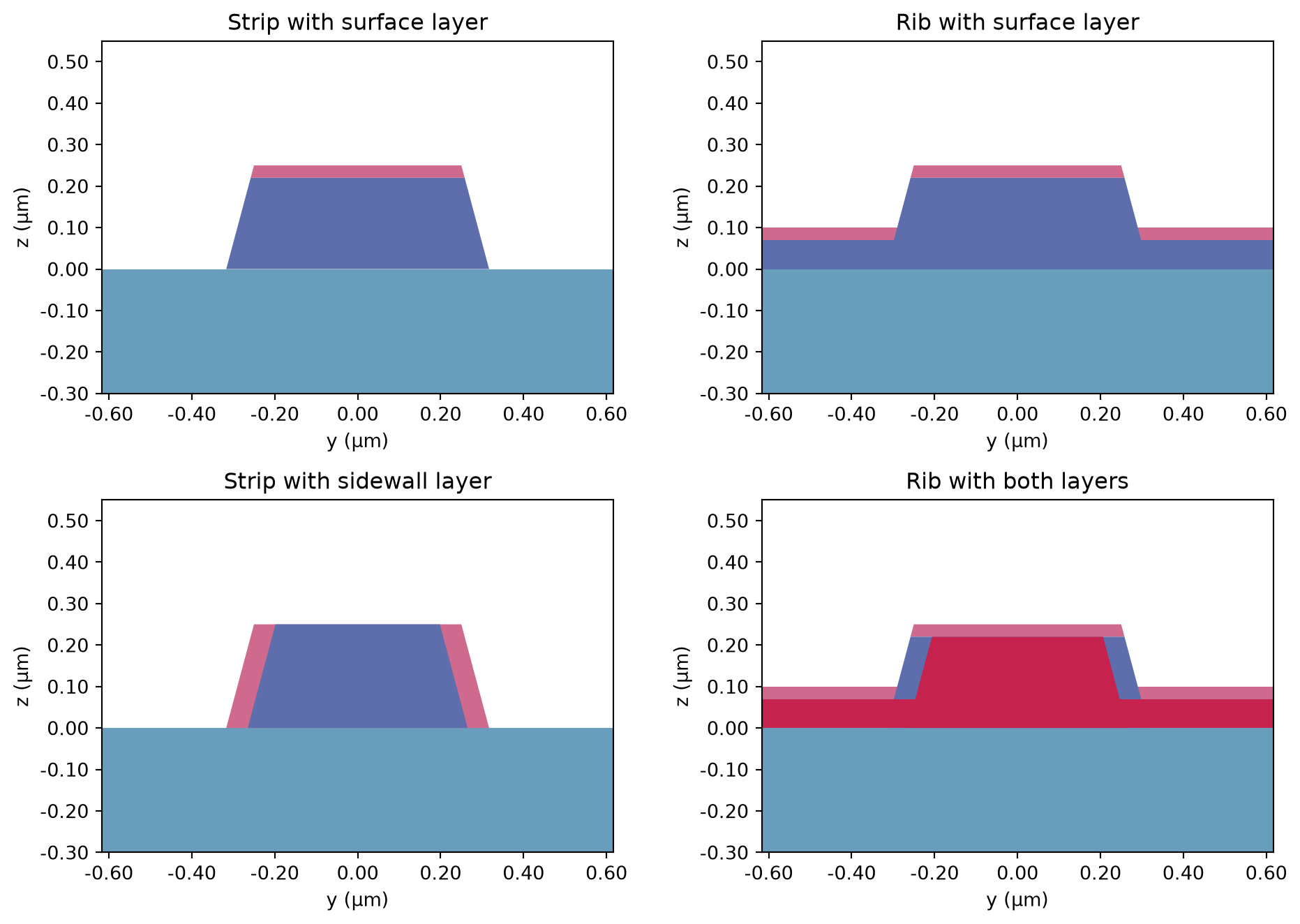

Surface Models#

Besides using lossy materials for all waveguide regions (core, and upper and lower claddings), it is also possible to create separate medium layers along the sidewalls and top surfaces of the waveguide to model localized losses independently.

In the following models, we exagerate those regions and decrease the domain size only to show a close-up of the resulting geometry. Decreasing the domain size is only advisable if we know the modes will have properly decaied to insignificant values at the domain boundaries. Also note that the colors in each plot correspond to different materials.

[24]:
fig, ax = pyplot.subplots(2, 2, figsize=(10, 7), tight_layout=True)

lossy0 = waveguide.RectangularDielectric(
    wavelength=1.55,
    core_width=0.5,
    core_thickness=0.25,
    core_medium=si,
    box_medium=sio2,
    clad_medium=td.Medium(permittivity=1.0),
    gap = 0.15,
    sidewall_angle=np.pi / 12,
    surface_thickness=0.03,
    surface_medium=td.Medium.from_nk(n=3.4, k=0.008, freq=td.C_0 / 1.55),
    side_margin=0.3,
    clad_thickness=0.3,
    box_thickness=0.3,
)

lossy0.plot_structures(x=0, ax=ax[0, 0])
ax[0, 0].set_title("Strip with surface layer")

lossy1 = waveguide.RectangularDielectric(
    wavelength=1.55,
    core_width=0.5,
    core_thickness=0.25,
    slab_thickness=0.1,
    core_medium=si,
    box_medium=sio2,
    clad_medium=td.Medium(permittivity=1.0),
    gap = 0.15,
    sidewall_angle=np.pi / 12,
    surface_thickness=0.03,
    surface_medium=td.Medium.from_nk(n=3.4, k=0.008, freq=td.C_0 / 1.55),
    side_margin=0.3,
    clad_thickness=0.3,
    box_thickness=0.3,
)

lossy1.plot_structures(x=0, ax=ax[0, 1])
ax[0, 1].set_title("Rib with surface layer")

lossy2 = waveguide.RectangularDielectric(
    wavelength=1.55,
    core_width=0.5,
    core_thickness=0.25,
    core_medium=si,
    box_medium=sio2,
    clad_medium=td.Medium(permittivity=1.0),
    gap = 0.15,
    sidewall_angle=np.pi / 12,
    sidewall_thickness=0.05,
    sidewall_medium=td.Medium.from_nk(n=3.2, k=0.01, freq=td.C_0 / 1.55),
    side_margin=0.3,
    clad_thickness=0.3,
    box_thickness=0.3,
)

lossy2.plot_structures(x=0, ax=ax[1, 0])
ax[1, 0].set_title("Strip with sidewall layer")

lossy3 = waveguide.RectangularDielectric(
    wavelength=1.55,
    core_width=0.5,
    core_thickness=0.25,
    slab_thickness=0.1,
    core_medium=si,
    box_medium=sio2,
    clad_medium=td.Medium(permittivity=1.0),
    gap = 0.15,
    sidewall_angle=np.pi / 12,
    sidewall_thickness=0.05,
    sidewall_medium=td.Medium.from_nk(n=3.2, k=0.01, freq=td.C_0 / 1.55),
    surface_thickness=0.03,
    surface_medium=td.Medium.from_nk(n=3.4, k=0.008, freq=td.C_0 / 1.55),
    side_margin=0.3,
    clad_thickness=0.3,
    box_thickness=0.3,
)

lossy3.plot_structures(x=0, ax=ax[1, 1])
_ = ax[1, 1].set_title("Rib with both layers")
../_images/notebooks_WaveguidePluginDemonstration_38_0.png
