Adjoint optimization of a diffractive beam splitter#

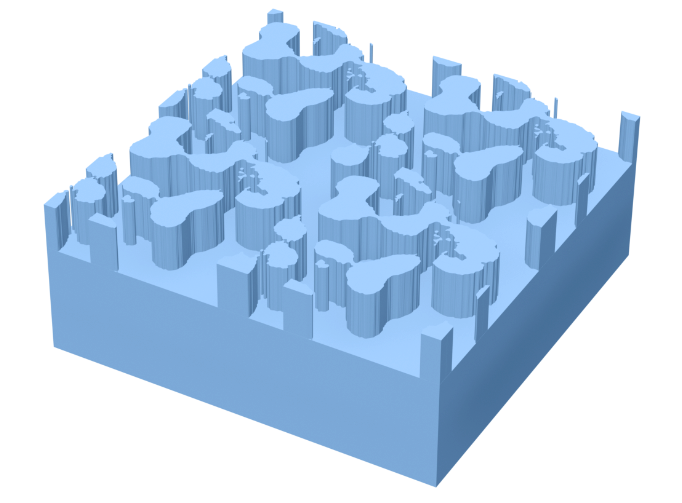

In this notebook, we will use inverse design and Tidy3D to create a 7x7 diffractive beam splitter using topology optimization.
A similar approach was presented in the work of Dong Cheon Kim, Andreas Hermerschmidt, Pavel Dyachenko, and Toralf Scharf, "Adjoint method and inverse design for diffractive beam splitters", Proceedings of SPIE 11261, Components and Packaging for Laser Systems VI, (2020). DOI: https://doi.org/10.1117/12.2543367, where
the authors used the adjoint method to optimize the design with RCWA, starting from a pre-optimized structure obtained using the iterative Fourier transform algorithm.
In this example, we will achieve similar results using FDTD, starting from a random distribution. The final structure is a grating that splits the power of an incident plane wave equally into the first seven diffraction orders along the x and y directions.
[1]:
import autograd.numpy as anp
import matplotlib.pyplot as plt
import numpy as np
import optax
import tidy3d as td
from autograd.tracer import getval
from IPython.display import clear_output, display
from tidy3d import web
from tidy3d.plugins.autograd import (
make_erosion_dilation_penalty,
make_filter_and_project,
rescale,
value_and_grad,
)
td.config.local_cache.enabled = True
def _to_float(x):
"""Unwrap traced/xarray value to plain Python float.
Order matters: unwrap xarray DataArray first, then numpy scalar,
then autograd ArrayBox, then convert to float.
"""
if hasattr(x, "values") and hasattr(x, "dims"):
x = x.values
if hasattr(x, "item"):
x = x.item()
x = getval(x)
return float(x)
np.random.seed(111)
15:28:34 -03 WARNING: Using canonical configuration directory at '/home/filipe/.config/tidy3d'. Found legacy directory at '~/.tidy3d', which will be ignored. Remove it manually or run 'tidy3d config migrate --delete-legacy' to clean up.
Simulation Setup#
First we will define some global parameters.
[2]:
# Wavelength and frequency
wavelength = 0.94
freq0 = td.C_0 / wavelength
fwidth = 0.1 * freq0
run_time = td.RunTimeSpec(quality_factor=20)
# Material properties
permittivity = 1.4512**2
# Etch depth and pixel size
thickness = 1.18
pixel_size = 0.01
# Unit cell size
length = 5
# Distances between PML and source / monitor
buffer = 1.5 * wavelength
# Distances between source / monitor and the mask
dist_src = 1.5 * wavelength
dist_mnt = 1.1 * wavelength
# Resolution
min_steps_per_wvl = 15
# Target diffraction orders
TARGET_ORDER = 3
NUM_TARGET_ORDERS = (2 * TARGET_ORDER + 1) ** 2
# Fabrication penalty weight
FAB_WEIGHT = 0.2
[3]:
# Total z size and center variables
Lz = buffer + dist_src + thickness + dist_mnt + buffer
z_center_slab = -Lz / 2 + buffer + dist_src + thickness / 2.0
Next, we determine the resolution of the design region, as well as the number of pixels.
[4]:
# Number of pixel cells in the design region (in x and y)
nx = ny = int(length / pixel_size)
dl_design_region = pixel_size
Define Simulation Components#
Next, we will define the static structures, PlaneWave source, and monitors.
The monitor used in the optimization is a DiffractionMonitor.
[5]:
# Substrate
substrate = td.Structure(
geometry=td.Box.from_bounds(
rmin=(-td.inf, -td.inf, -1000),
rmax=(+td.inf, +td.inf, z_center_slab - thickness / 2),
),
medium=td.Medium(permittivity=permittivity),
)
# Source
src = td.PlaneWave(
center=(0, 0, -Lz / 2 + buffer),
size=(td.inf, td.inf, 0),
source_time=td.GaussianPulse(freq0=freq0, fwidth=fwidth),
direction="+",
)
# Monitor used in the cost function
diffractionmonitor = td.DiffractionMonitor(
name="diffractionmonitor",
center=(0, 0, +Lz / 2 - buffer),
size=(td.inf, td.inf, 0),
interval_space=[1, 1, 1],
colocate=False,
freqs=[freq0],
apodization=td.ApodizationSpec(),
normal_dir="+",
)
Next, we will define auxiliary functions to create the optimization volume, and filters to address fabrication constraints.
The structure consists of nx by ny pixels, representing etched areas on the substrate.
To ensure minimum feature sizes, we will use the auxiliary function make_filter_and_project to create a FilterAndProject object, which applies convolution and binarization filters to enforce binarization and minimum feature sizes.
We will also use make_erosion_dilation_penalty to create an ErosionDilationPenalty object, which promotes structures invariant under erosion and dilation, further helping to avoid small feature sizes.
For more information on fabrication constraints, please refer to this lecture.
[ ]:
# Creating filters
radius = 0.1
filter_project = make_filter_and_project(radius, dl_design_region)
erosion_dilation_penalty = make_erosion_dilation_penalty(radius, dl_design_region, beta=10)
def get_eps(params: anp.ndarray, beta: float) -> anp.ndarray:
"""Get the permittivity values (1, permittivity) array as a function of the parameters (0, 1)"""
density = filter_project(params, beta)
eps = rescale(density, 1, permittivity)
return eps.reshape((nx, ny, 1))
def make_slab(params: anp.ndarray, beta: float) -> td.Structure:
"""Make the optimization design region"""
box = td.Box(center=(0, 0, z_center_slab), size=(2 * length, 2 * length, thickness))
eps_data = get_eps(params, beta)
return td.Structure.from_permittivity_array(geometry=box, eps_data=eps_data)
Finally, we will define an auxiliary function that returns the simulation object as a function of the optimization parameters and the binarization control variable, beta.
[7]:
def make_sim(params: anp.ndarray, beta: float) -> td.Simulation:
"""The simulation as a function of the design parameters."""
slab = make_slab(params, beta)
# Mesh override structure to ensure uniform dl across the slab
design_region_mesh = td.MeshOverrideStructure(
geometry=slab.geometry,
dl=[dl_design_region] * 3,
enforce=False,
)
return td.Simulation(
size=(length, length, Lz),
grid_spec=td.GridSpec.auto(
min_steps_per_wvl=min_steps_per_wvl,
override_structures=[design_region_mesh],
),
boundary_spec=td.BoundarySpec(
x=td.Boundary(
plus=td.Periodic(),
minus=td.Periodic(),
),
y=td.Boundary(
plus=td.Periodic(),
minus=td.Periodic(),
),
z=td.Boundary(
plus=td.PML(),
minus=td.PML(),
),
),
structures=[substrate, slab],
monitors=[diffractionmonitor],
sources=[src],
run_time=run_time,
)

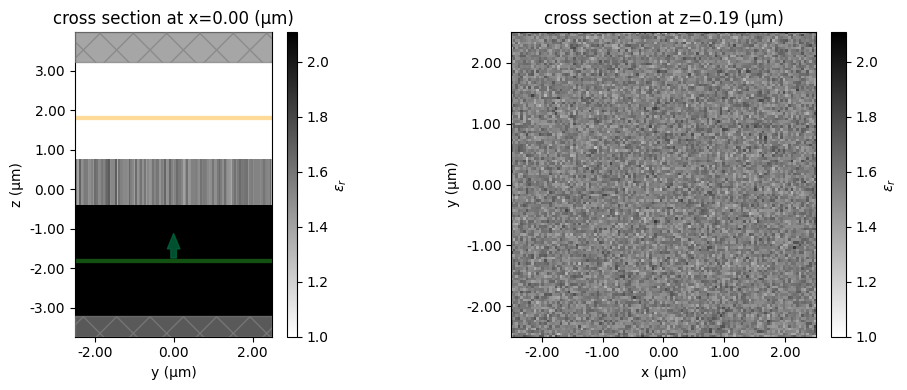

Now, we will create a simulation with random parameters to test and visualize the setup.
[ ]:
# Make symmetric, random starting parameters
params0 = np.random.random((nx, ny))
params0 += np.fliplr(params0)
params0 += np.flipud(params0)
params0 /= 4.0
beta0 = 1.0
sim = make_sim(params=params0, beta=beta0)
[9]:
f, (ax1, ax2) = plt.subplots(1, 2, figsize=(10, 4), tight_layout=True)
ax1 = sim.plot_eps(x=0, ax=ax1)
ax2 = sim.plot_eps(z=z_center_slab, ax=ax2)
plt.show()

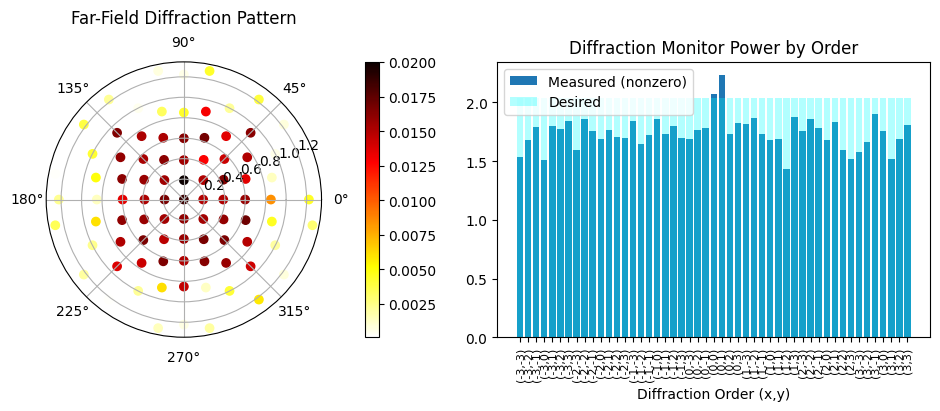

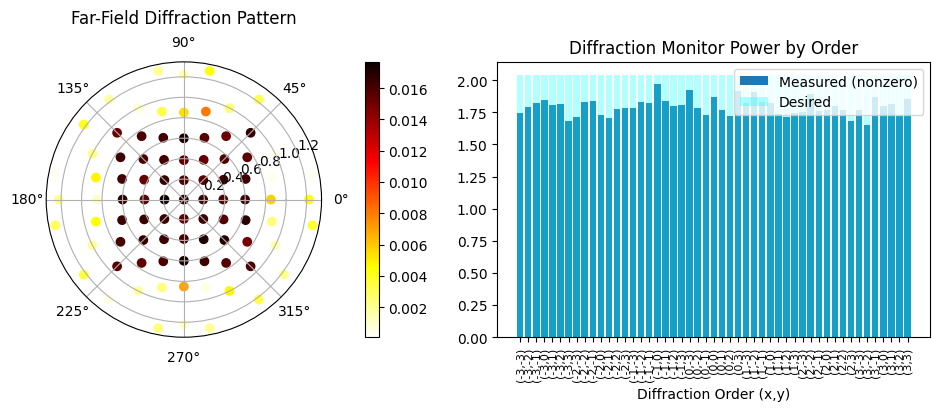

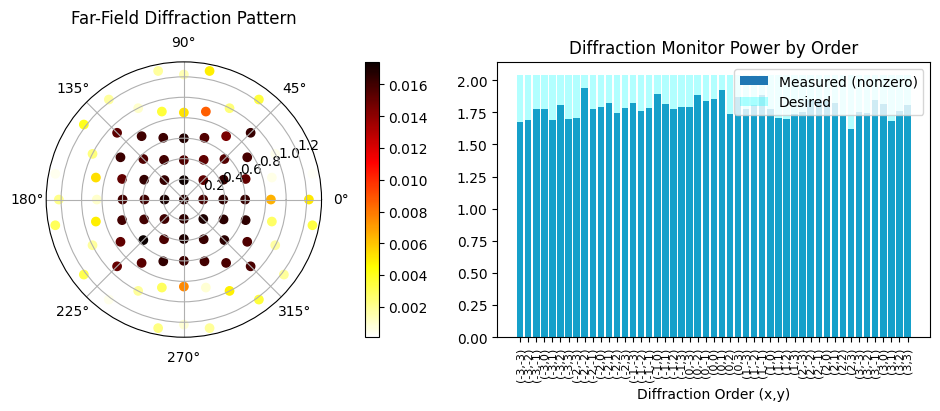

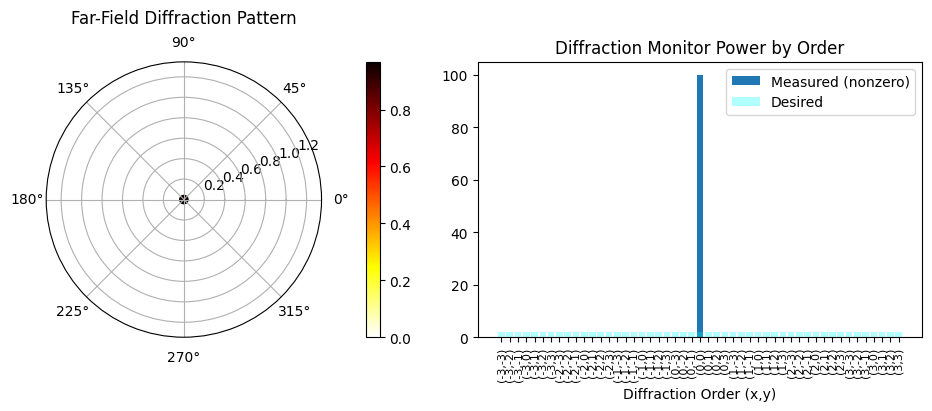

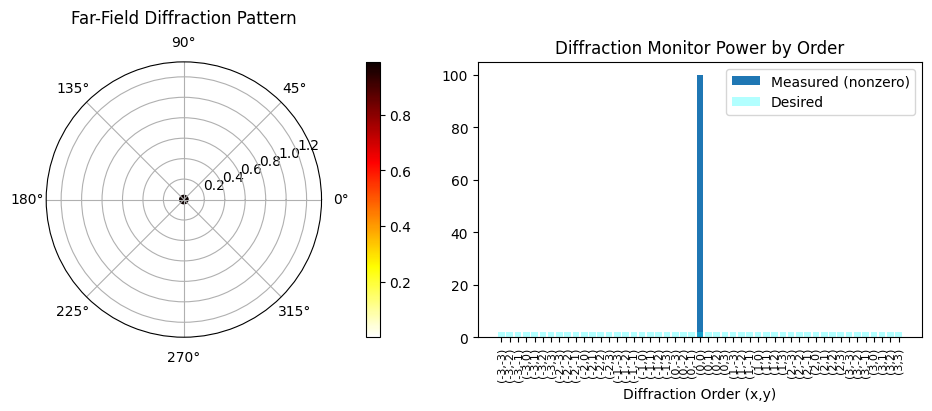

We will also define an auxiliary function to post process and visualize the results.
[10]:
def post_process(sim_data):
"""Post-process simulation data: compute efficiency, RMSE, and plot diffraction results."""
order = TARGET_ORDER
number_of_orders = NUM_TARGET_ORDERS
# Extract data
plot_data = sim_data["diffractionmonitor"]
intensity_measured = plot_data.power
theta, phi = plot_data.angles
theta = theta.isel(f=0)
phi = phi.isel(f=0)
power_values = plot_data.power.isel(f=0)
total_power = 0
# Calculate diffraction orders
order1, power1, desiredPower1 = [], [], []
for xorder in intensity_measured.orders_x:
for yorder in intensity_measured.orders_y:
val = (
sim_data["diffractionmonitor"]
.power.isel(f=0)
.sel(orders_x=xorder, orders_y=yorder)
.values
)
total_power += val
if (abs(xorder) <= order) and (abs(yorder) <= order):
order1.append((int(xorder), int(yorder)))
power1.append(val)
desiredPower1.append(1 / number_of_orders)
rmse = np.sqrt(
(1 / number_of_orders) * np.sum((np.array(power1) - np.sum(power1) / number_of_orders) ** 2)
)
rmse *= 100 # to get percentage
labels1 = [f"({x},{y})" for x, y in order1]

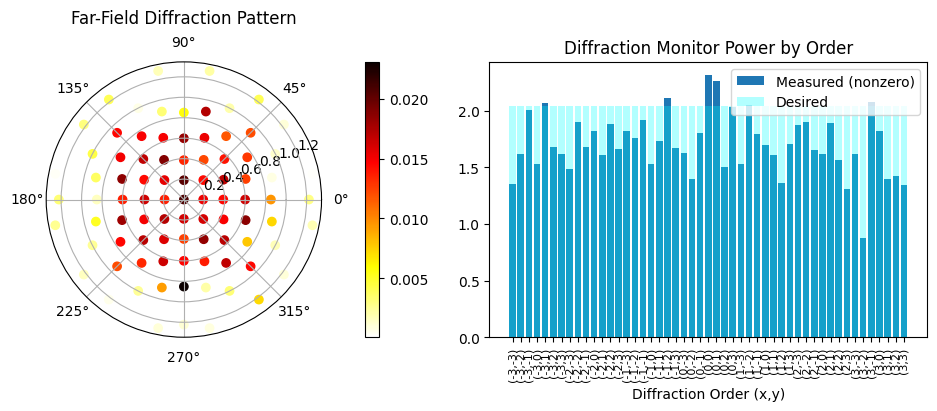

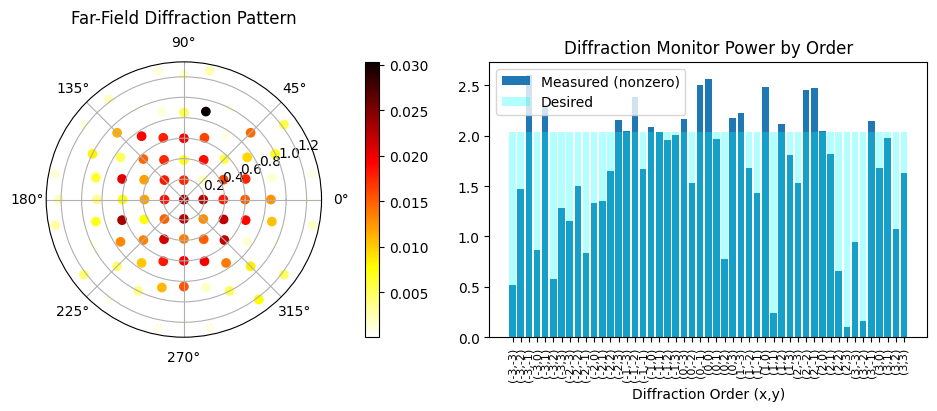

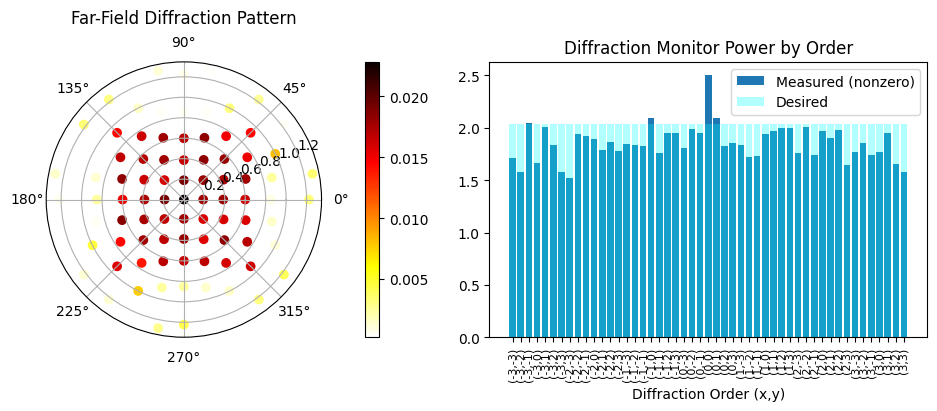

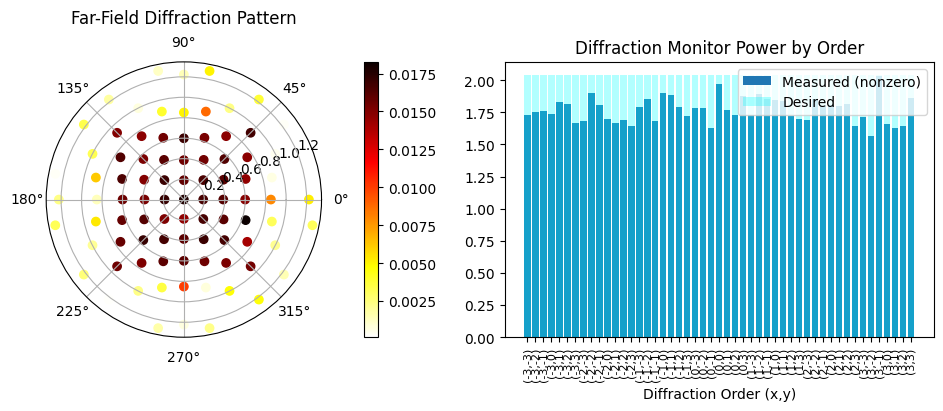

# Create a figure with two subplots side by side
fig = plt.figure(figsize=(10, 4))
ax_polar = fig.add_subplot(1, 2, 1, projection="polar")
ax_bar = fig.add_subplot(1, 2, 2)
# --- Polar plot ---
sc = ax_polar.scatter(phi, theta, c=power_values, cmap="hot_r")
fig.colorbar(sc, ax=ax_polar, orientation="vertical", pad=0.1)
ax_polar.set_title("Far-Field Diffraction Pattern", va="bottom")
# --- Bar plot ---
total_power = float(np.sum(power_values))
ax_bar.bar(
range(len(power1)),
100 * np.array(power1) / total_power,
color="tab:blue",
label="Measured (nonzero)",
)
ax_bar.bar(
range(len(desiredPower1)),
np.array(desiredPower1) * 100,
color="cyan",
alpha=0.3,
label="Desired",
)
ax_bar.legend()
ax_bar.set_xticks(range(len(power1)))
ax_bar.set_xticklabels(labels1, rotation=90, fontsize=8)
ax_bar.set_xlabel("Diffraction Order (x,y)")
ax_bar.set_title("Diffraction Monitor Power by Order")
plt.tight_layout()
plt.show()
efficiency = sum(power1) / total_power
print(f"Efficiency: {efficiency:.2f}")
print(f"RMSE: {rmse:.2f}")
return efficiency, rmse
Normalization Simulation#
We run a simulation with the flat substrate (no grating) to measure the total available transmitted power, power0. This serves as our fixed reference for computing efficiency, so the optimization target does not shift as the design changes.
[11]:
sim_norm = td.Simulation(
size=(length, length, Lz),
grid_spec=td.GridSpec.auto(min_steps_per_wvl=min_steps_per_wvl),
boundary_spec=td.BoundarySpec(
x=td.Boundary(plus=td.Periodic(), minus=td.Periodic()),
y=td.Boundary(plus=td.Periodic(), minus=td.Periodic()),
z=td.Boundary(plus=td.PML(), minus=td.PML()),
),
structures=[substrate],
monitors=[diffractionmonitor],
sources=[src],
run_time=run_time,
)
sim_data_norm = web.run(sim_norm, task_name="normalization", verbose=True)
power0 = float(np.sum(sim_data_norm["diffractionmonitor"].power.values))
print(f"Reference power (power0): {power0:.4f}")
15:28:40 -03 Created task 'normalization' with resource_id 'fdve-c62df3f4-6b72-479c-b91d-79c32d805a7c' and task_type 'FDTD'.
View task using web UI at 'https://tidy3d.simulation.cloud/workbench?taskId=fdve-c62df3f4-6b7 2-479c-b91d-79c32d805a7c'.
Task folder: 'default'.
15:28:44 -03 Estimated FlexCredit cost: 0.025. Minimum cost depends on task execution details. Use 'web.real_cost(task_id)' to get the billed FlexCredit cost after a simulation run.
15:28:46 -03 status = queued
To cancel the simulation, use 'web.abort(task_id)' or 'web.delete(task_id)' or abort/delete the task in the web UI. Terminating the Python script will not stop the job running on the cloud.
15:33:11 -03 starting up solver
15:33:12 -03 running solver
15:33:13 -03 early shutoff detected at 12%, exiting.
15:33:14 -03 status = success
View simulation result at 'https://tidy3d.simulation.cloud/workbench?taskId=fdve-c62df3f4-6b7 2-479c-b91d-79c32d805a7c'.
15:33:17 -03 Loading simulation from simulation_data.hdf5
Reference power (power0): 0.9675
Objective Function#
Next, we will define a function to analyze the DiffractionMonitor data and evaluate the total power inside the desired diffraction orders, along with a penalty to ensure equal distribution of the intensities.
[ ]:
def intensity_diff_fn(sim_data, weight_outside=0.1):
"""Returns a measure of the difference between desired and target intensity patterns."""
power = sim_data["diffractionmonitor"].power
# Total power at desired orders
total_power = 0.0
for ordersx in power.orders_x:
for ordersy in power.orders_y:
power_xy = power.sel(orders_x=ordersx, orders_y=ordersy)
if abs(ordersx) <= TARGET_ORDER and abs(ordersy) <= TARGET_ORDER:
total_power = total_power + power_xy
# Adding the penalty for uneven distribution of the power, and also power at undesired orders
cost = 0.0
for ordersx in power.orders_x:
for ordersy in power.orders_y:
power_xy = power.sel(orders_x=ordersx, orders_y=ordersy)
if abs(ordersx) <= TARGET_ORDER and abs(ordersy) <= TARGET_ORDER:
cost = cost + (total_power / NUM_TARGET_ORDERS - power_xy) ** 2
else:
cost = cost + weight_outside * anp.abs(power_xy) ** 2
return cost
Loss Function#
Finally, we can create our loss function, which takes as input the parameter list and beta, creates and runs the simulation object, processes the data, and returns the loss, including fabrication constraint penalties. This is the function that will be differentiated using autograd.
It extracts the diffraction orders from the DiffractionMonitor, and first calculates the total power as the sum of the intensities of all desired diffraction orders. Next, the function adds to the cost function a penalty for the difference of each order with respect to the mean power, to enforce homogeneity. Finally, the power outside the desired orders is accounted for as a penalty to enforce high efficiency.
[13]:
def loss_fn(params, beta, verbose=False):
"""Loss function for the design, the difference in intensity + the feature size penalty."""
sim = make_sim(params, beta=beta)
sim_data = web.run(sim, task_name="diffractive_beam_splitter", verbose=verbose)
cost = intensity_diff_fn(sim_data)
density = filter_project(params, beta)
fab_penalty = erosion_dilation_penalty(density)
res = cost**-1 - FAB_WEIGHT * fab_penalty
# Extract per-order powers for monitoring (detached from autograd graph).
power_da = sim_data["diffractionmonitor"].power.isel(f=0)
pv = power_da.values
orders_x = power_da.orders_x.values
orders_y = power_da.orders_y.values
order_powers = []
order_labels = []
target_sum = 0.0
total_power = 0.0
for i, ox in enumerate(orders_x):
for j, oy in enumerate(orders_y):
v = _to_float(pv[i, j])
total_power += v
if abs(ox) <= TARGET_ORDER and abs(oy) <= TARGET_ORDER:
order_powers.append(v)
order_labels.append((int(ox), int(oy)))
target_sum += v
aux_data = dict(
objective=_to_float(cost),
fab_penalty=_to_float(fab_penalty),
efficiency=target_sum / total_power if total_power > 0 else 0.0,
order_powers=np.array(order_powers),
order_labels=order_labels,
)
return res, aux_data
loss_fn_val_grad = value_and_grad(loss_fn, has_aux=True)
Before running the optimization, we first check that everything is working correctly.
[14]:
(val, grad), aux_data = loss_fn_val_grad(params0, beta0, verbose=True)
print(f"Loss value (maximize): {val:.4f}")
print(f" Cost (minimize): {aux_data['objective']:.4e}")
print(f" Fab penalty: {aux_data['fab_penalty']:.4e}")
print(f" Efficiency: {aux_data['efficiency']:.4f}")
15:33:18 -03 Created task 'diffractive_beam_splitter' with resource_id 'fdve-9bfacac4-4515-4955-a1b0-dceb71dcccb8' and task_type 'FDTD'.
View task using web UI at 'https://tidy3d.simulation.cloud/workbench?taskId=fdve-9bfacac4-451 5-4955-a1b0-dceb71dcccb8'.
Task folder: 'default'.
15:33:26 -03 Estimated FlexCredit cost: 0.754. Minimum cost depends on task execution details. Use 'web.real_cost(task_id)' to get the billed FlexCredit cost after a simulation run.
15:33:29 -03 status = queued
To cancel the simulation, use 'web.abort(task_id)' or 'web.delete(task_id)' or abort/delete the task in the web UI. Terminating the Python script will not stop the job running on the cloud.
15:33:52 -03 status = preprocess
15:33:57 -03 starting up solver
15:33:58 -03 running solver
15:34:31 -03 early shutoff detected at 12%, exiting.
15:34:32 -03 status = postprocess
15:34:41 -03 status = success
15:34:43 -03 View simulation result at 'https://tidy3d.simulation.cloud/workbench?taskId=fdve-9bfacac4-451 5-4955-a1b0-dceb71dcccb8'.
15:34:47 -03 Loading simulation from simulation_data.hdf5
15:34:54 -03 Started working on Batch containing 1 tasks.
15:35:11 -03 Maximum FlexCredit cost: 0.786 for the whole batch.
Use 'Batch.real_cost()' to get the billed FlexCredit cost after completion.
15:46:52 -03 Batch complete.
Loss value (maximize): 0.8792
Cost (minimize): 9.2696e-01
Fab penalty: 9.9816e-01
Efficiency: 0.9999
It is also a good sanity check to look at the gradients and confirm they are not all 0.
[15]:
print(f"Gradient norm: {np.linalg.norm(grad):.3e}")
print(f"Gradient range: [{np.min(grad):.3e}, {np.max(grad):.3e}]")
Gradient norm: 1.271e-03
Gradient range: [-1.072e-05, 5.437e-06]
[16]:
post_process(aux_data.get("sim_data", sim_data_norm))
Efficiency: 1.00
RMSE: 13.68
[16]:
(1.0, 13.679595136005965)
Optimize Device#
Now we are finally ready to optimize our device.
As in the other tutorials, we use the implementation of āAdam Optimizationā from optax. We negate the gradient at each step since we are maximizing the objective (which is cost^(-1)).
The binarization strength beta is gradually increased over the course of the optimization, encouraging the design to converge toward a fabricable binary structure.
[17]:
num_steps = 80
learning_rate = 0.3
optimizer = optax.adam(learning_rate=learning_rate)
params = params0.copy()
opt_state = optimizer.init(params)
[19]:
# gradually increase the binarization strength over iteration
beta = beta0
beta_increment = 0.5
history = dict(
loss=[],
objective=[],
efficiency=[],
fab_penalty=[],
betas=[],
params=[],
order_powers=[],
)
fig, axes = plt.subplots(2, 2, figsize=(14, 10))
for i in range(num_steps):
# compute gradient and current loss function value
(loss, gradient), aux_data = loss_fn_val_grad(params, beta)
# record history
history["loss"].append(loss)
history["objective"].append(aux_data["objective"])
history["efficiency"].append(aux_data["efficiency"])
history["fab_penalty"].append(aux_data["fab_penalty"])
history["betas"].append(beta)
history["params"].append(params.copy())
history["order_powers"].append(aux_data["order_powers"])
# per-order power statistics
op = aux_data["order_powers"]
op_fracs = op / op.sum()
ideal_frac = 1.0 / NUM_TARGET_ORDERS
cv = np.std(op) / (np.mean(op) + 1e-20)
# log output
print(f"step {i}/{num_steps}")
print(f" loss (maximize) = {loss:.3e}")
print(f" cost (minimize) = {aux_data['objective']:.3e}")
print(f" efficiency = {aux_data['efficiency']:.3f}")
print(f" fab_penalty = {aux_data['fab_penalty']:.3e}")
print(f" beta = {beta:.2f}")
print(f" |gradient| = {np.linalg.norm(gradient):.3e}")
print(
f" order powers: min={op.min():.4f} max={op.max():.4f} mean={op.mean():.4f} CV={cv:.3f}"
)
# NEGATE gradient because we are MAXIMIZING
updates, opt_state = optimizer.update(-gradient, opt_state, params)
params = np.clip(optax.apply_updates(params, updates), 0.0, 1.0)
# update beta
beta += beta_increment

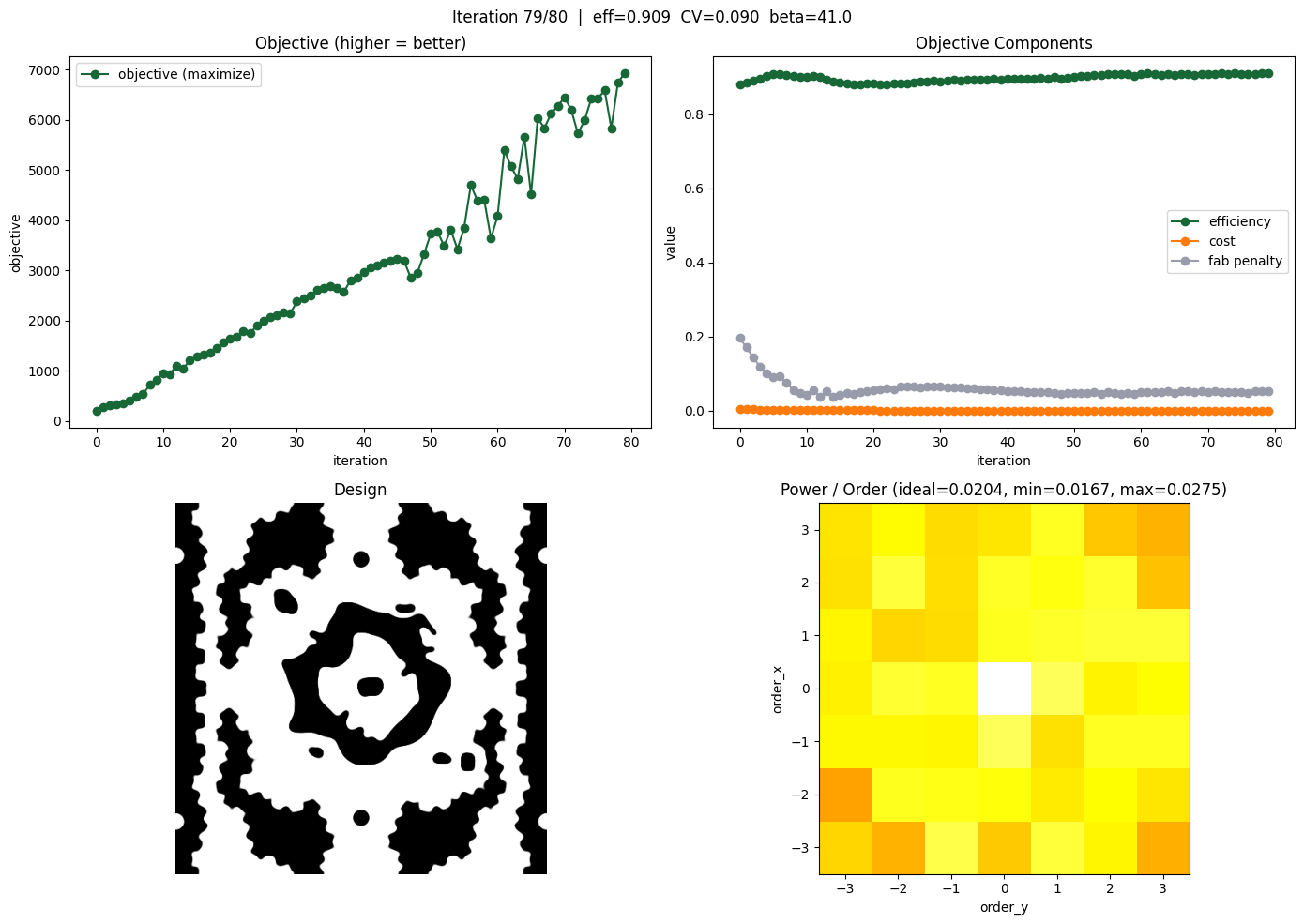

# --- Live-updating progress plot ---
for ax in axes.flat:
ax.clear()
fig.suptitle(
f"Iteration {i}/{num_steps} | eff={aux_data['efficiency']:.3f} "
f"CV={cv:.3f} beta={beta:.1f}"
)
# Top-left: loss history
axes[0, 0].plot(history["loss"], "o-", label="objective (maximize)")
axes[0, 0].set_xlabel("iteration")
axes[0, 0].set_ylabel("objective")
axes[0, 0].set_title("Objective (higher = better)")
axes[0, 0].legend()
# Top-right: objective components
axes[0, 1].plot(history["efficiency"], "o-", label="efficiency")
axes[0, 1].plot(history["objective"], "o-", label="cost")
axes[0, 1].plot(history["fab_penalty"], "o-", label="fab penalty")
axes[0, 1].set_xlabel("iteration")
axes[0, 1].set_ylabel("value")
axes[0, 1].set_title("Objective Components")
axes[0, 1].legend()
# Bottom-left: design pattern
density = filter_project(params, beta)
axes[1, 0].imshow(np.flipud(1 - density.T), cmap="gray")
axes[1, 0].axis("off")
axes[1, 0].set_title("Design")
# Bottom-right: diffraction order power heatmap
grid_size = 2 * TARGET_ORDER + 1
order_grid = np.zeros((grid_size, grid_size))
for (ox, oy), pwr in zip(aux_data["order_labels"], aux_data["order_powers"]):
order_grid[ox + TARGET_ORDER, oy + TARGET_ORDER] = pwr
order_grid_norm = order_grid / (order_grid.sum() + 1e-20)
im = axes[1, 1].imshow(
order_grid_norm,
cmap="hot",
vmin=0,
extent=[-TARGET_ORDER - 0.5, TARGET_ORDER + 0.5, -TARGET_ORDER - 0.5, TARGET_ORDER + 0.5],
origin="lower",
)
axes[1, 1].set_xlabel("order_y")
axes[1, 1].set_ylabel("order_x")
axes[1, 1].set_title(
f"Power / Order (ideal={ideal_frac:.4f}, "
f"min={op_fracs.min():.4f}, max={op_fracs.max():.4f})"
)
plt.tight_layout()
clear_output(wait=True)
display(fig)
plt.show()

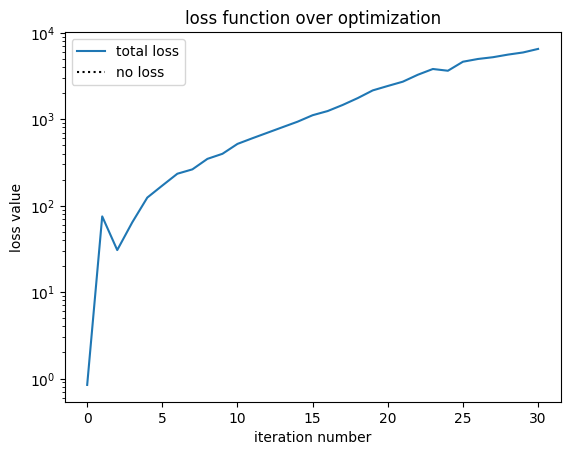

Analyze Results#

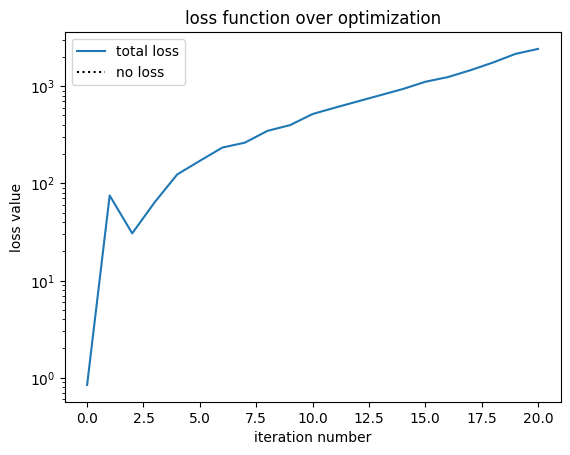

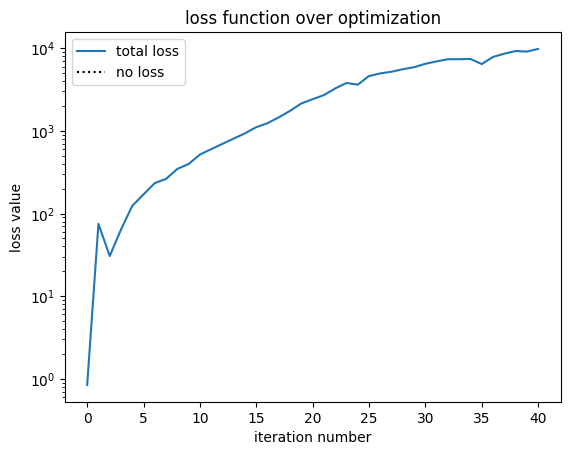

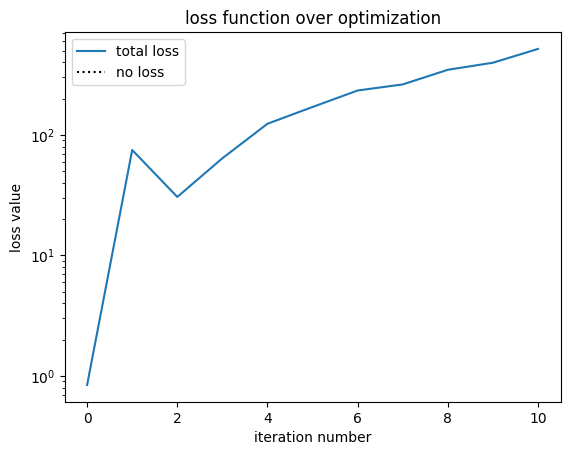

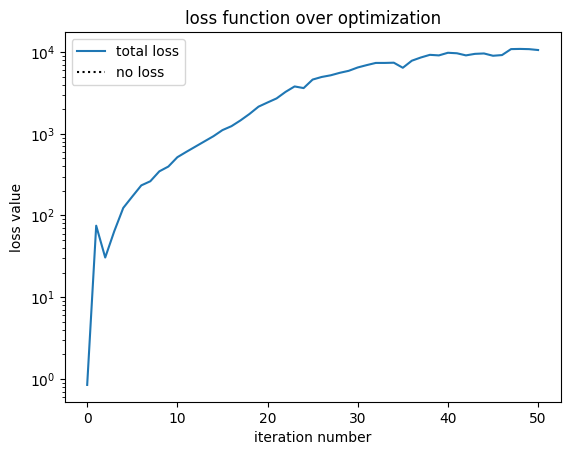

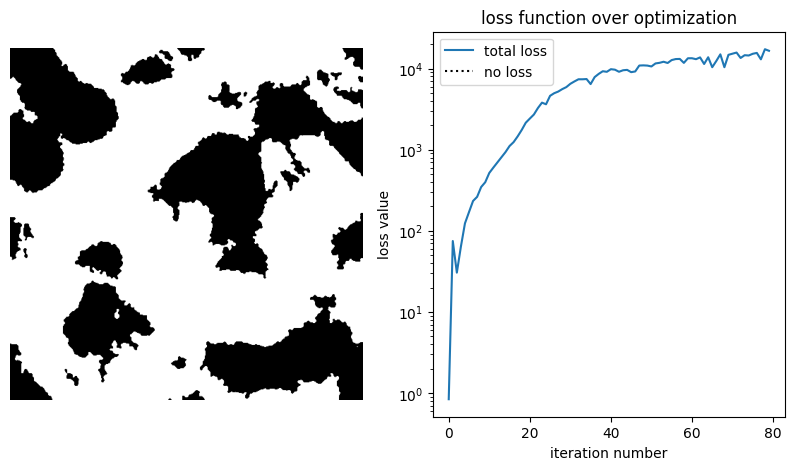

First, letās plot the objective function history, and the final permittivity distribution.
[20]:
params_final = history["params"][-1]
beta_final = history["betas"][-1]
fig, axe = plt.subplots(nrows=1, ncols=2, figsize=(10, 5))
density = filter_project(params_final, beta_final)
axe[0].imshow(np.flipud(1 - density.T), cmap="gray")
axe[0].axis("off")
axe[1].plot(history["loss"], label="total loss")
axe[1].plot(np.zeros_like(history["loss"]), linestyle=":", color="k", label="no loss")
axe[1].set_xlabel("iteration number")
axe[1].set_ylabel("loss value")
axe[1].set_title("loss function over optimization")
axe[1].legend()
plt.show()

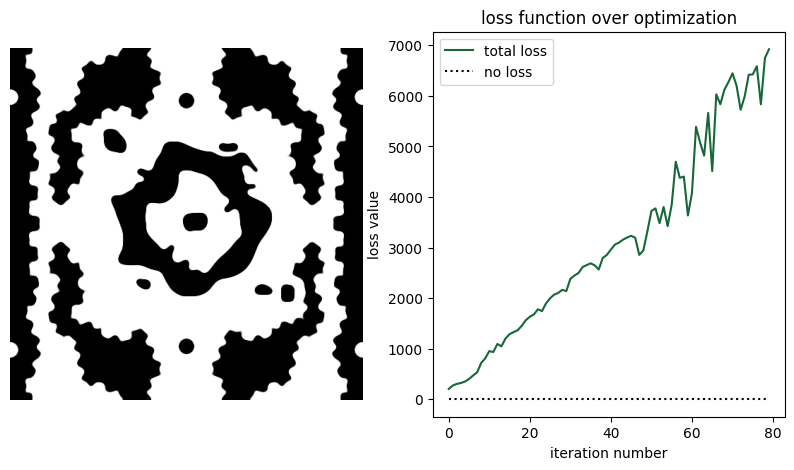

Now, we can run the final simulation.
[21]:
sim_final = make_sim(params_final, beta_final)
sim_data_final = web.run(sim_final, task_name="Inspect")
11:39:51 -03 Created task 'Inspect' with resource_id 'fdve-f687365c-8fba-47de-b8d8-a52122c7c223' and task_type 'FDTD'.
View task using web UI at 'https://tidy3d.simulation.cloud/workbench?taskId=fdve-f687365c-8fb a-47de-b8d8-a52122c7c223'.
Task folder: 'default'.
11:39:57 -03 Estimated FlexCredit cost: 0.781. Minimum cost depends on task execution details. Use 'web.real_cost(task_id)' to get the billed FlexCredit cost after a simulation run.
11:39:59 -03 status = queued
To cancel the simulation, use 'web.abort(task_id)' or 'web.delete(task_id)' or abort/delete the task in the web UI. Terminating the Python script will not stop the job running on the cloud.
11:40:03 -03 status = preprocess
11:40:08 -03 starting up solver
11:40:09 -03 running solver
11:41:04 -03 early shutoff detected at 80%, exiting.
11:41:05 -03 status = postprocess
status = success
11:41:07 -03 View simulation result at 'https://tidy3d.simulation.cloud/workbench?taskId=fdve-f687365c-8fb a-47de-b8d8-a52122c7c223'.
11:41:11 -03 Loading simulation from simulation_data.hdf5

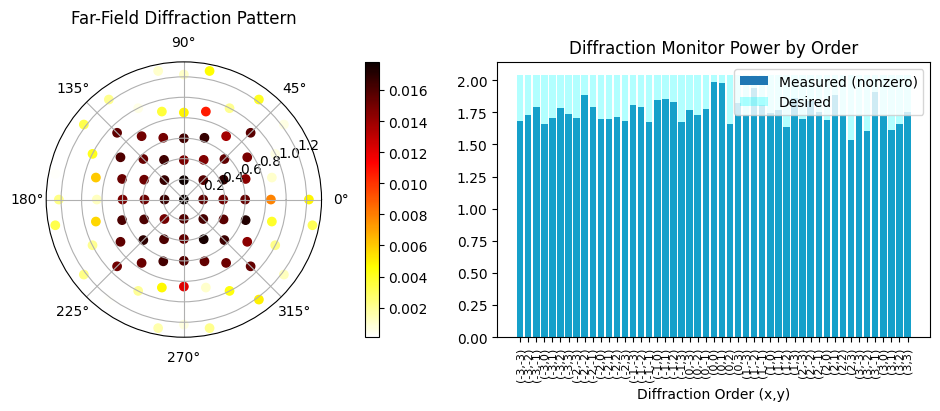

As we can see, although starting with a random distribution, we can achieve good figures of merit when compared with the reference paper.
Although the performance is good, the minimum feature sizes might be too small for some fabrication systems. In that case, it is possible to increase the radius parameter to help enforce larger feature sizes.
[22]:
efficiency, rmse = post_process(sim_data_final)
Efficiency: 0.91
RMSE: 0.15
