Parameterized level set optimization of a y-branch#
Note: the cost of running the entire notebook is higher than 1 FlexCredit.
This notebook demonstrates how to set up and run a parameterized level set-based optimization of a Y-branch. In this approach, we use autograd to generate a level set surface \(\phi(\rho)\) given a set of control knots \(\rho\). The permittivity distribution is then obtained implicitly from the zero level set isocontour. Details about the level set method can be found here. Minimum gap and curvature penalty terms are introduced in
the optimization to control the minimum feature size, hence improving device fabrication. In addition, we show how to tailor the initial level set function to a starting geometry, which is helpful to further optimize a device obtained by conventional design.
You can also find some interesting adjoint functionalities for shape optimization in Inverse design optimization of a waveguide taper and Adjoint-based shape optimization of a waveguide bend. If you are new to the finite-difference time-domain (FDTD) method, we highly recommend going through our FDTD101 tutorials. FDTD simulations can diverge due to various reasons. If you run into any simulation divergence issues, please follow the steps outlined in our troubleshooting guide to resolve it.
Letβs start by importing the Python libraries used throughout this notebook.
[1]:
# Standard python imports.
from typing import List
import numpy as np
import matplotlib.pylab as plt
# Import autograd to be able to use automatic differentiation.
import autograd.numpy as anp
from autograd import grad
from autograd.tracer import getval
import optax
import pickle
import gdstk
# Import regular tidy3d.
import tidy3d as td
import tidy3d.web as web
from tidy3d.plugins.autograd import value_and_grad
plt.rcParams["font.size"] = "12"
Y-branch Inverse Design Configuration#
The y-branch splits the power from an input waveguide into two other output waveguides. Here, we are considering a gap of 0.3 \(\mu m\) between the output waveguides for illustration purposes. However, when considering the design of a practical device, this value can be smaller. S-bends are included to keep the output waveguides apart from each other to prevent mode coupling.
Next, you can set the y-branch geometry and the inverse design parameters.
[2]:
# Geometric parameters.
y_width = 1.7 # Y-branch maximum width (um).
y_length = 1.7 # Y-branch maximum length (um).
w_thick = 0.22 # Waveguide thickness (um).
w_width = 0.5 # Waveguide width (um).
w_length = 1.0 # Input output waveguide length (um).
w_gap = 0.3 # Gap between the output waveguides (um).
bend_length = 3 # Output waveguide bend length (um).
bend_offset = 0.5 # Offset between output bends (um).
# Material.
nSi = 3.48 # Silicon refractive index.
# Inverse design set up parameters.
grid_size = 0.016 # Simulation grid size on design region (um).
ls_grid_size = 0.004 # Discretization size of the level set function (um).
ls_down_sample = 20 # The spacing between the level set control knots is given by ls_grid_size*ls_down_sample.
fom_name_1 = "fom_field1" # Name of the monitor used to compute the objective function.
min_feature_size = 0.14 # Minimum fabrication feature size (um).
gap_par = 1.0 # Parameter to minimum gap fabrication constraint.
curve_par = 1.5 # Parameter of minimum curvature fabrication constraint.
# Optimizer parameters.
iterations = 100 # Maximum number of iterations in optimization.
learning_rate = 0.03
# Simulation wavelength.
wl = 1.55 # Central simulation wavelength (um).
bw = 0.06 # Simulation bandwidth (um).
n_wl = 61 # Number of wavelength points within the bandwidth.
From the parameters defined before, a lot of variables are computed and used to set up the optimization.
[3]:
# Minimum and maximum values for the permittivities.
eps_max = nSi**2
eps_min = 1.0
# Material definition.
mat_si = td.Medium(permittivity=eps_max) # Waveguide material.
# Wavelengths and frequencies.
wl_max = wl + bw / 2
wl_min = wl - bw / 2
wl_range = np.linspace(wl_min, wl_max, n_wl)
freq = td.C_0 / wl
freqs = td.C_0 / wl_range
freqw = 0.5 * (freqs[0] - freqs[-1])
run_time = 8e-13
# Computational domain size.
pml_spacing = 0.6 * wl
size_x = 2 * w_length + y_length + bend_length
size_y = w_gap + 2 * (bend_offset + w_width + pml_spacing)
size_z = w_thick + 2 * pml_spacing
eff_inf = 10
# Source and monitor positions.
mon_w = 3 * w_width
mon_h = 5 * w_thick
# Separation between the level set control knots.
rho_size = ls_down_sample * ls_grid_size
# Number of points on the parameter grid (rho) and level set grid (phi)
nx_rho = int(y_length / rho_size) + 1
ny_rho = int(y_width / rho_size / 2) + 1
nx_phi = int(y_length / ls_grid_size) + 1
ny_phi = int(y_width / ls_grid_size / 2) + 1
npar = nx_rho * ny_rho
ny_rho *= 2
ny_phi *= 2
# Design region size
dr_size_x = (nx_phi - 1) * ls_grid_size
dr_size_y = (ny_phi - 1) * ls_grid_size
dr_center_x = -size_x / 2 + w_length + dr_size_x / 2
# xy coordinates of the parameter and level set grids.
x_rho = np.linspace(dr_center_x - dr_size_x / 2, dr_center_x + dr_size_x / 2, nx_rho)
x_phi = np.linspace(dr_center_x - dr_size_x / 2, dr_center_x + dr_size_x / 2, nx_phi)
y_rho = np.linspace(-dr_size_y / 2, dr_size_y / 2, ny_rho)
y_phi = np.linspace(-dr_size_y / 2, dr_size_y / 2, ny_phi)
Level Set Functions#
We are using autograd to implement a parameterized level set function so the gradients can be back-propagated from the permittivity distribution defined by the zero level set isocontour to the design variables (the control knots of the level set surface). The space between the control knots and the Gaussian function width obtains some control over the minimum feature size. Other types of radial basis functions can also be used in replacement of the Gaussian one employed here, such as
multiquadric splines or b-splines.
[4]:
class LevelSetInterp:
"""This class implements the level set surface using Gaussian radial basis functions."""
def __init__(
self,
x0: anp.ndarray = None,
y0: anp.ndarray = None,
z0: anp.ndarray = None,
sigma: float = None,
):
# Input data.
x, y = anp.meshgrid(y0, x0)
xy0 = anp.column_stack((x.reshape(-1), y.reshape(-1)))
self.xy0 = xy0
self.z0 = z0
self.sig = sigma
# Builds the level set interpolation model.
gauss_kernel = self.gaussian(self.xy0, self.xy0)
self.model = anp.dot(anp.linalg.inv(gauss_kernel), self.z0)
def gaussian(self, xyi, xyj):
dist = anp.sqrt(
(xyi[:, 1].reshape(-1, 1) - xyj[:, 1].reshape(1, -1)) ** 2
+ (xyi[:, 0].reshape(-1, 1) - xyj[:, 0].reshape(1, -1)) ** 2
)
return anp.exp(-(dist**2) / (2 * self.sig**2))
def get_ls(self, x1, y1):
xx, yy = anp.meshgrid(y1, x1)
xy1 = anp.column_stack((xx.reshape(-1), yy.reshape(-1)))
ls = self.gaussian(self.xy0, xy1).T @ self.model
return ls
# Function to plot the level set surface.

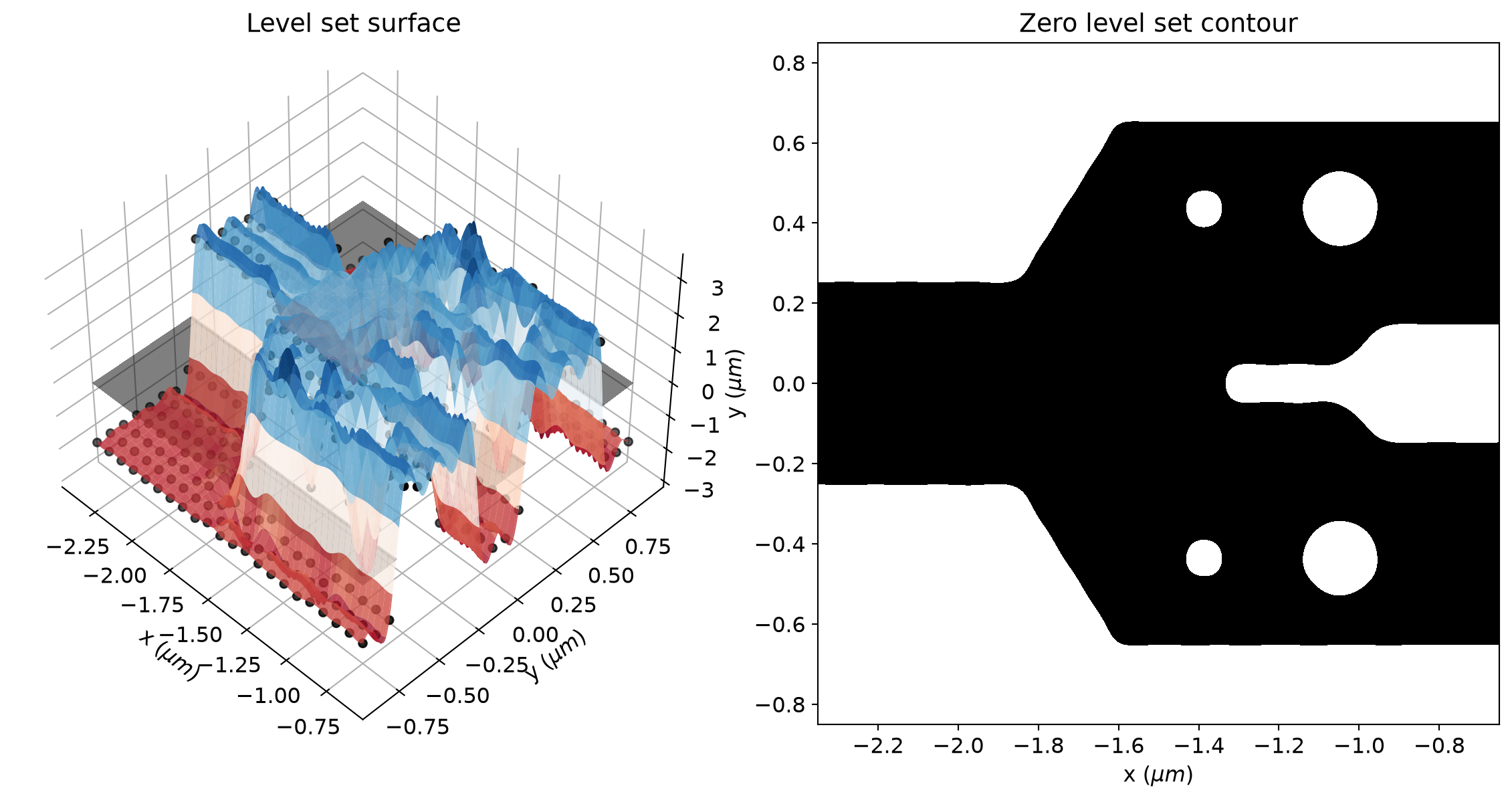

def plot_level_set(x0, y0, rho, x1, y1, phi):
y, x = np.meshgrid(y0, x0)
yy, xx = np.meshgrid(y1, x1)
fig = plt.figure(figsize=(12, 6), tight_layout=True)
ax1 = fig.add_subplot(1, 2, 1, projection="3d")
ax1.view_init(elev=45, azim=-45, roll=0)
ax1.plot_surface(xx, yy, phi, cmap="RdBu", alpha=0.8)
ax1.contourf(
xx,
yy,
phi,
levels=[np.amin(phi), 0],
zdir="z",
offset=0,
colors=["k", "w"],
alpha=0.5,
)
ax1.contour3D(xx, yy, phi, 1, cmap="binary", linewidths=[2])
ax1.scatter(x, y, rho, color="black", linewidth=1.0)
ax1.set_title("Level set surface")
ax1.set_xlabel(r"x ($\mu m$)")
ax1.set_ylabel(r"y ($\mu m$)")
ax1.xaxis.pane.fill = False
ax1.yaxis.pane.fill = False
ax1.zaxis.pane.fill = False
ax1.xaxis.pane.set_edgecolor("w")
ax1.yaxis.pane.set_edgecolor("w")
ax1.zaxis.pane.set_edgecolor("w")
ax2 = fig.add_subplot(1, 2, 2)
ax2.contourf(xx, yy, phi, levels=[0, np.amax(phi)], colors=[[0, 0, 0]])
ax2.set_title("Zero level set contour")
ax2.set_xlabel(r"x ($\mu m$)")
ax2.set_ylabel(r"y ($\mu m$)")
ax2.set_aspect("equal")
plt.show()
To map the permittivities to the zero-level set contour and obtain continuous derivatives, we use a hyperbolic tangent function as an approximation to a Heaviside function. Other smooth functions, such as sigmoid and arctangent, can also be employed. As discussed here, the difference on computed interface using different functions will decrease when reducing the mesh size.
[5]:
def mirror_param(design_param):
param = anp.array(design_param).reshape((nx_rho, int(ny_rho / 2)))
try:
param_minus = param._value.copy()
except:
param_minus = param.copy()
return anp.concatenate((anp.fliplr(param_minus), param), axis=1).flatten()
def get_eps(design_param, sharpness=10.0, plot_levelset=False) -> np.ndarray:
"""Returns the permittivities defined by the zero level set isocontour"""
phi_model = LevelSetInterp(x0=x_rho, y0=y_rho, z0=design_param, sigma=rho_size)
phi = phi_model.get_ls(x1=x_phi, y1=y_phi)
# Calculates the permittivities from the level set surface
eps_phi = 0.5 * (anp.tanh(sharpness * phi) + 1)
eps = eps_min + (eps_max - eps_min) * eps_phi
eps = anp.maximum(eps, eps_min)
eps = anp.minimum(eps, eps_max)
# Reshapes the design parameters into a 2D matrix.
eps = anp.reshape(eps, (nx_phi, ny_phi))
# Plots the level set surface.
if plot_levelset:
rho = np.reshape(design_param, (nx_rho, ny_rho))
phi = np.reshape(phi, (nx_phi, ny_phi))
plot_level_set(x0=x_rho, y0=y_rho, rho=rho, x1=x_phi, y1=y_phi, phi=phi)
return eps
In the next function, the permittivity values are used to build a CustomMedium within the design region.
[6]:
def update_design(eps, unfold=False) -> List[td.Structure]:
# Reflects the structure about the x-axis.
eps_val = anp.array(eps).reshape((nx_phi, ny_phi, 1))
coords_x = [
(dr_center_x - dr_size_x / 2) + ix * ls_grid_size for ix in range(nx_phi)
]
if not unfold:
# Creation of a CustomMedium using the values of the design parameters.
coords_yp = [0 + iy * ls_grid_size for iy in range(int(ny_phi / 2))]
coords = dict(x=coords_x, y=coords_yp, z=[0])
eps_ag = td.SpatialDataArray(eps_val, coords=coords)
eps_medium = td.CustomMedium(permittivity=eps_ag)
box = td.Box(
center=(dr_center_x, dr_size_y / 4, 0),
size=(dr_size_x, dr_size_y / 2, w_thick),
)
structure = [td.Structure(geometry=box, medium=eps_medium)]
else:
# Creation of a CustomMedium using the values of the design parameters.
coords_y = [-dr_size_y / 2 + iy * ls_grid_size for iy in range(ny_phi)]
coords = dict(x=coords_x, y=coords_y, z=[0])
eps_ag = td.SpatialDataArray(eps_val, coords=coords)
eps_medium = td.CustomMedium(permittivity=eps_ag)
box = td.Box(center=(dr_center_x, 0, 0), size=(dr_size_x, dr_size_y, w_thick))
structure = [td.Structure(geometry=box, medium=eps_medium)]
return structure
Initial Structure#
We built an initial y-brach structure containing some holes and different gap sizes to demonstrate how the design evolves under fabrication constraints. We define this structure using a PolySlab object and then translate it into a permittivity grid of the same size as the one used to define the level set function. The holes are introduced in the polygon using the ClipOperation object.
[7]:
vertices = np.array(
[
(-size_x / 2 + w_length, w_width / 2),
(-size_x / 2 + w_length + 0.5, w_width / 2),
(-size_x / 2 + w_length + 0.75, w_gap / 2 + w_width),
(-size_x / 2 + w_length + dr_size_x, w_gap / 2 + w_width),
(-size_x / 2 + w_length + dr_size_x, w_gap / 2),
(-size_x / 2 + w_length + 2.5 * dr_size_x / 3, w_gap / 2),
(-size_x / 2 + w_length + 2.3 * dr_size_x / 3, w_gap / 6),
(-size_x / 2 + w_length + 1.8 * dr_size_x / 3, w_gap / 6),
(-size_x / 2 + w_length + 1.8 * dr_size_x / 3, -w_gap / 6),
(-size_x / 2 + w_length + 2.3 * dr_size_x / 3, -w_gap / 6),
(-size_x / 2 + w_length + 2.5 * dr_size_x / 3, -w_gap / 2),
(-size_x / 2 + w_length + dr_size_x, -w_gap / 2),
(-size_x / 2 + w_length + dr_size_x, -w_gap / 2 - w_width),
(-size_x / 2 + w_length + 0.75, -w_gap / 2 - w_width),
(-size_x / 2 + w_length + 0.5, -w_width / 2),
(-size_x / 2 + w_length, -w_width / 2),
]
)
y_poly = td.PolySlab(vertices=vertices, axis=2, slab_bounds=(-w_thick / 2, w_thick / 2))
y_hole1 = td.Cylinder(
center=(
-size_x / 2 + w_length + 1.7 * dr_size_x / 3,
w_gap / 2 + w_width / 1.75,
0,
),
radius=min_feature_size / 3,
length=w_thick,
axis=2,
)
y_hole2 = td.Cylinder(
center=(
-size_x / 2 + w_length + 1.7 * dr_size_x / 3,
-w_gap / 2 - w_width / 1.75,
0,
),
radius=min_feature_size / 3,
length=w_thick,
axis=2,
)
y_hole3 = td.Cylinder(
center=(
-size_x / 2 + w_length + 2.3 * dr_size_x / 3,
w_gap / 2 + w_width / 1.75,
0,
),
radius=min_feature_size / 1.5,
length=w_thick,
axis=2,
)
y_hole4 = td.Cylinder(
center=(
-size_x / 2 + w_length + 2.3 * dr_size_x / 3,
-w_gap / 2 - w_width / 1.75,
0,
),
radius=min_feature_size / 1.5,
length=w_thick,
axis=2,
)
init_design = td.ClipOperation(
operation="difference", geometry_a=y_poly, geometry_b=y_hole1
)
init_design = td.ClipOperation(
operation="difference", geometry_a=init_design, geometry_b=y_hole2
)
init_design = td.ClipOperation(
operation="difference", geometry_a=init_design, geometry_b=y_hole3
)
init_design = td.ClipOperation(
operation="difference", geometry_a=init_design, geometry_b=y_hole4
)
init_eps = init_design.inside_meshgrid(x=x_phi, y=y_phi, z=np.zeros(1))
init_eps = np.squeeze(init_eps) * eps_max
init_design.plot(z=0)
plt.show()

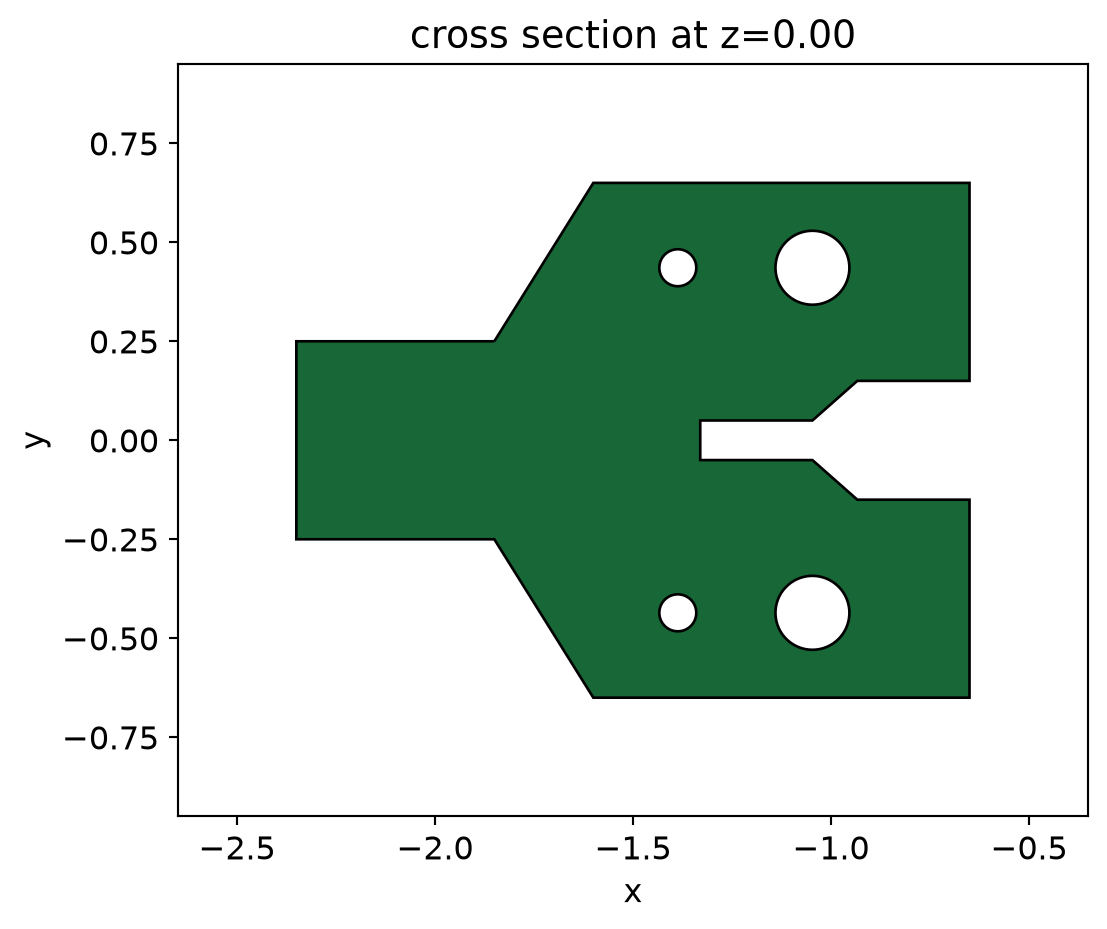

Then an objective function which compares the initial structure and the permittivity distribution generated by the level set zero contour is defined.
[8]:
# Figure of Merit (FOM) calculation.
def fom_eps(eps_ref: anp.ndarray, eps: anp.ndarray) -> float:
"""Calculate the L2 norm between eps_ref and eps."""
return anp.mean((anp.abs(eps_ref - eps) ** 2))
# Objective function to be passed to the optimization algorithm.
def obj_eps(design_param, eps_ref) -> float:
param = mirror_param(design_param)
eps = get_eps(param)
return fom_eps(eps_ref, eps)
# Function to calculate the objective function value and its
# gradient with respect to the design parameters.
obj_grad_eps = value_and_grad(obj_eps)
So, the initial control knots are obtained after fitting the initial structure using the level set function. This is accomplished by minimizing the L2 norm between the reference and the level set generated permittivities. The fitting is performed by the Adam optimizer from the Optax library.
[9]:
# Initialize adam optimizer with starting parameters.
start_par = np.zeros(npar)
optimizer = optax.adam(learning_rate=learning_rate * 10)
opt_state = optimizer.init(start_par)
# Store history
params_eps = np.copy(start_par)
obj_eps = []
for i in range(50):
# Compute gradient and current objective funciton value.
value, gradient = obj_grad_eps(params_eps, init_eps)
# outputs
print(f"Step = {i + 1}")
print(f"\tobj_eps = {value:.4e}")
print(f"\tgrad_norm = {np.linalg.norm(gradient):.4e}")
# Compute and apply updates to the optimizer based on gradient.
updates, opt_state = optimizer.update(gradient, opt_state, params_eps)
params_eps[:] = optax.apply_updates(params_eps, updates)
# Save history.
obj_eps.append(value)
# Gets the final parameters and the objective values history.
init_rho = np.copy(params_eps)
obj_vals_eps = np.array(obj_eps)
Step = 1
obj_eps = 3.6713e+01
grad_norm = 2.1337e+01
Step = 2
obj_eps = 3.7199e+00
grad_norm = 1.5927e+00
Step = 3
obj_eps = 2.5275e+00
grad_norm = 9.0628e-01
Step = 4
obj_eps = 2.2518e+00
grad_norm = 7.9232e-01
Step = 5
obj_eps = 2.1062e+00
grad_norm = 6.8685e-01
Step = 6
obj_eps = 1.9028e+00
grad_norm = 5.7341e-01
Step = 7
obj_eps = 1.6985e+00
grad_norm = 4.3689e-01
Step = 8
obj_eps = 1.5664e+00
grad_norm = 3.5048e-01
Step = 9
obj_eps = 1.5123e+00
grad_norm = 3.2271e-01
Step = 10
obj_eps = 1.5022e+00
grad_norm = 3.3803e-01
Step = 11
obj_eps = 1.4995e+00
grad_norm = 3.5074e-01
Step = 12
obj_eps = 1.4837e+00
grad_norm = 3.4555e-01
Step = 13
obj_eps = 1.4523e+00
grad_norm = 3.2148e-01
Step = 14
obj_eps = 1.4140e+00
grad_norm = 2.8711e-01
Step = 15
obj_eps = 1.3775e+00
grad_norm = 2.4885e-01
Step = 16
obj_eps = 1.3481e+00
grad_norm = 2.1687e-01
Step = 17
obj_eps = 1.3282e+00
grad_norm = 2.0611e-01
Step = 18
obj_eps = 1.3149e+00
grad_norm = 2.0442e-01
Step = 19
obj_eps = 1.3037e+00
grad_norm = 2.0419e-01
Step = 20
obj_eps = 1.2913e+00
grad_norm = 2.0200e-01
Step = 21
obj_eps = 1.2768e+00
grad_norm = 1.9805e-01
Step = 22
obj_eps = 1.2608e+00
grad_norm = 1.9320e-01
Step = 23
obj_eps = 1.2437e+00
grad_norm = 1.8286e-01
Step = 24
obj_eps = 1.2275e+00
grad_norm = 1.6592e-01
Step = 25
obj_eps = 1.2150e+00
grad_norm = 1.5078e-01
Step = 26
obj_eps = 1.2079e+00
grad_norm = 1.3751e-01
Step = 27
obj_eps = 1.2064e+00
grad_norm = 1.2433e-01
Step = 28
obj_eps = 1.2094e+00
grad_norm = 1.2273e-01
Step = 29
obj_eps = 1.2140e+00
grad_norm = 1.2982e-01
Step = 30
obj_eps = 1.2175e+00
grad_norm = 1.3471e-01
Step = 31
obj_eps = 1.2185e+00
grad_norm = 1.3405e-01
Step = 32
obj_eps = 1.2165e+00
grad_norm = 1.2832e-01
Step = 33
obj_eps = 1.2115e+00
grad_norm = 1.1870e-01
Step = 34
obj_eps = 1.2041e+00
grad_norm = 1.0914e-01
Step = 35
obj_eps = 1.1950e+00
grad_norm = 1.0110e-01
Step = 36
obj_eps = 1.1858e+00
grad_norm = 9.3292e-02
Step = 37
obj_eps = 1.1785e+00
grad_norm = 8.7110e-02
Step = 38
obj_eps = 1.1747e+00
grad_norm = 8.5979e-02
Step = 39
obj_eps = 1.1742e+00
grad_norm = 8.8450e-02
Step = 40
obj_eps = 1.1753e+00
grad_norm = 8.9086e-02
Step = 41
obj_eps = 1.1765e+00
grad_norm = 8.4738e-02
Step = 42
obj_eps = 1.1773e+00
grad_norm = 7.6298e-02
Step = 43
obj_eps = 1.1779e+00
grad_norm = 6.8167e-02
Step = 44
obj_eps = 1.1786e+00
grad_norm = 6.5263e-02
Step = 45
obj_eps = 1.1790e+00
grad_norm = 6.7121e-02
Step = 46
obj_eps = 1.1783e+00
grad_norm = 6.8039e-02
Step = 47
obj_eps = 1.1759e+00
grad_norm = 6.4437e-02
Step = 48
obj_eps = 1.1722e+00
grad_norm = 5.7835e-02
Step = 49
obj_eps = 1.1683e+00
grad_norm = 5.2956e-02
Step = 50
obj_eps = 1.1653e+00
grad_norm = 5.2879e-02

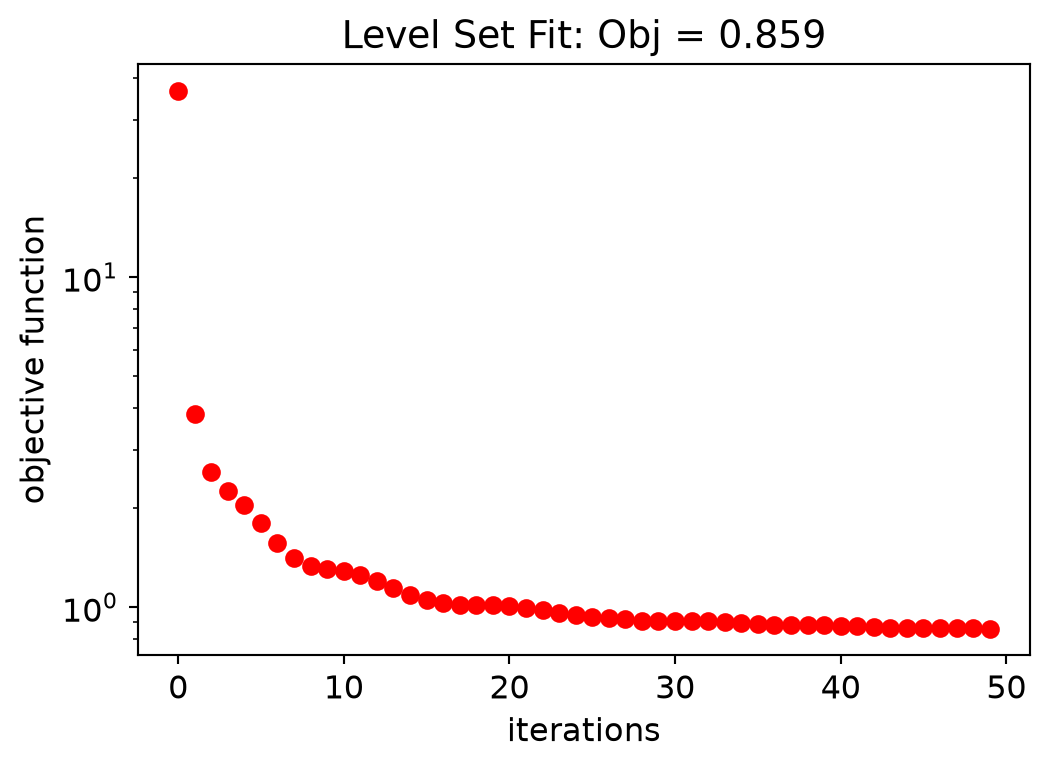

The following graph shows the evolution of the objective function along the initial structure fitting.
[10]:
fig, ax = plt.subplots(1, 1, figsize=(6, 4))
ax.plot(obj_vals_eps, "ro")
ax.set_xlabel("iterations")
ax.set_ylabel("objective function")
ax.set_title(f"Level Set Fit: Obj = {obj_vals_eps[-1]:.3f}")
ax.set_yscale("log")
plt.show()
Here, one can see the initial parameters, which are the control knots defining the level set surface. The geometry of the structure will change as the zero isocontour evolves. The width of the Gaussian radial basis functions and the spacing of the control knots impact the accuracy and the smoothness of the initial zero-level set contour.
[11]:
eps_fit = get_eps(mirror_param(init_rho), plot_levelset=True)
Inverse Design Optimization Set Up#
Next, we will write a function to return the Simulation object. Note that we are using a MeshOverrideStructure to obtain a uniform mesh over the design region.
The elements that do not change along the optimization are defined first.
[12]:
# Input waveguide.
wg_input = td.Structure(
geometry=td.Box.from_bounds(
rmin=(-eff_inf, -w_width / 2, -w_thick / 2),
rmax=(-size_x / 2 + w_length + grid_size, w_width / 2, w_thick / 2),
),
medium=mat_si,
)
# Output bends.
x_start = (
-size_x / 2 + w_length + dr_size_x - grid_size
) # x-coordinate of the starting point of the waveguide bends.
x = np.linspace(
x_start, x_start + bend_length, 100
) # x-coordinates of the top edge vertices.
y = (
(x - x_start) * bend_offset / bend_length
- bend_offset * np.sin(2 * np.pi * (x - x_start) / bend_length) / (np.pi * 2)
+ (w_gap + w_width) / 2
) # y coordinates of the top edge vertices
# adding the last point to include the straight waveguide at the output
x = np.append(x, eff_inf)
y = np.append(y, y[-1])
# add path to the cell
cell = gdstk.Cell("bend")
cell.add(
gdstk.FlexPath(x + 1j * y, w_width, layer=1, datatype=0)
) # Top waveguide bend.
cell.add(
gdstk.FlexPath(x - 1j * y, w_width, layer=1, datatype=0)
) # Bottom waveguide bend.
# Define top waveguide bend structure.
wg_bend_top = td.Structure(
geometry=td.PolySlab.from_gds(
cell,
gds_layer=1,
axis=2,
slab_bounds=(-w_thick / 2, w_thick / 2),
)[1],
medium=mat_si,
)
# Define bottom waveguide bend structure.
wg_bend_bot = td.Structure(
geometry=td.PolySlab.from_gds(
cell,
gds_layer=1,
axis=2,
slab_bounds=(-w_thick / 2, w_thick / 2),
)[0],
medium=mat_si,
)
Monitors used to get simulation data.
[13]:
# Input mode source.
mode_spec = td.ModeSpec(num_modes=1, target_neff=nSi)
source = td.ModeSource(
center=(-size_x / 2 + 0.15 * wl, 0, 0),
size=(0, mon_w, mon_h),
source_time=td.GaussianPulse(freq0=freq, fwidth=freqw),
direction="+",
mode_spec=mode_spec,
mode_index=0,
)
# Monitor where we will compute the objective function from.
fom_monitor_1 = td.ModeMonitor(
center=[size_x / 2 - 0.25 * wl, (w_gap + w_width) / 2 + bend_offset, 0],
size=[0, mon_w, mon_h],
freqs=[freq],
mode_spec=mode_spec,
name=fom_name_1,
)
# Monitors used only to visualize the initial and final y-branch results.
# Field monitors to visualize the final fields.
field_xy = td.FieldMonitor(
size=(td.inf, td.inf, 0),
freqs=[freq],
name="field_xy",
)
# Monitor where we will compute the objective function from.
fom_final_1 = td.ModeMonitor(
center=[size_x / 2 - 0.25 * wl, (w_gap + w_width) / 2 + bend_offset, 0],
size=[0, mon_w, mon_h],
freqs=freqs,
mode_spec=mode_spec,
name="out_1",
)
And then the Simulation is built.
[14]:
def make_adjoint_sim(design_param, unfold=True) -> td.Simulation:
# Builds the design region from the design parameters.
eps = get_eps(design_param)
design_structure = update_design(eps, unfold=unfold)
# Creates a uniform mesh for the design region.
adjoint_dr_mesh = td.MeshOverrideStructure(
geometry=td.Box(
center=(dr_center_x, 0, 0), size=(dr_size_x, dr_size_y, w_thick)
),
dl=[grid_size, grid_size, grid_size],
enforce=True,
)
return td.Simulation(
size=[size_x, size_y, size_z],
center=[0, 0, 0],
grid_spec=td.GridSpec.auto(
wavelength=wl_max,
min_steps_per_wvl=15,
override_structures=[adjoint_dr_mesh],
),
symmetry=(0, -1, 1),
structures=[wg_input, wg_bend_top, wg_bend_bot] + design_structure,
sources=[source],
monitors=[fom_monitor_1],
run_time=run_time,
subpixel=True,
)

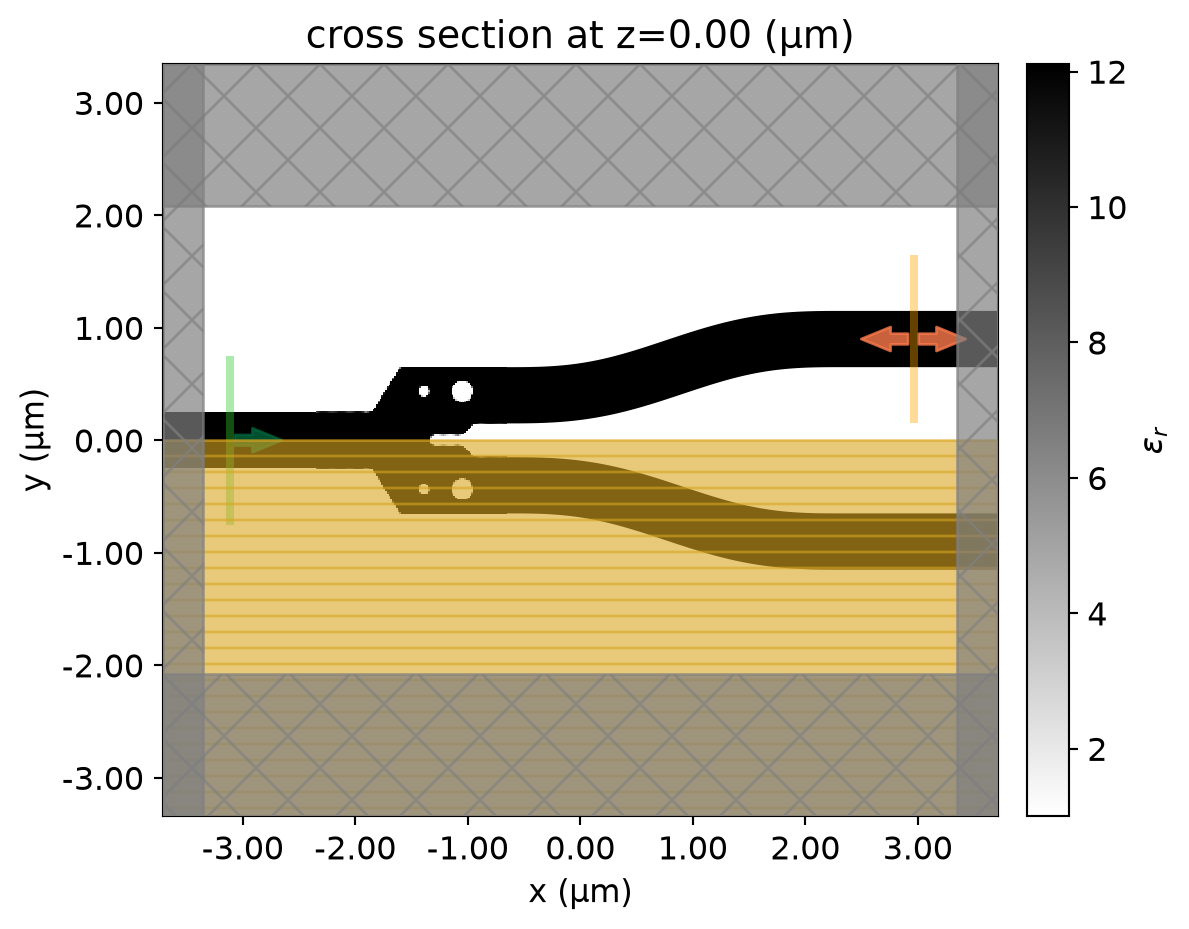

Letβs visualize the simulation setup and verify if all the elements are in their correct places. Differently from the density-based methods, we will start from a fully binarized structure.
[15]:
init_design = make_adjoint_sim(mirror_param(init_rho), unfold=True)
fig, ax1 = plt.subplots(1, 1, tight_layout=True, figsize=(8, 5))
init_design.plot_eps(z=0, ax=ax1)
plt.show()
Now, we will run a simulation to see how this non-optimized y-branch performs.
[16]:
sim_init = init_design.copy(update=dict(monitors=(field_xy, fom_final_1)))
sim_data = web.run(sim_init, task_name="initial y-branch")
16:55:25 EST Created task 'initial y-branch' with task_id 'fdve-d06c0408-e197-4e04-9efa-ecefe636a69a' and task_type 'FDTD'.
View task using web UI at 'https://tidy3d.simulation.cloud/workbench?taskId=fdve-d06c0408-e19 7-4e04-9efa-ecefe636a69a'.
16:55:33 EST Maximum FlexCredit cost: 0.025. Minimum cost depends on task execution details. Use 'web.real_cost(task_id)' to get the billed FlexCredit cost after a simulation run.
16:55:34 EST status = queued
To cancel the simulation, use 'web.abort(task_id)' or 'web.delete(task_id)' or abort/delete the task in the web UI. Terminating the Python script will not stop the job running on the cloud.
16:55:54 EST status = preprocess
16:55:56 EST starting up solver
running solver
16:56:10 EST early shutoff detected at 56%, exiting.
status = postprocess
16:56:13 EST status = success
16:56:14 EST View simulation result at 'https://tidy3d.simulation.cloud/workbench?taskId=fdve-d06c0408-e19 7-4e04-9efa-ecefe636a69a'.
16:56:20 EST loading simulation from simulation_data.hdf5

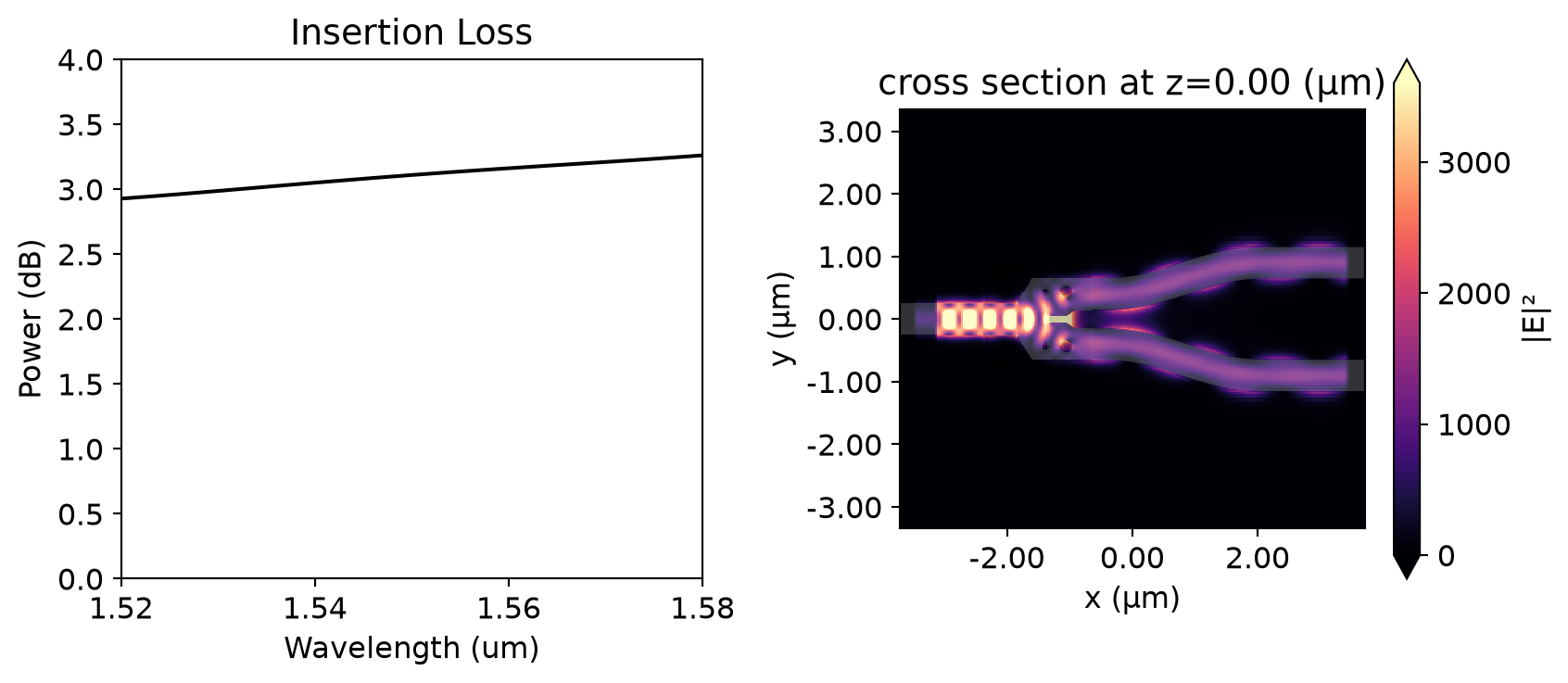

We will use the insertion loss (IL) to compare the device response before and after the optimization. Since we will use symmetry about the y-axis, the insertion loss is calculated as \(IL = -10 log(2P_{1}/P_{in})\), where \(P_{1}\) is the power coupled into the upper s-bend and \(P_{in}\) is the unit input power. The insertion loss of the non-optimized y-branch is above 3 dB at 1.55 \(\mu m\). From the field distribution image, we can realize that it happens because much of
the input power is reflected.
[17]:
coeffs_f = sim_data["out_1"].amps.sel(direction="+")
power_1 = np.abs(coeffs_f.sel(mode_index=0)) ** 2
power_1_db = -10 * np.log10(2 * power_1)
f, (ax1, ax2) = plt.subplots(1, 2, figsize=(9, 4), tight_layout=True)
ax1.plot(wl_range, power_1_db, "-k")
ax1.set_xlabel("Wavelength (um)")
ax1.set_ylabel("Power (dB)")
ax1.set_ylim(0, 4)
ax1.set_xlim(wl - bw / 2, wl + bw / 2)
ax1.set_title("Insertion Loss")
sim_data.plot_field("field_xy", "E", "abs^2", z=0, ax=ax2)
plt.show()
Fabrication Constraints#

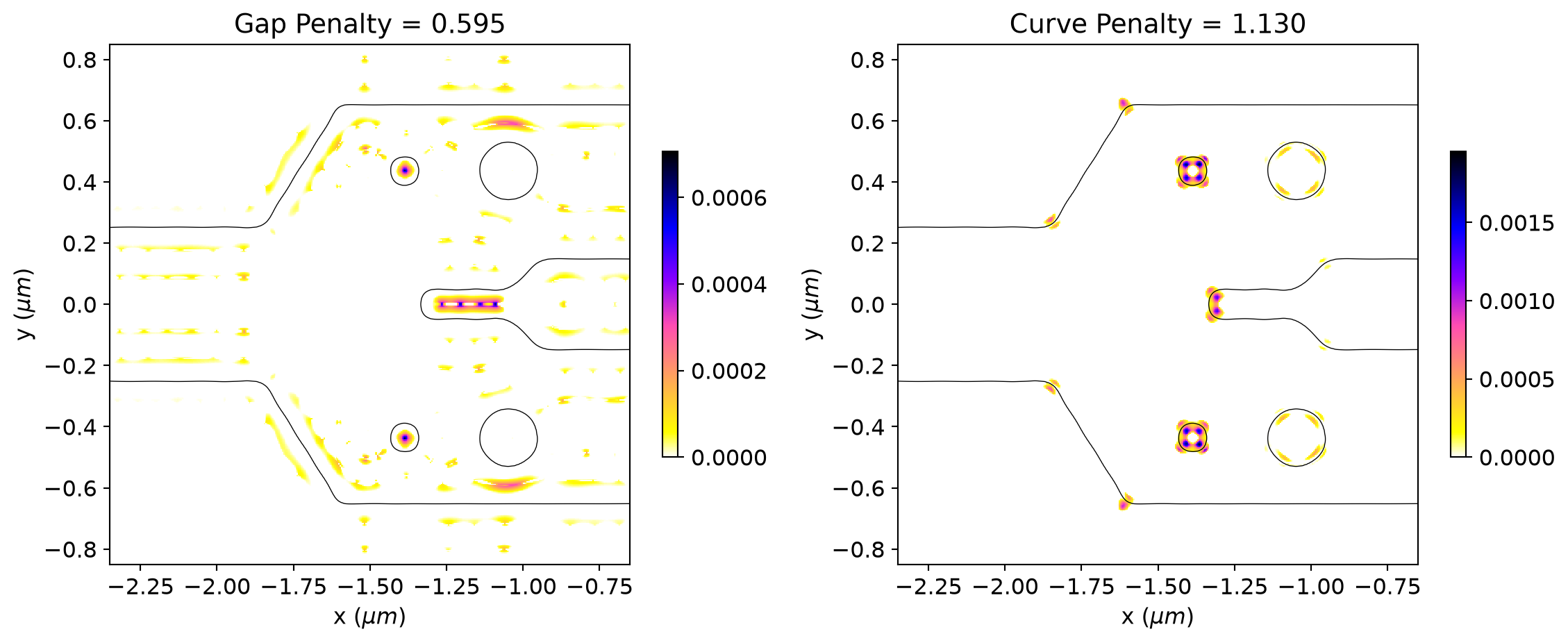

Fabrication constraints are introduced in the optimization as penalty terms to control the minimum gap (\(f_{g}\)) and radius of curvature (\(f_{c}\)) in the final design. Below, we use autograd to define the penalty terms following the formulation presented in D. Vercruysse, N. V. Sapra, L. Su, R. Trivedi, and J. VuΔkoviΔ, "Analytical level set fabrication constraints for inverse design," Scientific Reports 9, 8999 (2019). DOI:
10.1038/s41598-019-45026-0. The gap penalty function controls the minimum feature size by limiting the second derivative based on the value of the function at that point. The curvature constraint is only relevant at the device boundary, where \(\phi = 0\), so we apply the smoothed Heaviside function to the level set surface before calculating the derivatives.
[18]:
# Auxiliary function to calculate first and second order partial derivatives.
def ls_derivatives(phi, d_size):
SC = 1e-12
phi_1 = anp.array(anp.gradient(phi)) / d_size
phi_x = phi_1[0] + SC
phi_y = phi_1[1] + SC
phi_2x = anp.array(anp.gradient(phi_x)) / d_size
phi_2y = anp.array(anp.gradient(phi_y)) / d_size
phi_xx = phi_2x[0]
phi_xy = phi_2x[1]
phi_yy = phi_2y[1]
return phi_x, phi_y, phi_xx, phi_xy, phi_yy
# Minimum gap size fabrication constraint integrand calculation.
# The "beta" parameter relax the constraint near the zero plane.
def fab_penalty_ls_gap(
params, beta=1, min_feature_size=min_feature_size, grid_size=ls_grid_size
):
# Get the level set surface.
phi_model = LevelSetInterp(x0=x_rho, y0=y_rho, z0=params, sigma=rho_size)
phi = phi_model.get_ls(x1=x_phi, y1=y_phi)
phi = anp.reshape(phi, (nx_phi, ny_phi))
# Calculates their derivatives.
phi_x, phi_y, phi_xx, phi_xy, phi_yy = ls_derivatives(phi, grid_size)
# Calculates the gap penalty over the level set grid.
pi_d = np.pi / (1.3 * min_feature_size)
phi_v = anp.maximum(anp.power(phi_x**2 + phi_y**2, 0.5), anp.power(1e-32, 1 / 4))
phi_vv = (
phi_x**2 * phi_xx + 2 * phi_x * phi_y * phi_xy + phi_y**2 * phi_yy
) / phi_v**2
return (
anp.maximum((anp.abs(phi_vv) / (pi_d * anp.abs(phi) + beta * phi_v) - pi_d), 0)
* grid_size**2
)
# Minimum radius of curvature fabrication constraint integrand calculation.
# The "alpha" parameter controls its relative weight to the gap penalty.
# The "sharpness" parameter controls the smoothness of the surface near the zero-contour.
def fab_penalty_ls_curve(
params,
alpha=1,
sharpness=1,
min_feature_size=min_feature_size,
grid_size=ls_grid_size,
):
# Get the permittivity surface and calculates their derivatives.
eps = get_eps(params, sharpness=sharpness)
eps_x, eps_y, eps_xx, eps_xy, eps_yy = ls_derivatives(eps, grid_size)
# Calculates the curvature penalty over the permittivity grid.
pi_d = np.pi / (1.1 * min_feature_size)
eps_v = anp.maximum(anp.sqrt(eps_x**2 + eps_y**2), anp.power(1e-32, 1 / 6))
k = (eps_x**2 * eps_yy - 2 * eps_x * eps_y * eps_xy + eps_y**2 * eps_xx) / eps_v**3
curve_const = anp.abs(k * anp.arctan(eps_v / eps)) - pi_d
curve_const = anp.nan_to_num(curve_const)
return alpha * anp.maximum(curve_const, 0) * grid_size**2
# Gap and curvature fabrication constraints calculation.
# Penalty values are normalized by "norm_gap" and "norm_curve".
def fab_penalty_ls(
params,
beta=gap_par,
alpha=curve_par,
sharpness=4,
min_feature_size=min_feature_size,
grid_size=ls_grid_size,
norm_gap=1,
norm_curve=1,
):
# Get the gap penalty fabrication constraint value.
gap_penalty_int = fab_penalty_ls_gap(
params=params, beta=beta, min_feature_size=min_feature_size, grid_size=grid_size
)
gap_penalty_int = anp.nan_to_num(gap_penalty_int)
gap_penalty = anp.sum(gap_penalty_int) / norm_gap
# Get the curvature penalty fabrication constraint value.
curve_penalty_int = fab_penalty_ls_curve(
params=params,
alpha=alpha,
sharpness=sharpness,
min_feature_size=min_feature_size,
grid_size=grid_size,
)
curve_penalty_int = anp.nan_to_num(curve_penalty_int)
curve_penalty = anp.sum(curve_penalty_int) / norm_curve
return gap_penalty, curve_penalty
Now, we will calculate the initial penalty function values and observe the regions of the initial design that violate the constraints. The gap and curvature penalty functions are normalized by their initial values along the optimization to better balance the weights of device response and fabrication penalty within the objective function.
[19]:
# Initial values of gap and curvature fabrication constraints.
init_fab_gap, init_fab_curve = fab_penalty_ls(mirror_param(init_rho))
# Visualization of gap and curvature fabrication constraints values.
gap_penalty_int = fab_penalty_ls_gap(mirror_param(init_rho), beta=gap_par)
curve_penalty_int = fab_penalty_ls_curve(
mirror_param(init_rho), alpha=curve_par, sharpness=4
)
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(12, 8), tight_layout=True)
yy, xx = np.meshgrid(y_phi, x_phi)
im = ax1.imshow(
np.flipud(gap_penalty_int.T),
extent=[x_phi[0], x_phi[-1], y_phi[0], y_phi[-1]],
interpolation="none",
cmap="gnuplot2_r",
)
ax1.contour(xx, yy, eps_fit, [(eps_min + eps_max) / 2], colors="k", linewidths=0.5)
ax1.set_title(f"Gap Penalty = {init_fab_gap:.3f}")
ax1.set_xlabel(r"x ($\mu m$)")
ax1.set_ylabel(r"y ($\mu m$)")
fig.colorbar(im, ax=ax1, shrink=0.3)
im = ax2.imshow(
anp.flipud(curve_penalty_int.T),
extent=[x_phi[0], x_phi[-1], y_phi[0], y_phi[-1]],
interpolation="none",
cmap="gnuplot2_r",
)
ax2.contour(xx, yy, eps_fit, [(eps_min + eps_max) / 2], colors="k", linewidths=0.5)
ax2.set_title(f"Curve Penalty = {init_fab_curve:.3f}")
ax2.set_xlabel(r"x ($\mu m$)")
ax2.set_ylabel(r"y ($\mu m$)")
fig.colorbar(im, ax=ax2, shrink=0.3)
plt.show()
Running the Optimization#
The figure-of-merit used in the y-branch optimization is the power (\(P_{1, 2}\)) coupled into the fundamental transverse electric mode of the output waveguides. We will set mirror symmetry about the y-axis in the optimization, so we must include only \(P_{1}\) in the figure-of-merit. As we are using a minimization strategy, the coupled power and fabrication constraints are arranged within the objective function as \(|0.5 - P_{1}| + w_{f} \times (f_{g} + f_{c})\), where
\(w_{f}\) is the fabrication constraint weight, whereas \(f_{g}\) and \(f_{c}\) are the gap and curvature penalty values.
[20]:
# Figure of Merit (FOM) calculation.
def fom(sim_data: td.SimulationData) -> float:
"""Return the power at the mode index of interest."""
output_amps1 = sim_data[fom_name_1].amps
amp1 = output_amps1.sel(direction="+", f=freq, mode_index=0)
eta1 = anp.sum(anp.nan_to_num(anp.abs(amp1.values)) ** 2)
return anp.abs(0.5 - eta1), eta1
# Objective function to be passed to the optimization algorithm.
def obj(
design_param,
fab_const: float = 0.0,
norm_gap=1.0,
norm_curve=1.0,
verbose: bool = False,
) -> float:
param = mirror_param(design_param)
sim = make_adjoint_sim(param)
sim_data = web.run(sim, task_name="inv_des_ybranch", verbose=verbose)
fom_val, eta1 = fom(sim_data)
fab_gap, fab_curve = fab_penalty_ls(param, norm_gap=norm_gap, norm_curve=norm_curve)
J = fom_val + fab_const * (fab_gap + fab_curve)
aux_data = anp.array([sim_data, getval(eta1), getval(fab_gap), getval(fab_curve)])
return (J, aux_data)
# Function to calculate the objective function value and its
# gradient with respect to the design parameters.
obj_grad = value_and_grad(obj, has_aux=True)
Optimizer initialization
[30]:
# where to store history
history_fname = "./misc/y_branch_fab.pkl"
def save_history(history_dict: dict) -> None:
"""Convenience function to save the history to file."""
with open(history_fname, "wb") as file:
pickle.dump(history_dict, file)
def load_history() -> dict:
"""Convenience method to load the history from file."""
with open(history_fname, "rb") as file:
history_dict = pickle.load(file)
return history_dict
Before starting, we will look for data from a previous optimization.
[31]:
# Initialize adam optimizer with starting parameters.
optimizer = optax.adam(learning_rate=learning_rate * 8)
try:
history_dict = load_history()
opt_state = history_dict["opt_states"][-1]
params = history_dict["params"][-1]
num_iters_completed = len(history_dict["params"])
print("Loaded optimization checkpoint from file.")
print(
f"Found {num_iters_completed} iterations previously completed out of {iterations} total."
)
if num_iters_completed < iterations:
print(f"Will resume optimization.")
else:
print("Optimization completed, will return results.")
except (FileNotFoundError, IndexError):
params = np.array(init_rho)
opt_state = optimizer.init(params)
history_dict = dict(
values=[],
eta1=[],
penalty_gap=[],
penalty_curve=[],
params=[],
gradients=[],
opt_states=[opt_state],
data=[],
)
Loaded optimization checkpoint from file.
Found 10 iterations previously completed out of 100 total.
Will resume optimization.
Now, we are ready to run the optimization!
[32]:
td.config.logging_level = "WARNING"
iter_done = len(history_dict["values"])
fab_const = 0.05
param_eps = anp.array(get_eps(mirror_param(anp.array(params))))
param_shape = param_eps.shape
param_eps = param_eps.flatten()
if iter_done < iterations:
for i in range(iter_done, iterations):
params = anp.array(params)
(value, gradient), aux = obj_grad(
params,
fab_const=fab_const,
norm_gap=init_fab_gap,
norm_curve=init_fab_curve,
)
sim_data_i, eta1, penalty_gap, penalty_curve = aux
gradient = np.nan_to_num(gradient)
gradient = np.array(gradient)
params = np.array(params)
# outputs
print(f"Step = {i + 1}")
print(f"\tobj_val = {value:.4e}")
print(f"\tgrad_norm = {np.linalg.norm(gradient):.4e}")
print(f"\teta1 = {eta1:.3f}")
print(f"\tpenalty gap = {penalty_gap:.3f}")
print(f"\tpenalty curve = {penalty_curve:.3f}")
# Compute and apply updates to the optimizer based on gradient.
updates, opt_state = optimizer.update(gradient, opt_state, params)
params = optax.apply_updates(params, updates)
# Save history.
history_dict["values"].append(value)
history_dict["eta1"].append(eta1)
history_dict["penalty_gap"].append(penalty_gap)
history_dict["penalty_curve"].append(penalty_curve)
history_dict["params"].append(params)
history_dict["gradients"].append(gradient)
history_dict["opt_states"].append(opt_state)
# history_dict["data"].append(sim_data_i) # Uncomment to store data, can create large files.
save_history(history_dict)
Step = 11
obj_val = 1.2943e-01
grad_norm = 1.7714e-02
eta1 = 0.450
penalty gap = 0.454
penalty curve = 1.143
Step = 12
obj_val = 1.2689e-01
grad_norm = 1.6205e-02
eta1 = 0.451
penalty gap = 0.406
penalty curve = 1.151
Step = 13
obj_val = 1.2559e-01
grad_norm = 1.6872e-02
eta1 = 0.452
penalty gap = 0.398
penalty curve = 1.154
Step = 14
obj_val = 1.2424e-01
grad_norm = 1.7161e-02
eta1 = 0.455
penalty gap = 0.437
penalty curve = 1.156
Step = 15
obj_val = 1.2171e-01
grad_norm = 1.5970e-02
eta1 = 0.459
penalty gap = 0.454
penalty curve = 1.155
Step = 16
obj_val = 1.1861e-01
grad_norm = 1.4249e-02
eta1 = 0.461
penalty gap = 0.453
penalty curve = 1.144
Step = 17
obj_val = 1.1520e-01
grad_norm = 1.1090e-02
eta1 = 0.463
penalty gap = 0.433
penalty curve = 1.139
Step = 18
obj_val = 1.1267e-01
grad_norm = 9.8923e-03
eta1 = 0.466
penalty gap = 0.422
penalty curve = 1.147
Step = 19
obj_val = 1.1127e-01
grad_norm = 1.0036e-02
eta1 = 0.468
penalty gap = 0.422
penalty curve = 1.166
Step = 20
obj_val = 1.0990e-01
grad_norm = 1.0350e-02
eta1 = 0.470
penalty gap = 0.419
penalty curve = 1.186
Step = 21
obj_val = 1.0884e-01
grad_norm = 9.0695e-03
eta1 = 0.473
penalty gap = 0.415
penalty curve = 1.213
Step = 22
obj_val = 1.0822e-01
grad_norm = 8.8240e-03
eta1 = 0.474
penalty gap = 0.409
penalty curve = 1.236
Step = 23
obj_val = 1.0734e-01
grad_norm = 7.9110e-03
eta1 = 0.475
penalty gap = 0.397
penalty curve = 1.259
Step = 24
obj_val = 1.0520e-01
grad_norm = 8.6939e-03
eta1 = 0.478
penalty gap = 0.392
penalty curve = 1.275
Step = 25
obj_val = 1.0393e-01
grad_norm = 7.5662e-03
eta1 = 0.480
penalty gap = 0.387
penalty curve = 1.285
Step = 26
obj_val = 1.0295e-01
grad_norm = 8.0280e-03
eta1 = 0.480
penalty gap = 0.378
penalty curve = 1.285
Step = 27
obj_val = 1.0144e-01
grad_norm = 8.1235e-03
eta1 = 0.481
penalty gap = 0.370
penalty curve = 1.280
Step = 28
obj_val = 9.9614e-02
grad_norm = 8.0931e-03
eta1 = 0.482
penalty gap = 0.362
penalty curve = 1.274
Step = 29
obj_val = 9.7756e-02
grad_norm = 7.7039e-03
eta1 = 0.483
penalty gap = 0.350
penalty curve = 1.260
Step = 30
obj_val = 9.6145e-02
grad_norm = 7.2064e-03
eta1 = 0.483
penalty gap = 0.337
penalty curve = 1.250
Step = 31
obj_val = 9.4441e-02
grad_norm = 7.0064e-03
eta1 = 0.484
penalty gap = 0.328
penalty curve = 1.239
Step = 32
obj_val = 9.3156e-02
grad_norm = 6.4534e-03
eta1 = 0.485
penalty gap = 0.324
penalty curve = 1.231
Step = 33
obj_val = 9.1917e-02
grad_norm = 6.3749e-03
eta1 = 0.485
penalty gap = 0.320
penalty curve = 1.224
Step = 34
obj_val = 9.0441e-02
grad_norm = 5.6786e-03
eta1 = 0.486
penalty gap = 0.313
penalty curve = 1.215
Step = 35
obj_val = 8.8957e-02
grad_norm = 5.0368e-03
eta1 = 0.487
penalty gap = 0.305
penalty curve = 1.204
Step = 36
obj_val = 8.7263e-02
grad_norm = 5.1283e-03
eta1 = 0.487
penalty gap = 0.292
penalty curve = 1.191
Step = 37
obj_val = 8.5531e-02
grad_norm = 6.0348e-03
eta1 = 0.487
penalty gap = 0.280
penalty curve = 1.169
Step = 38
obj_val = 8.3944e-02
grad_norm = 5.6733e-03
eta1 = 0.487
penalty gap = 0.274
penalty curve = 1.147
Step = 39
obj_val = 8.2242e-02
grad_norm = 5.8104e-03
eta1 = 0.487
penalty gap = 0.270
penalty curve = 1.121
Step = 40
obj_val = 8.0946e-02
grad_norm = 4.9765e-03
eta1 = 0.487
penalty gap = 0.263
penalty curve = 1.099
Step = 41
obj_val = 7.9940e-02
grad_norm = 5.1740e-03
eta1 = 0.487
penalty gap = 0.257
penalty curve = 1.081
Step = 42
obj_val = 7.8715e-02
grad_norm = 5.9043e-03
eta1 = 0.487
penalty gap = 0.254
penalty curve = 1.059
Step = 43
obj_val = 7.7338e-02
grad_norm = 5.8827e-03
eta1 = 0.487
penalty gap = 0.248
penalty curve = 1.036
Step = 44
obj_val = 7.5729e-02
grad_norm = 4.7129e-03
eta1 = 0.487
penalty gap = 0.242
penalty curve = 1.013
Step = 45
obj_val = 7.4264e-02
grad_norm = 5.3247e-03
eta1 = 0.487
penalty gap = 0.242
penalty curve = 0.988
Step = 46
obj_val = 7.2776e-02
grad_norm = 6.5325e-03
eta1 = 0.487
penalty gap = 0.233
penalty curve = 0.963
Step = 47
obj_val = 7.0770e-02
grad_norm = 5.4997e-03
eta1 = 0.487
penalty gap = 0.226
penalty curve = 0.926
Step = 48
obj_val = 6.8658e-02
grad_norm = 4.2604e-03
eta1 = 0.487
penalty gap = 0.220
penalty curve = 0.887
Step = 49
obj_val = 6.7640e-02
grad_norm = 9.6688e-03
eta1 = 0.486
penalty gap = 0.213
penalty curve = 0.855
Step = 50
obj_val = 6.5610e-02
grad_norm = 6.7300e-03
eta1 = 0.486
penalty gap = 0.208
penalty curve = 0.825
Step = 51
obj_val = 6.3720e-02
grad_norm = 5.9419e-03
eta1 = 0.486
penalty gap = 0.199
penalty curve = 0.797
Step = 52
obj_val = 6.2505e-02
grad_norm = 8.2201e-03
eta1 = 0.486
penalty gap = 0.195
penalty curve = 0.774
Step = 53
obj_val = 6.0646e-02
grad_norm = 5.4477e-03
eta1 = 0.487
penalty gap = 0.187
penalty curve = 0.758
Step = 54
obj_val = 5.9361e-02
grad_norm = 6.6901e-03
eta1 = 0.487
penalty gap = 0.177
penalty curve = 0.745
Step = 55
obj_val = 5.8282e-02
grad_norm = 7.3320e-03
eta1 = 0.487
penalty gap = 0.171
penalty curve = 0.730
Step = 56
obj_val = 5.6635e-02
grad_norm = 5.2800e-03
eta1 = 0.487
penalty gap = 0.166
penalty curve = 0.711
Step = 57
obj_val = 5.5668e-02
grad_norm = 8.3509e-03
eta1 = 0.487
penalty gap = 0.157
penalty curve = 0.693
Step = 58
obj_val = 5.4736e-02
grad_norm = 4.9623e-03
eta1 = 0.487
penalty gap = 0.155
penalty curve = 0.678
Step = 59
obj_val = 5.4408e-02
grad_norm = 8.4652e-03
eta1 = 0.486
penalty gap = 0.153
penalty curve = 0.662
Step = 60
obj_val = 5.3516e-02
grad_norm = 8.6287e-03
eta1 = 0.486
penalty gap = 0.150
penalty curve = 0.649
Step = 61
obj_val = 5.2271e-02
grad_norm = 4.6221e-03
eta1 = 0.487
penalty gap = 0.146
penalty curve = 0.640
Step = 62
obj_val = 5.2018e-02
grad_norm = 7.3210e-03
eta1 = 0.487
penalty gap = 0.141
penalty curve = 0.635
Step = 63
obj_val = 5.1301e-02
grad_norm = 5.7673e-03
eta1 = 0.487
penalty gap = 0.140
penalty curve = 0.625
Step = 64
obj_val = 5.0504e-02
grad_norm = 6.1558e-03
eta1 = 0.487
penalty gap = 0.136
penalty curve = 0.615
Step = 65
obj_val = 4.9705e-02
grad_norm = 6.8600e-03
eta1 = 0.487
penalty gap = 0.133
penalty curve = 0.607
Step = 66
obj_val = 4.7998e-02
grad_norm = 3.9180e-03
eta1 = 0.488
penalty gap = 0.129
penalty curve = 0.596
Step = 67
obj_val = 4.7197e-02
grad_norm = 6.1392e-03
eta1 = 0.488
penalty gap = 0.120
penalty curve = 0.586
Step = 68
obj_val = 4.6247e-02
grad_norm = 5.2772e-03
eta1 = 0.488
penalty gap = 0.114
penalty curve = 0.574
Step = 69
obj_val = 4.5750e-02
grad_norm = 4.9164e-03
eta1 = 0.488
penalty gap = 0.112
penalty curve = 0.563
Step = 70
obj_val = 4.5618e-02
grad_norm = 1.0569e-02
eta1 = 0.488
penalty gap = 0.111
penalty curve = 0.553
Step = 71
obj_val = 4.4603e-02
grad_norm = 4.2136e-03
eta1 = 0.488
penalty gap = 0.107
penalty curve = 0.547
Step = 72
obj_val = 4.4090e-02
grad_norm = 7.9281e-03
eta1 = 0.488
penalty gap = 0.104
penalty curve = 0.539
Step = 73
obj_val = 4.3476e-02
grad_norm = 6.0468e-03
eta1 = 0.488
penalty gap = 0.103
penalty curve = 0.529
Step = 74
obj_val = 4.2614e-02
grad_norm = 6.0159e-03
eta1 = 0.488
penalty gap = 0.100
penalty curve = 0.511
Step = 75
obj_val = 4.1663e-02
grad_norm = 8.3960e-03
eta1 = 0.487
penalty gap = 0.094
penalty curve = 0.486
Step = 76
obj_val = 4.0675e-02
grad_norm = 5.1439e-03
eta1 = 0.487
penalty gap = 0.092
penalty curve = 0.464
Step = 77
obj_val = 3.9863e-02
grad_norm = 6.3941e-03
eta1 = 0.487
penalty gap = 0.089
penalty curve = 0.441
Step = 78
obj_val = 3.9174e-02
grad_norm = 7.4129e-03
eta1 = 0.486
penalty gap = 0.084
penalty curve = 0.423
Step = 79
obj_val = 3.8342e-02
grad_norm = 6.5192e-03
eta1 = 0.486
penalty gap = 0.080
penalty curve = 0.412
Step = 80
obj_val = 3.7704e-02
grad_norm = 4.5646e-03
eta1 = 0.486
penalty gap = 0.076
penalty curve = 0.402
Step = 81
obj_val = 3.7486e-02
grad_norm = 6.2053e-03
eta1 = 0.486
penalty gap = 0.072
penalty curve = 0.390
Step = 82
obj_val = 3.7282e-02
grad_norm = 9.2255e-03
eta1 = 0.485
penalty gap = 0.068
penalty curve = 0.384
Step = 83
obj_val = 3.7029e-02
grad_norm = 9.0898e-03
eta1 = 0.485
penalty gap = 0.067
penalty curve = 0.381
Step = 84
obj_val = 3.5926e-02
grad_norm = 5.5964e-03
eta1 = 0.486
penalty gap = 0.065
penalty curve = 0.369
Step = 85
obj_val = 3.5173e-02
grad_norm = 4.1220e-03
eta1 = 0.486
penalty gap = 0.064
penalty curve = 0.357
Step = 86
obj_val = 3.4885e-02
grad_norm = 6.8407e-03
eta1 = 0.486
penalty gap = 0.062
penalty curve = 0.352
Step = 87
obj_val = 3.4167e-02
grad_norm = 6.4070e-03
eta1 = 0.486
penalty gap = 0.061
penalty curve = 0.339
Step = 88
obj_val = 3.3490e-02
grad_norm = 4.6060e-03
eta1 = 0.486
penalty gap = 0.060
penalty curve = 0.322
Step = 89
obj_val = 3.2924e-02
grad_norm = 6.9168e-03
eta1 = 0.485
penalty gap = 0.059
penalty curve = 0.303
Step = 90
obj_val = 3.2298e-02
grad_norm = 7.9010e-03
eta1 = 0.485
penalty gap = 0.060
penalty curve = 0.283
Step = 91
obj_val = 3.1774e-02
grad_norm = 8.3796e-03
eta1 = 0.485
penalty gap = 0.060
penalty curve = 0.268
Step = 92
obj_val = 3.1542e-02
grad_norm = 5.6212e-03
eta1 = 0.485
penalty gap = 0.064
penalty curve = 0.267
Step = 93
obj_val = 3.1559e-02
grad_norm = 5.3865e-03
eta1 = 0.485
penalty gap = 0.065
penalty curve = 0.272
Step = 94
obj_val = 3.1271e-02
grad_norm = 5.5228e-03
eta1 = 0.485
penalty gap = 0.064
penalty curve = 0.269
Step = 95
obj_val = 3.0530e-02
grad_norm = 3.8695e-03
eta1 = 0.485
penalty gap = 0.058
penalty curve = 0.260
Step = 96
obj_val = 3.0527e-02
grad_norm = 5.0364e-03
eta1 = 0.485
penalty gap = 0.058
penalty curve = 0.258
Step = 97
obj_val = 3.0481e-02
grad_norm = 6.4596e-03
eta1 = 0.485
penalty gap = 0.058
penalty curve = 0.257
Step = 98
obj_val = 3.0098e-02
grad_norm = 4.6421e-03
eta1 = 0.485
penalty gap = 0.058
penalty curve = 0.247
Step = 99
obj_val = 2.9881e-02
grad_norm = 4.4214e-03
eta1 = 0.485
penalty gap = 0.059
penalty curve = 0.240
Step = 100
obj_val = 2.9865e-02
grad_norm = 7.4931e-03
eta1 = 0.485
penalty gap = 0.063
penalty curve = 0.232
[33]:
obj_vals = np.array(history_dict["values"])
eta1_vals = np.array(history_dict["eta1"])
pen_gap_vals = np.array(history_dict["penalty_gap"])
pen_curve_vals = np.array(history_dict["penalty_curve"])
final_par = history_dict["params"][-1]
Optimization Results#
Below, we can see how the device response and fabrication penalty have evolved throughout the optimization. The coupling into the output waveguide improves quickly in the beginning at the expense of higher penalty values. Then, the penalty values decrease linearly after the device response achieves a near-optimal condition. This trend results from the small weight factor we have chosen for the fabrication penalty terms.
[34]:

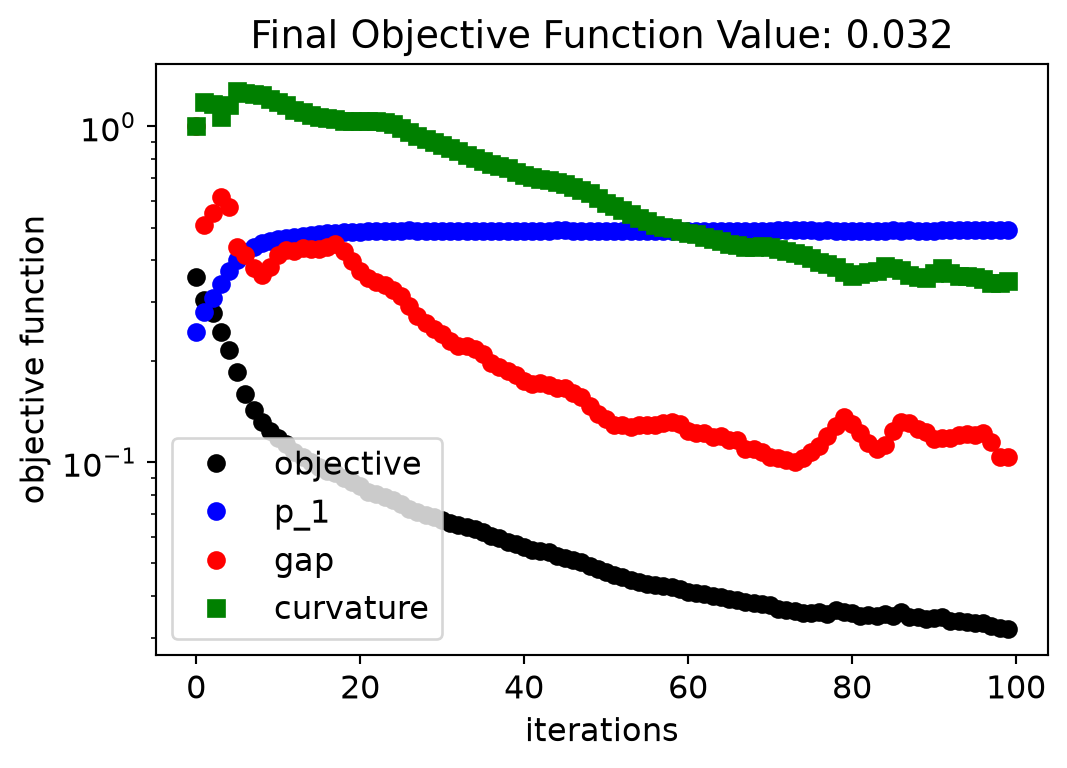

fig, ax = plt.subplots(1, 1, figsize=(6, 4))
ax.plot(obj_vals, "ko", label="objective")
ax.plot(eta1_vals, "bo", label="p_1")
ax.plot(pen_gap_vals, "ro", label="gap")
ax.plot(pen_curve_vals, "gs", label="curvature")
ax.set_xlabel("iterations")
ax.set_ylabel("objective function")
ax.legend()
ax.set_yscale("log")
ax.set_title(f"Final Objective Function Value: {obj_vals[-1]:.3f}")
plt.show()
The optimization process obtained a smooth and well-defined geometry.
[38]:
eps_final = get_eps(mirror_param(final_par), plot_levelset=True)
We can also see a significant reduction in violations to the minimum feature size after the optimization, which results in a smoother structure. The optimized device has not matched the minimum feature size exactly. The minimum radius of curvature and gap size are about 30% higher and 20% lower than the reference feature size, respectively. This deviation is expected, as reported in the previous paper. In this regard, running the simulation longer, adjusting the penalty weight or compensating for the reference feature size could improve the results.
[39]:
# Initial values of gap and curvature fabrication constraints.
final_fab_gap, final_fab_curve = fab_penalty_ls(mirror_param(final_par))
# Visualization of gap and curvature fabrication constraints values.
gap_penalty_int = fab_penalty_ls_gap(mirror_param(final_par), beta=gap_par)
curve_penalty_int = fab_penalty_ls_curve(
mirror_param(final_par), alpha=curve_par, sharpness=4
)
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(12, 8), tight_layout=True)
yy, xx = np.meshgrid(y_phi, x_phi)
im = ax1.imshow(
np.flipud(gap_penalty_int.T),
extent=[x_phi[0], x_phi[-1], y_phi[0], y_phi[-1]],
interpolation="none",
cmap="gnuplot2_r",
)
ax1.contour(xx, yy, eps_final, [(eps_min + eps_max) / 2], colors="k", linewidths=0.5)
ax1.set_title(f"Gap Penalty = {final_fab_gap:.3f}")
ax1.set_xlabel(r"x ($\mu m$)")
ax1.set_ylabel(r"y ($\mu m$)")
fig.colorbar(im, ax=ax1, shrink=0.3)
im = ax2.imshow(
anp.flipud(curve_penalty_int.T),
extent=[x_phi[0], x_phi[-1], y_phi[0], y_phi[-1]],
interpolation="none",
cmap="gnuplot2_r",
)
ax2.contour(xx, yy, eps_final, [(eps_min + eps_max) / 2], colors="k", linewidths=0.5)
ax2.set_title(f"Curve Penalty = {final_fab_curve:.3f}")
ax2.set_xlabel(r"x ($\mu m$)")
ax2.set_ylabel(r"y ($\mu m$)")
fig.colorbar(im, ax=ax2, shrink=0.3)
plt.show()

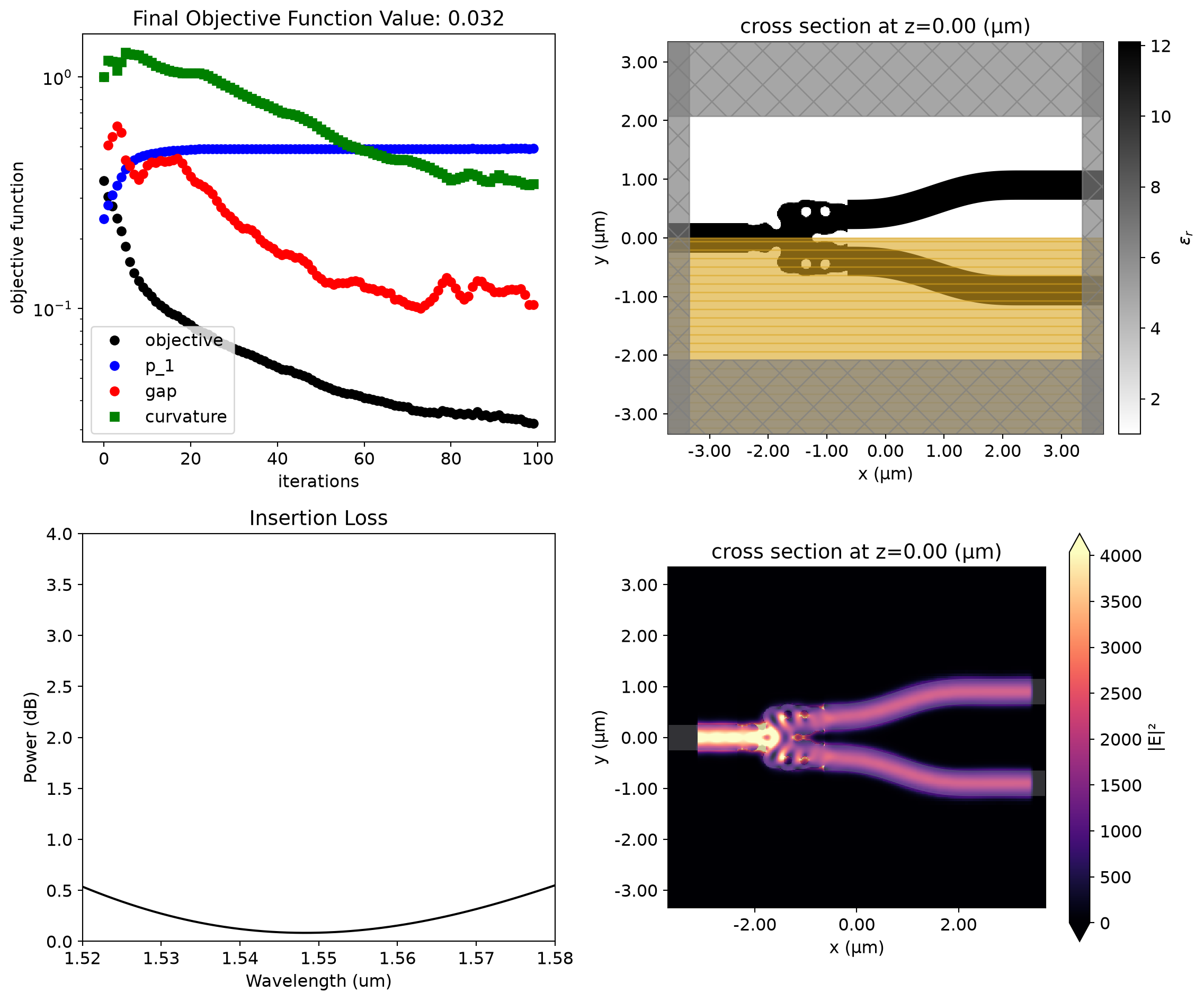

Once the inverse design is complete, we can visualize the field distributions and the wavelength dependent insertion loss.
[40]:
sim_final = make_adjoint_sim(mirror_param(final_par), unfold=True)
sim_final = sim_final.copy(update=dict(monitors=(field_xy, fom_final_1)))
sim_data_final = web.run(sim_final, task_name="inv_des_final")
07:48:26 EST Created task 'inv_des_final' with task_id 'fdve-c1eed91c-8e73-4647-8ed1-cb289e7de3ce' and task_type 'FDTD'.
View task using web UI at 'https://tidy3d.simulation.cloud/workbench?taskId=fdve-c1eed91c-8e7 3-4647-8ed1-cb289e7de3ce'.
07:48:35 EST Maximum FlexCredit cost: 0.025. Minimum cost depends on task execution details. Use 'web.real_cost(task_id)' to get the billed FlexCredit cost after a simulation run.
07:48:36 EST status = queued
To cancel the simulation, use 'web.abort(task_id)' or 'web.delete(task_id)' or abort/delete the task in the web UI. Terminating the Python script will not stop the job running on the cloud.
07:48:49 EST status = preprocess
07:48:53 EST starting up solver
running solver
07:49:19 EST early shutoff detected at 60%, exiting.
status = postprocess
07:49:22 EST status = success
View simulation result at 'https://tidy3d.simulation.cloud/workbench?taskId=fdve-c1eed91c-8e7 3-4647-8ed1-cb289e7de3ce'.
07:49:29 EST loading simulation from simulation_data.hdf5
The resulting structure shows good performance, presenting insertion loss of only 0.1 dB near the central wavelength.
[41]:
mode_amps = sim_data_final["out_1"]
coeffs_f = mode_amps.amps.sel(direction="+")
power_1 = np.abs(coeffs_f.sel(mode_index=0)) ** 2
power_1_db = -10 * np.log10(2 * power_1)
f, ax = plt.subplots(2, 2, figsize=(12, 10), tight_layout=True)
sim_final.plot_eps(z=0, source_alpha=0, monitor_alpha=0, ax=ax[0, 1])
ax[1, 0].plot(wl_range, power_1_db, "-k")
ax[1, 0].set_xlabel("Wavelength (um)")
ax[1, 0].set_ylabel("Power (dB)")
ax[1, 0].set_ylim(0, 4)
ax[1, 0].set_xlim(wl - bw / 2, wl + bw / 2)
ax[1, 0].set_title("Insertion Loss")
sim_data_final.plot_field("field_xy", "E", "abs^2", z=0, ax=ax[1, 1])
ax[0, 0].plot(obj_vals, "ko", label="objective")
ax[0, 0].plot(eta1_vals, "bo", label="p_1")
ax[0, 0].plot(pen_gap_vals, "ro", label="gap")
ax[0, 0].plot(pen_curve_vals, "gs", label="curvature")
ax[0, 0].set_xlabel("iterations")
ax[0, 0].set_ylabel("objective function")
ax[0, 0].legend()
ax[0, 0].set_yscale("log")
ax[0, 0].set_title(f"Final Objective Function Value: {obj_vals[-1]:.3f}")
plt.show()
Export to GDS#
The Simulation object has the .to_gds_file convenience function to export the final design to a GDS file. In addition to a file name, it is necessary to set a cross-sectional plane (z = 0 in this case) on which to evaluate the geometry, a frequency to evaluate the permittivity, and a permittivity_threshold to define the shape boundaries in custom
mediums. See the GDS export notebook for a detailed example on using .to_gds_file and other GDS related functions.
[42]:
sim_final.to_gds_file(
fname="./misc/inv_des_ybranch.gds",
z=0,
permittivity_threshold=(eps_max + eps_min) / 2,
frequency=freq,
)
