Planar Helical Antenna Array

Download as:

Quarto (.qmd)

Helical antennas enable easier polarization matching, and thus a stronger received signal, than a combination of linearly polarized antennas which typically require complicated and lossy polarization switching circuits.

Although helical antennas are typically curved 3D structures, planar designs using vias have been proposed in literature. This notebook simulates such a quasi-planar design. The limited angular coverage of a single antenna is counteracted by introducing a phased array of 8 elements.

The array demonstrated in this notebook is designed to operate near the 28 GHz 5G high band, based on the design proposed by Syrytsin et al. in [1].

In [1]:

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import flex_rf.tidy3d as rf
import flex_rf.web as web
rf.config.logging.level = 'ERROR'

Building the Simulation

Key Parameters

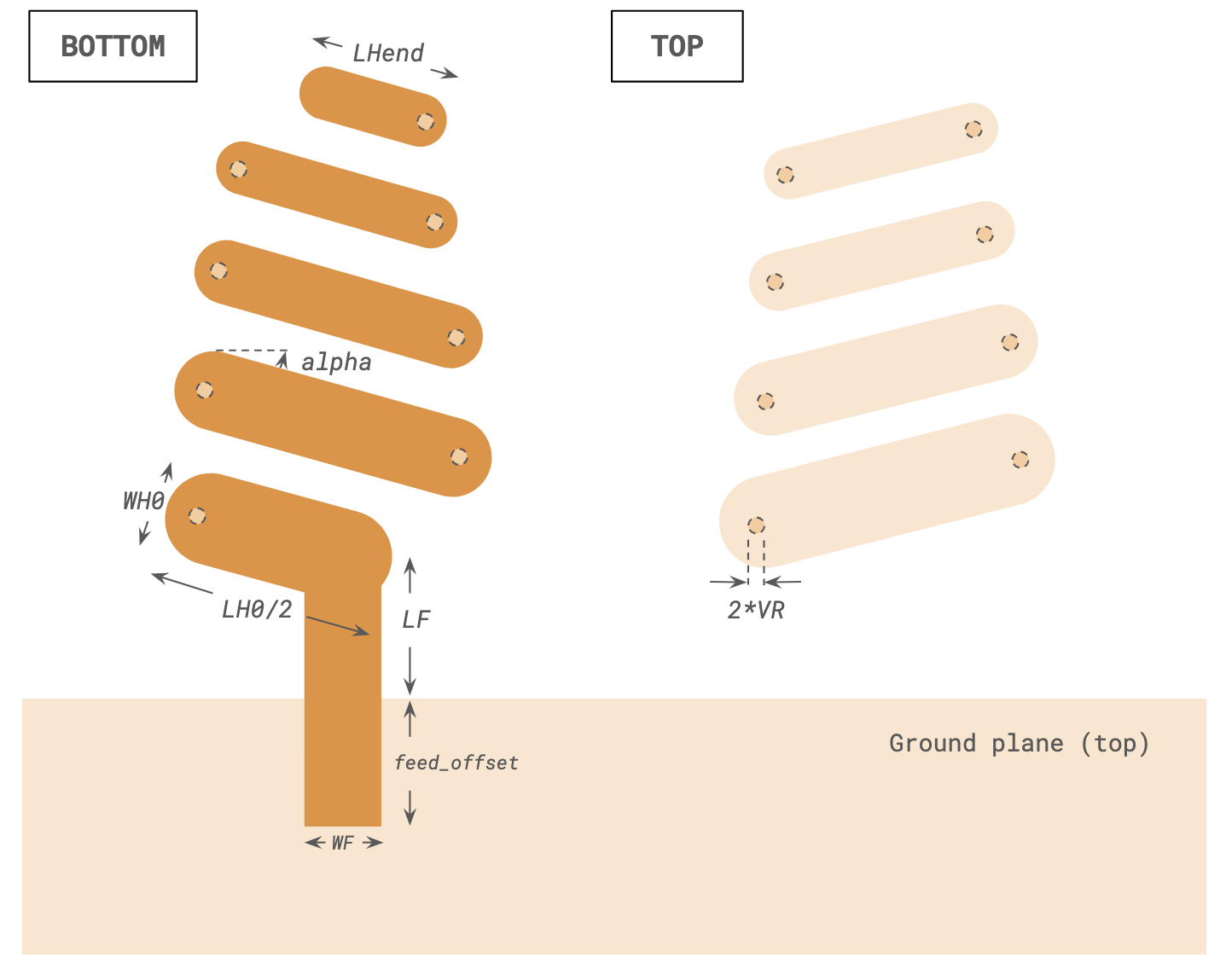

Key geometry dimensions are defined below. Missing measurements are estimated visually based on available information in [1].

In [2]:

mm = 1000  # Conversion factor to micron (default unit)

# Feed line
LF, WF = (1.486 * mm, 0.85 * mm)  # Length and width of feed line
feed_offset = 5 * mm  # Length of feed line overhang

# Helical antenna design
alpha = 15 / 180 * np.pi  # Helix pitch angle
ratio = 0.96  # Size ratio per turn
LH0, WH0 = (3.9 * mm, 0.97 * mm)  # Initial size of trace
LHend = 1.65 * mm  # Final size of 1/8 turn trace
VR = 0.1 * mm  # Via radius

# Phased array parameters
spacing = 5.17 * mm  # Spacing between elements
N_ant = 8  # Number of elements in array

# Substrate/layer dimensions
T = 0.035 * mm  # Trace thickness
H = 1 * mm  # Substrate thickness
Lgnd, Wgnd = (60 * mm, 120 * mm)  # Size of ground plane
Lsub, Wsub = (60 * mm, 129 * mm)  # Size of substrate

The design frequency in [1] is the 28 GHz band of the 5G spectrum. Our approximate design has a central frequency of 29.5 GHz.

In [3]:

# Frequencies and bandwidth
(f_min, f_max) = (20e9, 36e9)
f_target = 29.5e9  # target operating frequency
freqs = np.unique(np.append(np.linspace(f_min, f_max, 201), f_target))

Medium and Structures

The substrate is Rogers RT5880 and the trace material is copper. Both materials are assumed to have constant loss over the frequency range.

In [4]:

med_lossy_sub = rf.FastDispersionFitter.constant_loss_tangent_model(2.2, 0.0009, (f_min, f_max))
med_metal = rf.LossyMetalMedium(conductivity=58, frequency_range=(f_min, f_max))

Best weighted RMS error: 1.34e-06 ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 100% 0:00:00

We commence to build the geometry below. Because of the repetitive nature of the design, we make use of user-defined functions to create the geometry. First, we define a function to create the planar traces of the helical structure.

In [5]:

def create_trace(size, angle, start_pt, rounded_ends=True):
    """Create trace geometry of given size and angle at start_pt."""
    lt, wt = size
    x0, y0, z0 = start_pt
    x1, y1 = (x0 + lt * np.cos(angle), y0 + lt * np.sin(angle))
    verts = [
        (x0 + wt / 2 * np.sin(angle), y0 - wt / 2 * np.cos(angle)),
        (x0 - wt / 2 * np.sin(angle), y0 + wt / 2 * np.cos(angle)),
        (x1 - wt / 2 * np.sin(angle), y1 + wt / 2 * np.cos(angle)),
        (x1 + wt / 2 * np.sin(angle), y1 - wt / 2 * np.cos(angle)),
    ]
    geom1 = rf.PolySlab(vertices=verts, axis=2, slab_bounds=(z0, z0 + T))
    if rounded_ends:
        geom1 += rf.Cylinder(axis=2, center=(x0, y0, z0 + T / 2), length=T, radius=wt / 2)
        geom1 += rf.Cylinder(axis=2, center=(x1, y1, z0 + T / 2), length=T, radius=wt / 2)
    return geom1, (x1, y1)

The next function creates the vias forming the vertical transition of each helical turn. Note that the user-defined function also optionally returns a MeshOverrideStructure for mesh refinement purposes. This will be used later in the Grid section.

In [6]:

def create_via(center, radius, length, mesh_override=False, dl=None):
    """Create vertical via in helix antenna"""
    geom = rf.Cylinder(axis=2, center=center, radius=radius, length=length)
    if mesh_override:
        rbox = rf.MeshOverrideStructure(geometry=geom.bounding_box, dl=dl)
        return geom, rbox
    else:
        return geom, None

Now, we define a function that creates one single helical turn. The clip_end and end_length options allow for the turn to end prematurely, as in the final turn of the overall helical structure. In addition to the created geometries, the function also returns the start position of the next turn to enable easy generation of multiple turns. The MeshOverrideStructure instances for the vertical vias are also returned if enabled.

In [7]:

def create_planar_helical_turn(
    start_pt,
    start_size,
    ratio,
    helix_angle,
    via_radius,
    thickness,
    clip_end=False,
    end_length=None,
    mesh_override=False,
    dl=None,
):
    """Creates one turn of a planar helical antenna"""
    x0, y0, z0 = start_pt
    lt0, wt0 = start_size
    wt1 = wt0 * ratio
    lt1 = end_length * ratio if clip_end else lt0 * ratio

    # Via
    g1, rbox1 = create_via(
        center=(x0, y0, z0), radius=via_radius, length=thickness, mesh_override=mesh_override, dl=dl
    )
    # Top
    g2, (x1, y1) = create_trace(
        size=(lt0, wt0), angle=helix_angle, start_pt=(x0, y0, z0 + thickness / 2)
    )
    # Via
    g3, rbox2 = create_via(
        center=(x1, y1, z0), radius=via_radius, length=thickness, mesh_override=mesh_override, dl=dl
    )
    # Btm
    g4, (x2, y2) = create_trace(
        size=(lt1, wt1), angle=np.pi - helix_angle, start_pt=(x1, y1, z0 - thickness / 2 - T)
    )

    return rf.GeometryGroup(geometries=[g1, g2, g3, g4]), (x2, y2), [rbox1, rbox2]

Finally, the function below creates the whole antenna structure.

In [8]:

def create_planar_antenna(
    start_pt,
    start_size,
    turns,
    ratio,
    via_radius,
    helix_angle,
    thickness,
    mesh_override=False,
    dl=None,
):
    """Create planar helical antenna based on [1]"""
    # if turns < 1 return nothing
    if turns <= 1:
        return None

    # Create first 1/8th of a turn
    x0, y0, z0 = start_pt
    lt0, wt0 = start_size
    geom_ant, (x_next, y_next) = create_trace(
        size=(lt0 / 2, wt0), angle=np.pi - helix_angle, start_pt=(x0, y0, z0 - thickness / 2 - T)
    )

    # iterate over turns
    rbox_list = []
    lt, wt = (lt0 * ratio, wt0 * ratio)
    for ii in range(turns):
        clip_end = ii == turns - 1
        gturn, (x_next, y_next), rboxes = create_planar_helical_turn(
            start_pt=(x_next, y_next, z0),
            start_size=(lt, wt),
            ratio=ratio,
            helix_angle=helix_angle,
            via_radius=via_radius,
            thickness=thickness,
            clip_end=clip_end,
            end_length=LHend,
            mesh_override=mesh_override,
            dl=dl,
        )
        geom_ant += gturn
        rbox_list += rboxes
        lt, wt = (lt * ratio * ratio, wt * ratio * ratio)

    return geom_ant, rbox_list

We make use of the previously defined functions to create all the necessary geometry. Note that we also define rbox_list_ant that stores a list of MeshOverrideStructures around each vertical via.

In [9]:

# Create geometries
geom_list_ant = []
rbox_list_ant = []  # List of mesh refinement geometries
geom_list_feed = []
xstart = -(N_ant - 1) / 2 * spacing

# Use for loop to create each antenna in the array
for ii in range(N_ant):
    xpos = xstart + ii * spacing
    g_ant, rbox_ant = create_planar_antenna(
        start_pt=(xpos, LF, -H / 2),
        start_size=(LH0, WH0),
        turns=4,
        ratio=ratio,
        via_radius=VR,
        helix_angle=alpha,
        thickness=H,
        mesh_override=True,
        dl=(VR / 2, VR / 2, None),
    )
    geom_list_ant += [g_ant]
    rbox_list_ant += rbox_ant
    geom_list_feed += [
        rf.Box.from_bounds(rmin=(xpos - WF / 2, -feed_offset, -H - T), rmax=(xpos + WF / 2, LF, -H))
    ]

geom_ant = rf.GeometryGroup(geometries=geom_list_ant)
geom_feed = rf.GeometryGroup(geometries=geom_list_feed)
geom_gnd = rf.Box.from_bounds(rmin=(-Lgnd / 2, -Wgnd, 0), rmax=(Lgnd / 2, 0, T))
geom_sub = rf.Box.from_bounds(rmin=(-Lsub / 2, -Wgnd, -H), rmax=(Lsub / 2, Wsub - Wgnd, 0))

The geometries are then combined with materials into Structure instances ready for simulation.

In [10]:

# Create structures
str_sub = rf.Structure(geometry=geom_sub, medium=med_lossy_sub)
str_gnd = rf.Structure(geometry=geom_gnd, medium=med_metal)
str_feed = rf.Structure(geometry=geom_feed, medium=med_metal)
str_ant = rf.Structure(geometry=geom_ant, medium=med_metal)

structure_list = [str_sub, str_gnd, str_feed, str_ant]

Grid and Boundaries

As is standard for antenna simulations, we introduce a wavelength/2 padding on all sides to the simulation boundary. The boundaries are automatically terminated with Perfectly Matched Layers (PMLs) by default.

In [11]:

# Define simulation size and center
padding = rf.C_0 / f_min / 2
sim_LX = Lsub + 2 * padding
sim_LY = Wsub + 2 * padding
sim_LZ = H + 2 * padding
sim_center = geom_sub.center

We define LayerRefinementSpec instances to automatically refine the mesh along each metal plane.

In [12]:

# Define layer refinement
lr_options = {
    "corner_refinement": rf.GridRefinement(dl=0.5 * mm, num_cells=2),
    "min_steps_along_axis": 1,
    "axis": 2,
}
lr1 = rf.LayerRefinementSpec(
    center=(0, 0, T / 2),
    size=(rf.inf, rf.inf, T),
    min_steps_along_axis=1,
    axis=2,
    corner_finder=None,
)
lr2 = rf.LayerRefinementSpec(
    center=(0, 0, -H - T / 2),
    size=(rf.inf, rf.inf, T),
    min_steps_along_axis=1,
    axis=2,
    corner_finder=None,
)

The overall grid specification is defined below. The maximum grid size is set based on the user-specified number of steps per minimum wavelength. The previously defined rbox_list_ant is also included so that the vertical vias have adequate resolution to ensure electrical connectivity.

In [13]:

# Define overall grid specification
grid_spec = rf.GridSpec.auto(
    wavelength=rf.C_0 / f_max,
    min_steps_per_wvl=20,
    layer_refinement_specs=[lr1, lr2],
    override_structures=rbox_list_ant,
)

Monitors

We define a field monitor for near-field visualization.

In [14]:

# Field Monitor
mon_1 = rf.FieldMonitor(
    center=(0, 0, -H / 2),
    size=(rf.inf, rf.inf, 0),
    freqs=[f_min, f_target, f_max],
    name="field in-plane",
)

To calculate the far-field radiation pattern, we define a DirectivityMonitor below. Note that the azimuthal angle phi should range between $0$ and $2\pi$ (as opposed to $-\pi$ to $\pi$) for the phased array calculations later.

In [15]:

# Directivity Monitor
theta = np.linspace(0, np.pi, 91)
phi = np.linspace(0, 2 * np.pi, 181)
mon_radiation = rf.DirectivityMonitor(
    center=sim_center,
    size=(0.9 * sim_LX, 0.9 * sim_LY, 0.9 * sim_LZ),
    freqs=[f_target],
    name="radiation",
    phi=phi,
    theta=theta,
)

Ports

The antenna array is excited by an array of lumped ports located at the end of each feed line. The ports are numbered 1-8 from left to right.

In [16]:

# Create lumped ports
Zref = 100
port_list = []
for ii in range(N_ant):
    xpos = xstart + ii * spacing
    port_list += [
        rf.LumpedPort(
            center=(xpos, -feed_offset, -H / 2),
            size=(WF, 0, H),
            voltage_axis=2,
            name=f"LP{ii + 1}",
            impedance=Zref,
        )
    ]

Defining Simulation and TerminalComponentModeler

The overall simulation and TerminalComponentModeler instances are defined below.

In [17]:

sim = rf.Simulation(
    size=(sim_LX, sim_LY, sim_LZ),
    center=sim_center,
    grid_spec=grid_spec,
    structures=structure_list,
    monitors=[mon_1],
    run_time=3e-9,
    plot_length_units="mm",
)

tcm = rf.TerminalComponentModeler(
    simulation=sim,
    ports=port_list,
    freqs=freqs,
    radiation_monitors=[mon_radiation],
)

Visualization

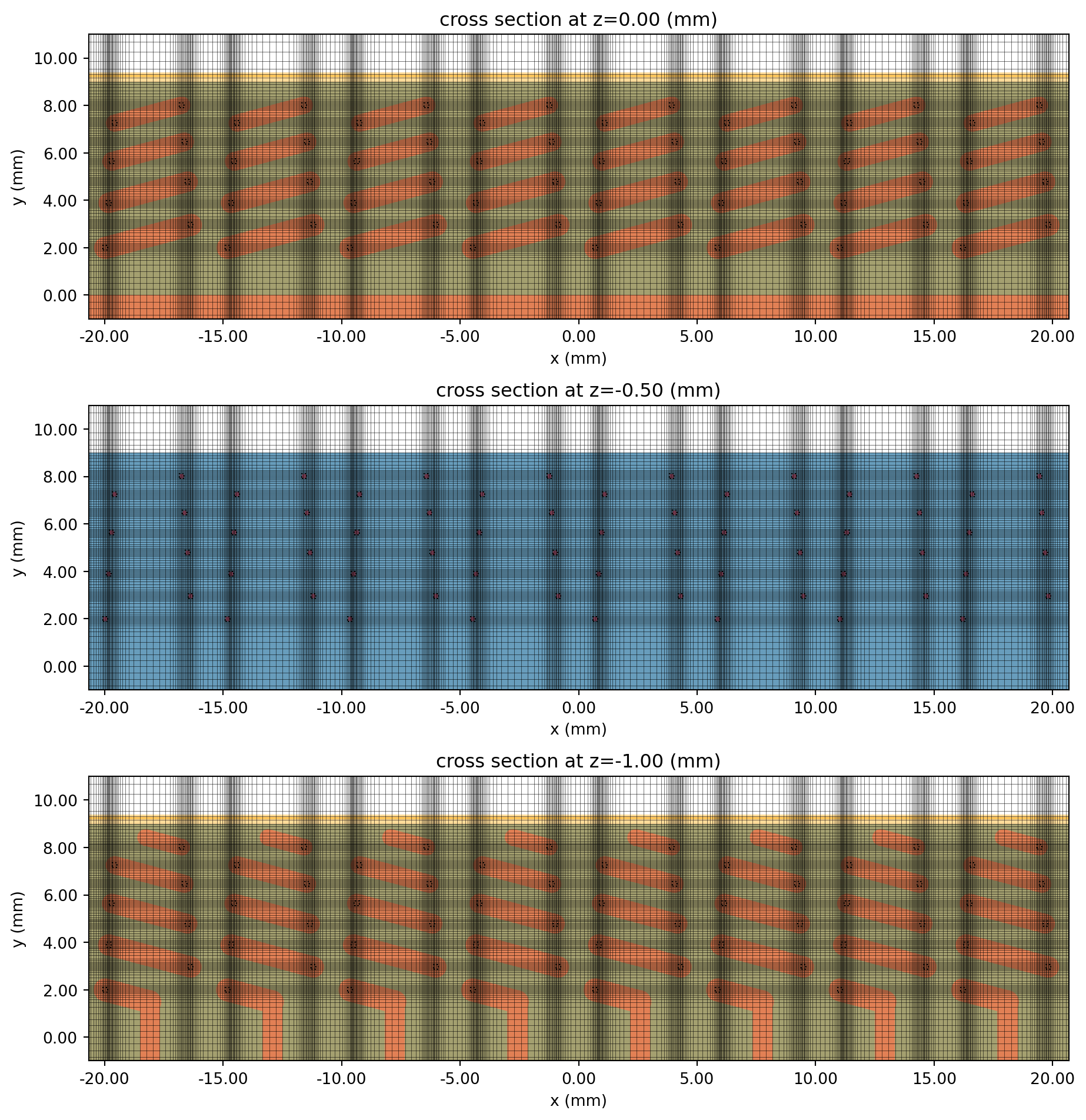

Before running the simulation, we visualize the setup and grid below.

In [18]:

# Plot structures and grid on each layer (or interface between two layers)
fig, ax = plt.subplots(3, 1, figsize=(10, 10), tight_layout=True)
tcm.plot_sim(z=0, ax=ax[0])
tcm.simulation.plot_grid(z=0, ax=ax[0])
tcm.plot_sim(z=-H / 2, ax=ax[1], monitor_alpha=0)
tcm.simulation.plot_grid(z=-H / 2, ax=ax[1])
tcm.plot_sim(z=-H, ax=ax[2])
tcm.simulation.plot_grid(z=-H, ax=ax[2])
for axis in ax:
    axis.set_xlim(-N_ant / 2 * spacing, N_ant / 2 * spacing)
    axis.set_ylim(-1 * mm, 11 * mm)
plt.show()

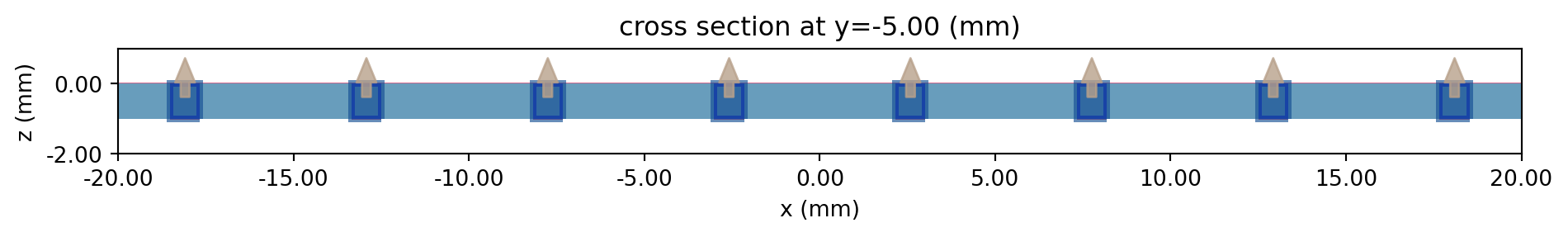

In [19]:

# Show lumped ports
fig, ax = plt.subplots(figsize=(10, 4), tight_layout=True)
tcm.plot_sim(y=-feed_offset, ax=ax, monitor_alpha=0)
ax.set_xlim(-20 * mm, 20 * mm)
ax.set_ylim(-2 * mm, 1 * mm)
plt.show()

In [20]:

# Show set up in 3D viewer
sim.plot_3d()

Running the Simulation

The simulation is executed below.

In [21]:

tcm_data = web.run(
    tcm, task_name="planar_helical_antenna_array", path="data/planar_helical_ant_array.hdf5", verbose=False
)

Results

Near-field Profile

The field monitor data corresponding to lumped port 4 is loaded below.

In [22]:

sim_data = tcm_data.data["LP4"]

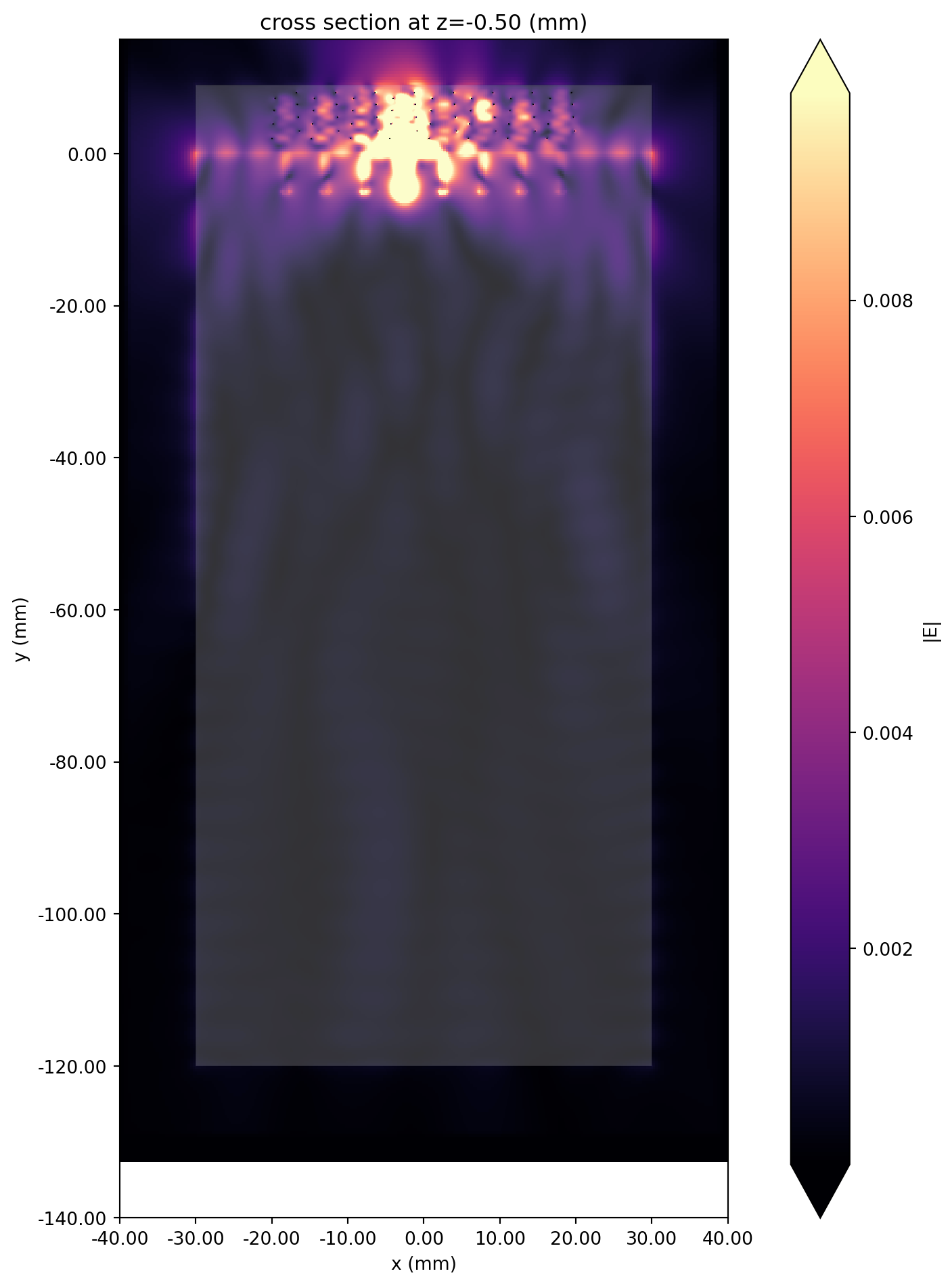

The field magnitude data at the operating frequency is plotted below.

In [23]:

fig, ax = plt.subplots(figsize=(10, 10), tight_layout=True)
sim_data.plot_field(
    "field in-plane",
    field_name="E",
    val="abs",
    scale="lin",
    f=f_target,
    ax=ax,
)
ax.set_xlim(-40 * mm, 40 * mm)
ax.set_ylim(-140 * mm, 15 * mm)
plt.show()

S-parameters

We define some convenience functions to extract the individual S-parameters from the simulation data.

In [24]:

# Calculate full S-matrix
smat = tcm_data.smatrix()

# Convenience functions to get S_ij
# Note that port_in and port_out are zero-indexed (first port is number zero)
def sparam(i, j):
    return np.conjugate(smat.data.isel(port_in=j - 1, port_out=i - 1))

def sparam_abs(i, j):
    return np.abs(sparam(i, j))

def sparam_dB(i, j):
    return 20 * np.log10(sparam_abs(i, j))

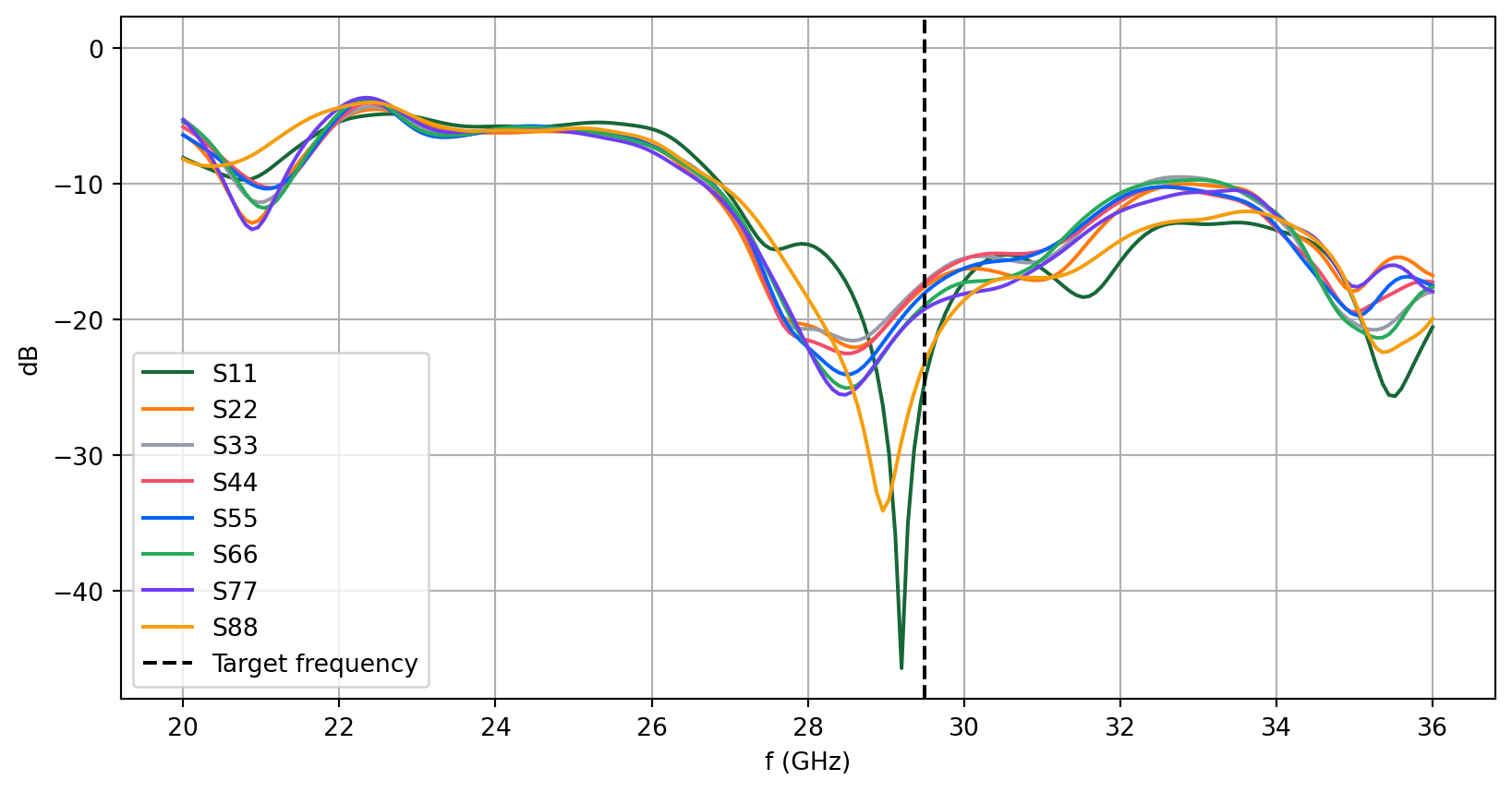

The diagonal S-parameters are plotted below. The target operating frequency is indicated with the black dashed line. All 8 antennas resonate reasonably well near the operating frequency.

In [25]:

# Plot diagonal S-parameters
fig, ax = plt.subplots(figsize=(10, 5))
for ii in range(N_ant):
    ax.plot(freqs / 1e9, sparam_dB(ii + 1, ii + 1), label=f"S{ii + 1}{ii + 1}")
ax.axline(
    (f_target / 1e9, 0), (f_target / 1e9, -30), ls="--", color="black", label="Target frequency"
)
ax.grid()
ax.legend()
ax.set_xlabel("f (GHz)")
ax.set_ylabel("dB")
plt.show()

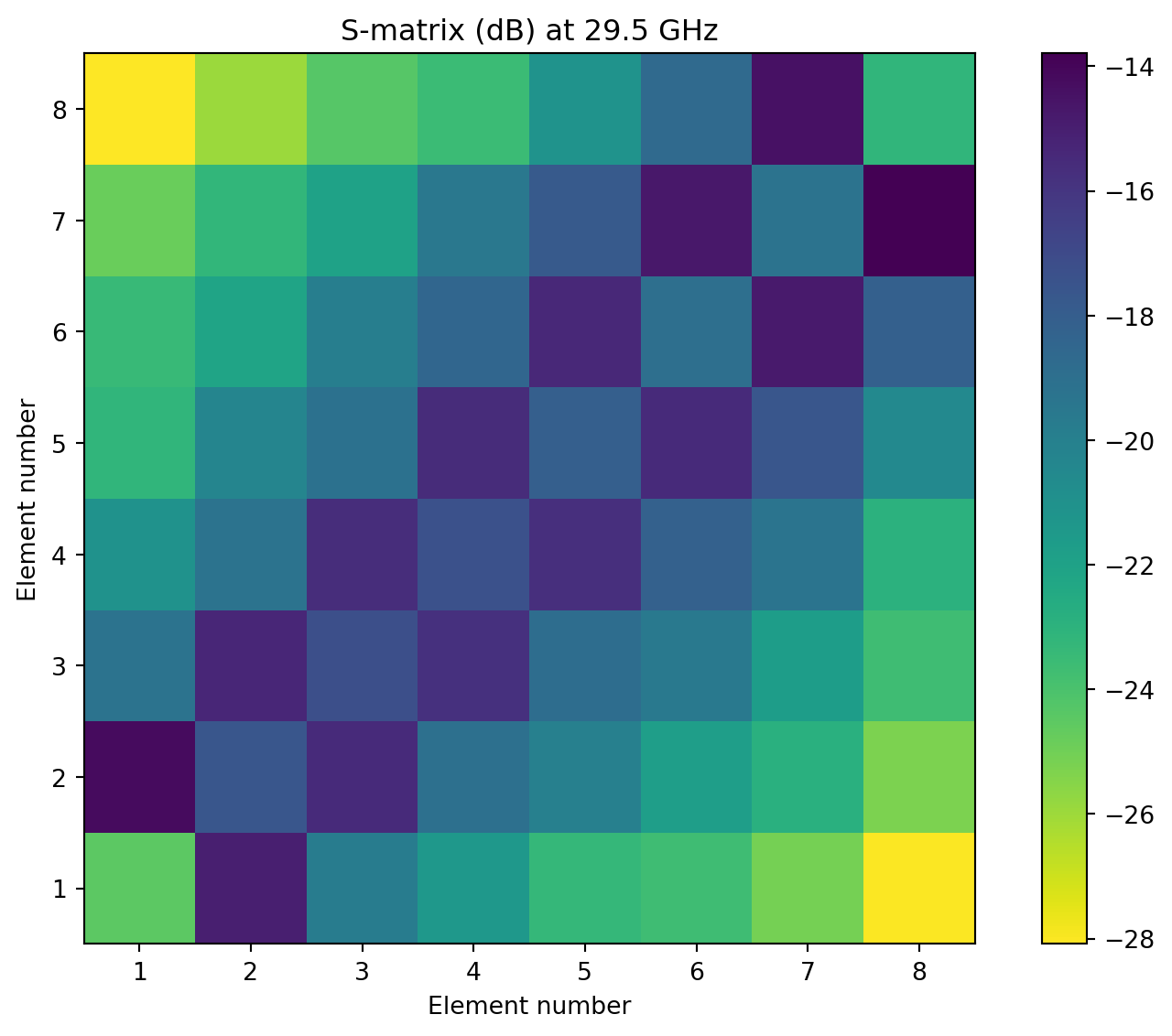

Below, we visualize the S-matrix (dB) at the target frequency. Good isolation is observed between adjacent elements (off-diagonal matrix values).

In [26]:

SdB_f_target = 20 * np.log10(np.abs(smat.data.sel(f=f_target, method="nearest")))

# 2D plot S-matrix (dB)
qq, pp = np.meshgrid(np.arange(1, 9), np.arange(1, 9))
fig, ax = plt.subplots(figsize=(8, 6), tight_layout=True)
pcm = ax.pcolormesh(qq, pp, SdB_f_target, shading="nearest", cmap="viridis_r")
cbar = fig.colorbar(pcm)
ax.set_xlabel("Element number")
ax.set_ylabel("Element number")
ax.set_title("S-matrix (dB) at 29.5 GHz")
ax.set_aspect(1)
plt.show()

Generating Different Feed Patterns

We can specify arbitrary combinations of port feed patterns using the port_amplitudes parameter of get_antenna_metrics_data(). This allows us to visualize the radiation pattern for different scan angles, as well as generate the total scan pattern.

The port_amplitudes parameter accepts a dictionary where each key corresponds to the port name, e.g. LP1, and the value is a complex number representing the port phase and amplitude. Below, we use a for loop to generate a list of feed patterns corresponding to different phase shifts between each antenna element (same amplitude).

In [27]:

# List of fractional phase shifts
target_frac = np.linspace(-1, 1, 33)

# Generate list of feed patterns
feed_patterns = []
for frac in target_frac:
    phase_shift = np.pi * frac
    feed_dict = {}
    for ii in range(N_ant):
        port_name = f"LP{ii + 1}"
        feed_phase = np.exp(1j * phase_shift * ii)
        feed_dict[port_name] = feed_phase
    feed_patterns += [feed_dict]

Using the list of different feed patterns, we can then calculate a list of AntennaMetricsData data corresponding to each feed pattern. Note that the calculation can take some time for large datasets.

In [28]:

# Generate a list of antenna metrics corresponding to each feed pattern
AM_list = [tcm_data.get_antenna_metrics_data(port_amplitudes=feed) for feed in feed_patterns]

Gain and Total Scan Pattern

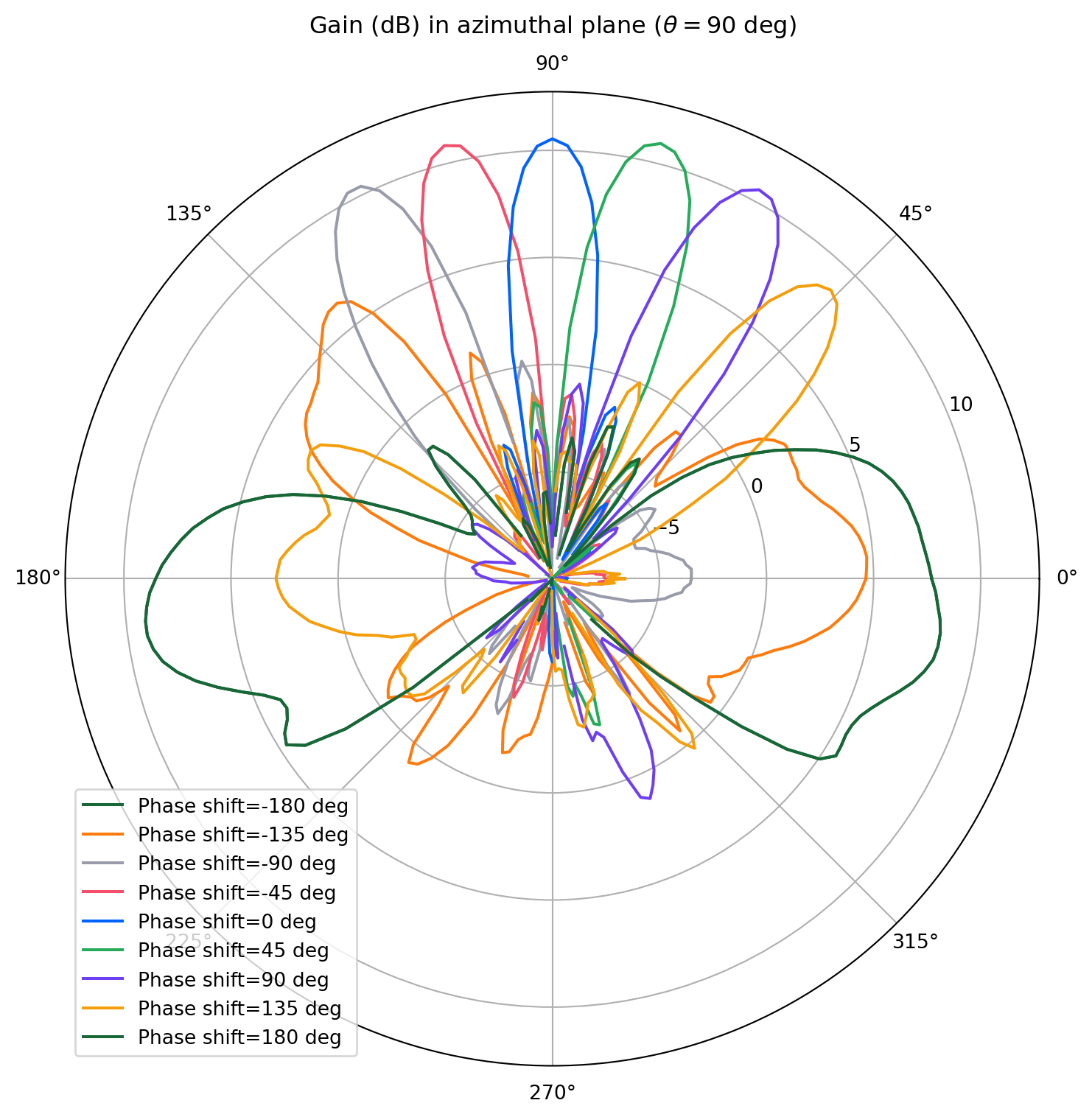

We visualize the azimuthal gain pattern in the x-y plane below. The main lobe of the array can be clearly observed to sweep from 45 degrees to 135 degrees as the phase difference between each element is changed. (For legibility reasons, only a subset of the scan patterns are shown and the plotting minimum range is set to -10 dB.)

In [29]:

# Extract gain from antenna metrics
gain_list = [am.gain for am in AM_list]

# Gain comparison plot
fig, ax = plt.subplots(figsize=(8, 8), tight_layout=True, subplot_kw={"projection": "polar"})

for ii, gain in enumerate(gain_list[::4]):
    gplot = gain.sel(theta=np.pi / 2, method="nearest").squeeze()
    ax.plot(phi, 10 * np.log10(gplot), label=f"Phase shift={target_frac[4 * ii] * 180:.0f} deg")

ax.set_title("Gain (dB) in azimuthal plane ($\\theta=90$ deg)", pad=30)
ax.set_rmin(-10)
ax.legend()
plt.show()

Using the LobeMeasurer utility, we can obtain metrics for the main and side lobes, such as direction, magnitude, and -3 dB beamwidth. Below, we measure the main lobe and the two adjacent side lobes for each feed pattern and record their properties in a pandas.DataFrame table.

In [30]:

# Get main and side lobe characteristics for each feed pattern
df_list = []
label_list = []
for ii, gain in enumerate(gain_list):
    # Define string label for each feed pattern
    label_list += [f"{target_frac[ii] * 180:.0f}"]
    # Use rf.LobeMeasurer to get lobe metrics
    data = gain.sel(theta=np.pi / 2, method="nearest").squeeze()
    lm = rf.LobeMeasurer(angle=phi, radiation_pattern=data)
    # Pick out main lobe and two adjacent side lobes
    max_index = lm.lobe_measures["magnitude"].idxmax()
    lobe_data = lm.lobe_measures.iloc[max_index - 1 : max_index + 2].reset_index()[
        ["direction", "magnitude", "beamwidth"]
    ]
    # Append to lobe metrics to list
    df_list += [lobe_data]

In [31]:

# Concatenate individual tables into one big table
lobe_data_table = pd.concat(df_list, keys=label_list)

# Re-arrange columns and convert units
lobe_data_table = lobe_data_table.unstack()
lobe_data_table.index.name = "Phase shift (deg)"
lobe_data_table["direction"] = lobe_data_table["direction"] / np.pi * 180
lobe_data_table["beamwidth"] = lobe_data_table["beamwidth"] / np.pi * 180
lobe_data_table = lobe_data_table.rename(
    columns={
        "direction": "Direction (deg)",
        "magnitude": "Mag.",
        "beamwidth": "-3dB Beamwidth (deg)",
    },
    level=0,
)

# Regroup columns by main/side lobes
lobe_data_table = lobe_data_table.sort_index(axis=1, level=1, sort_remaining=False).reorder_levels(
    [1, 0], axis=1
)
# Relabel columns
lobe_data_table = lobe_data_table.rename(
    columns={0: "Side Lobe 1", 1: "Main Lobe", 2: "Side Lobe 2"}, level=0
)

# Display table
lobe_data_table

	Side Lobe 1			Main Lobe			Side Lobe 2
	Direction (deg)	Mag.	-3dB Beamwidth (deg)	Direction (deg)	Mag.	-3dB Beamwidth (deg)	Direction (deg)	Mag.	-3dB Beamwidth (deg)
Phase shift (deg)
-180	134.0	0.682953	12.720545	186.0	8.120710	29.549144	212.0	2.906620	55.812405
-169	308.0	0.087422	161.611726	354.0	8.414495	39.344977	NaN	NaN	NaN
-158	308.0	0.231002	121.501361	358.0	8.472639	35.043950	NaN	NaN	NaN
-135	110.0	1.321349	7.257779	128.0	4.288553	27.351207	182.0	0.078463	327.648428
-124	108.0	1.263536	7.465482	126.0	6.796161	19.413966	174.0	0.170118	89.604435
-112	104.0	1.261027	6.951683	124.0	8.492721	17.381187	186.0	0.115971	29.037099
-101	102.0	1.169070	7.067932	120.0	9.876102	15.379162	162.0	0.046030	15.425412
-90	98.0	1.060612	6.895332	118.0	10.930524	14.231357	156.0	0.088040	17.377893
-79	94.0	0.926611	7.255159	114.0	11.732276	13.397253	148.0	0.173131	15.853355
-68	92.0	0.876795	7.460206	110.0	11.925904	13.013011	144.0	0.280229	15.793165
-56	88.0	0.807721	7.504391	108.0	11.821983	12.883920	138.0	0.275909	15.972384
-45	84.0	0.736229	8.261822	104.0	12.136929	12.238208	128.0	0.192068	16.410444
-34	80.0	0.731166	8.984163	100.0	11.801035	12.085809	122.0	0.246953	9.968147
-22	78.0	0.767672	8.780864	98.0	10.988288	12.519639	118.0	0.327703	9.132031
-11	74.0	0.795083	8.349923	94.0	11.001050	12.307302	114.0	0.376754	8.910138
0	70.0	0.710948	9.215007	90.0	11.319326	12.060534	110.0	0.460517	8.490000
11	66.0	0.681140	8.799981	86.0	11.165157	12.648047	106.0	0.585586	8.615843
22	62.0	0.609008	9.290056	82.0	11.367168	12.863869	102.0	0.682140	8.196328
34	58.0	0.569061	9.171254	80.0	12.065424	12.738977	98.0	0.657080	8.245330
45	54.0	0.469909	9.532556	76.0	12.422077	13.148237	96.0	0.670646	8.052319
56	52.0	0.360117	9.986502	72.0	12.586578	13.362931	92.0	0.765948	7.682423
68	46.0	0.263818	67.729186	68.0	12.395055	13.514582	88.0	0.830143	7.838846
79	42.0	0.217301	95.463455	64.0	11.890734	13.759392	86.0	0.844440	7.847450
90	38.0	0.242401	70.923779	62.0	11.388302	13.852241	82.0	0.826120	8.428515
101	34.0	0.318174	71.909950	58.0	10.464647	13.989622	78.0	0.824247	8.588184
124	18.0	0.187895	112.807648	50.0	8.431613	14.197227	70.0	0.750322	9.359010
135	4.0	0.206699	29.442390	46.0	7.463610	14.481403	66.0	1.005146	8.108760
158	150.0	0.868708	70.530279	184.0	8.047600	28.680106	210.0	1.147629	68.534976
169	148.0	0.363946	92.392439	184.0	9.071629	29.196349	210.0	2.017853	56.078505
180	134.0	0.682953	12.720545	186.0	8.120710	29.549144	212.0	2.906620	55.812405

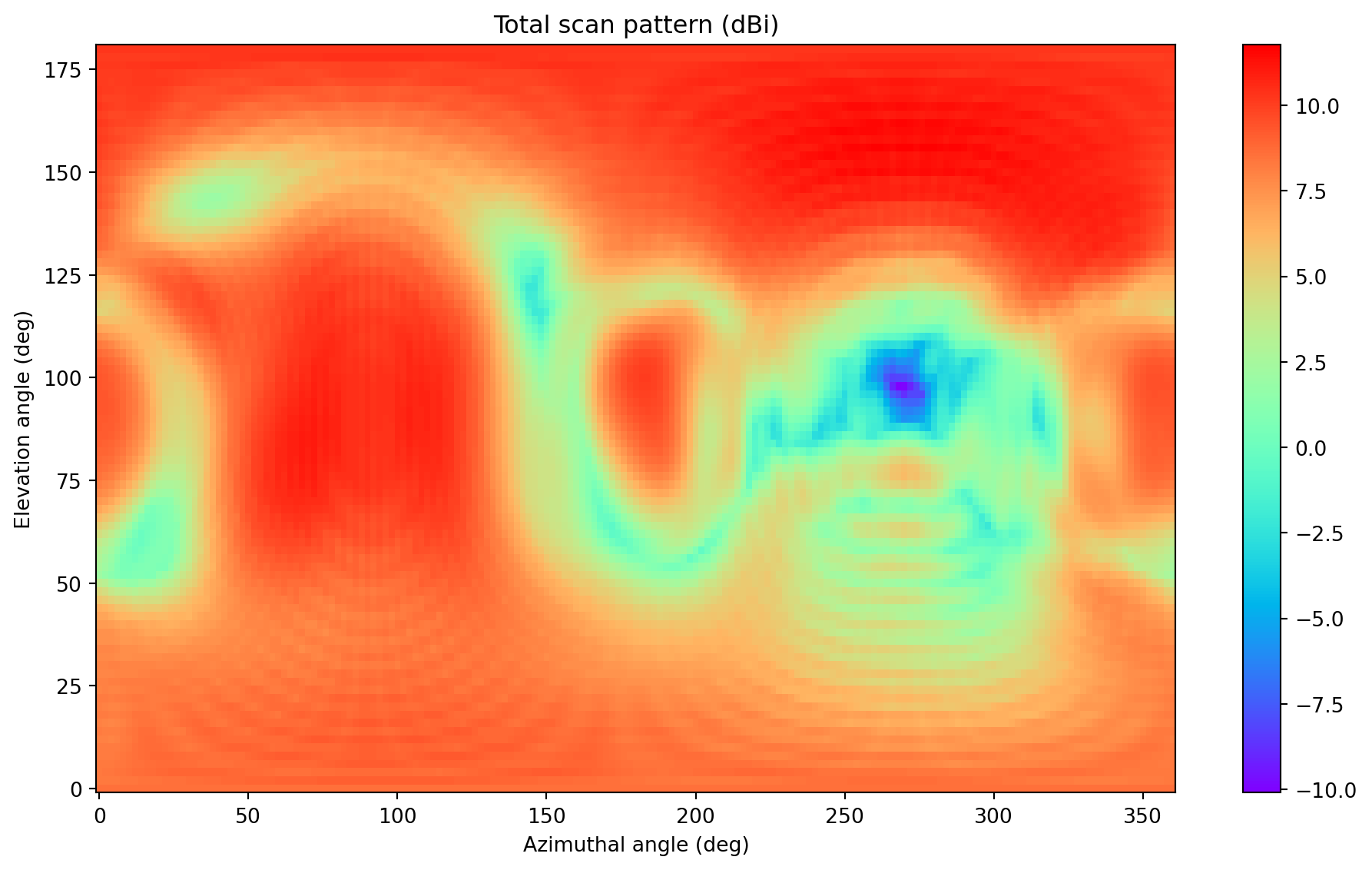

We can also combine all the gain patterns using np.max() to generate the total scan pattern. The total scan pattern shows the maximum achievable gain for the whole array at a given angle coordinate.

In [32]:

# Calculate total scan pattern
full_gain_list = 10 * np.log10(np.abs(np.array(gain_list))).squeeze()
scan_max = np.max(full_gain_list, axis=0)  # max gain at given angle

# 2D plot of total scan pattern
qq, pp = np.meshgrid(phi / np.pi * 180, theta / np.pi * 180)
fig, ax = plt.subplots(figsize=(10, 6), tight_layout=True)
pcm = ax.pcolormesh(qq, pp, scan_max, shading="nearest", cmap="rainbow")
cbat = fig.colorbar(pcm)
ax.set_xlabel("Azimuthal angle (deg)")
ax.set_ylabel("Elevation angle (deg)")
ax.set_title("Total scan pattern (dBi)")
plt.show()

Axial Ratio

We calculate the axial ratio (AR) of the main lobe in the azimuthal (x-y) plane for each scan angle. We will use a subset of the scan pattern that covers the 45 to 135 degree arc. First, we locate the main lobe angle.

In [33]:

# Calculate main lobe azimuthal angle for each scan pattern
main_lobe_angles = []
for gain in gain_list[5:29]:
    lobe_angle = phi[np.argmax(gain.sel(theta=np.pi / 2, method="nearest").squeeze().data)]
    main_lobe_angles += [lobe_angle]
main_lobe_angles = np.array(main_lobe_angles)

Then, we extract the axial ratio at each scan angle.

In [34]:

# Extract AR for phi = main lobe angle, theta = 90 degrees
AR_list = [
    am.axial_ratio.sel(theta=np.pi / 2, phi=main_lobe_angles[ii], method="nearest").squeeze()
    for ii, am in enumerate(AM_list[5:29])
]

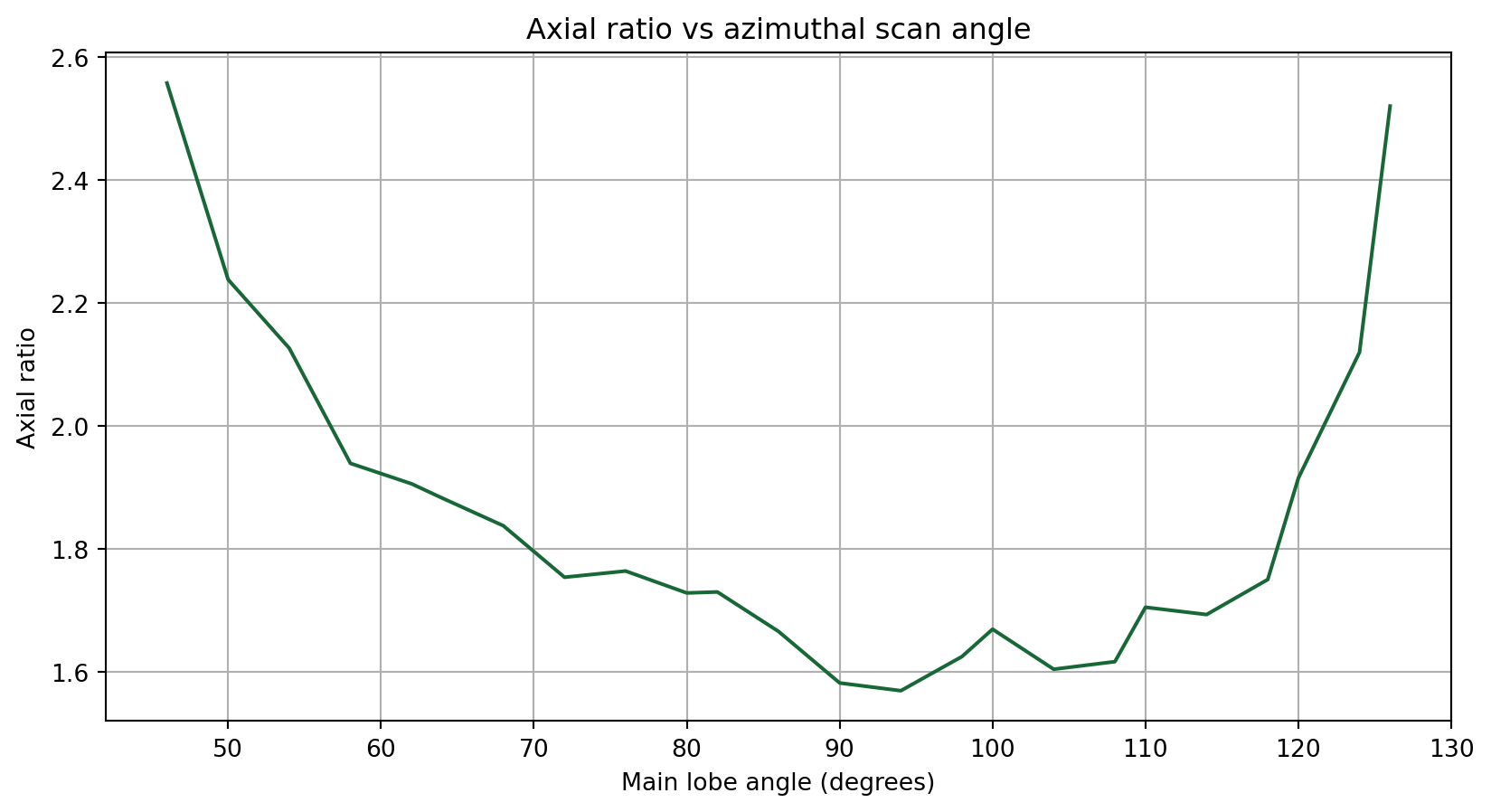

The AR is plotted against the scan angle below.

In [35]:

# Plot AR vs main lobe angle
fig, ax = plt.subplots(figsize=(10, 5))
ax.plot(main_lobe_angles / np.pi * 180, AR_list)
ax.grid()
ax.set_title("Axial ratio vs azimuthal scan angle")
ax.set_xlabel("Main lobe angle (degrees)")
ax.set_ylabel("Axial ratio")
plt.show()

Reference

[1] Igor Syrytsin, Zhang Shuai, and Gert Pedersen. “Circularly polarized planar helix phased antenna array for 5G mobile terminals.” In 2017 International Conference on Electromagnetics in Advanced Applications (ICEAA), pp. 1105-1108. IEEE, 2017.
